NSN 5975-01-074-4497 EYS3T, EYS-3-T, 01-074-4497
Product Details | ELECTRICAL CONDUIT SEALING FITTING
5975-01-074-4497 An item of metallic composition with a chamber for sealing compound and two hubs to accommodate electrical conduits of specified sizes. This item is designed with a filler hole and a removable screw plug to enable the pouring of sealing compound into the chamber for the purpose of preventing the passage of explosive gases through a conduit run. The item is primarily designed for use in hazardous locations and may be designed for vertical use, horizontal use, or both. For items which permit the connection or termination of wires, see POTHEAD. See also COUPLING, ELECTRICAL CONDUIT.
Part Alternates: EYS3T, EYS-3-T, 5975-01-074-4497, 01-074-4497, 5975010744497, 010744497
Electrical and Electronic Equipment Components | Electrical Hardware and Supplies
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 31 MAR 1979 | 01-074-4497 | 06936 ( SEALING FITTING, ELECTRICAL CONDUIT ) |

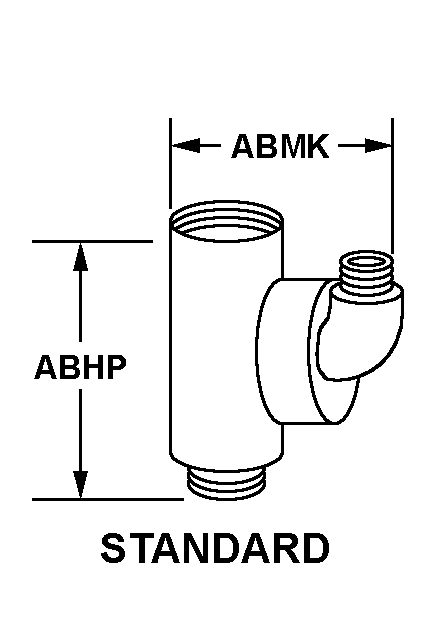

Drawings & Photos | NSN 5975-01-074-4497
Demand History | NSN 5975-01-074-4497
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| EYS3T | 2007-07-186 | 1 | United States |
Cross Reference | NSN 5975-01-074-4497
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| EYS-3-T | 75282 | KILLARK ELECTRIC MFG CO |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5975-01-074-4497
Related Products | NSN 5975-01-074-4497
Technical Data | NSN 5975-01-074-4497
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | A50 STANDARD |
| OVERALL LENGTH | 5.125 INCHES NOMINAL |
| OVERALL WIDTH | 4.000 INCHES NOMINAL |
| ITEM ACCOMMODATED TRADE SIZE | 1.000 INCHES FIRST END 1.000 INCHES SECOND END |
| MATERIAL | ALUMINUM-COPPER FREE |
| CONDUIT TYPE ACCOMMODATED | RIGID METALLIC THICKWALL FIRST END RIGID METALLIC THICKWALL SECOND END |
| END TYPE | INTERNAL THREAD FIRST END EXTERNAL THREAD SECOND END |
| FILLER HEAD OPENING TYPE | PIPE PLUG |
| HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION | EXPLOSION PROOF NEC CL.I, GP.CD;CL.II, GP.EFG;CL.III |
| FURNISHED ITEMS | NIPPLE |
| III END ITEM IDENTIFICATION | SUPPORT EQUIPMENT FOR A-10 AND C-5 AIRCRAFT |
Restrictions/Controls & Freight Information | NSN 5975-01-074-4497
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194120 | WASHERS/GASKETS/PCKG DVCS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | CX | Defense Supply Center Richmond Richmond, VA 23297-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
