NSN 5975-01-067-3549 A91D93801, A91D9380-1, 01-067-3549
Product Details | ELECTRICAL EQUIPMENT CABINET
5975-01-067-3549 An enclosure generally fabricated of sheet material designed to accommodate (but does not include) electrical/electronic equipment so that the equipment may be operated without removal. It may include wires, cables, terminal boards, connectors, etc., required for equipment operation. For items designed to accommodate equipment mounted on panels, see RACK, ELECTRICAL EQUIPMENT. See also CASE (2) (as modified). Excludes INTERCONNECTING BOX; INTERCONNECTING CABINET; JUNCTION BOX; and TERMINAL BOX.
Part Alternates: A91D93801, A91D9380-1, 5975-01-067-3549, 01-067-3549, 5975010673549, 010673549
Electrical and Electronic Equipment Components | Electrical Hardware and Supplies
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 28 OCT 1978 | 01-067-3549 | 06352 ( CABINET, ELECTRICAL EQUIPMENT ) |
Drawings & Photos | NSN 5975-01-067-3549
Cross Reference | NSN 5975-01-067-3549
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| A91D9380-1 | 92400 | TELEX COMPUTER PRODUCTS INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5975-01-067-3549
Technical Data | NSN 5975-01-067-3549
| Characteristic | Specifications |
|---|---|

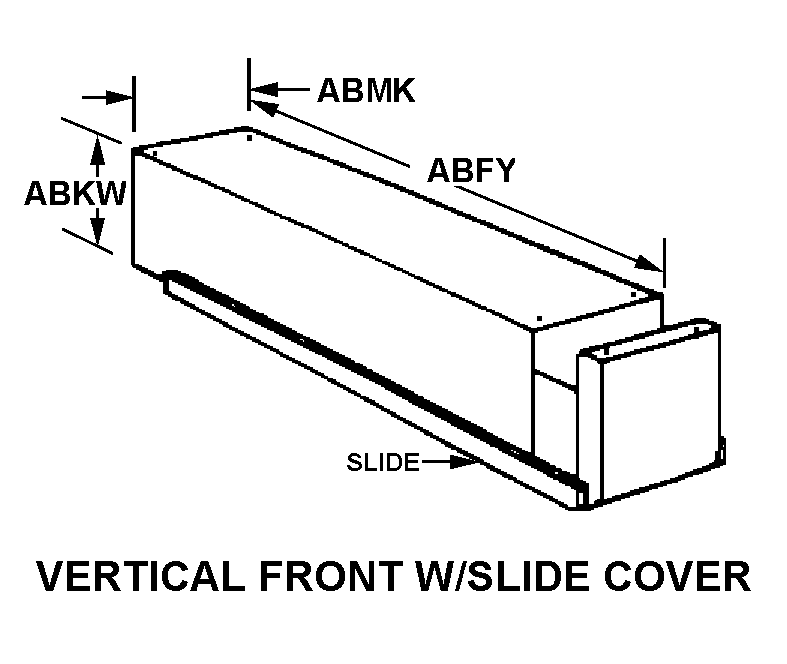

| STYLE DESIGNATOR | B10 VERTICAL FRONT W/SLIDE COVER |
| MOUNTING PROVISION | BRACKET |
| VENTILATION DESIGN TYPE | PERFORATED AND SLOTTED |
| MANUFACTURERS CODE | 92400 |
| DESIGN CONTROL REFERENCE | A91D9380-1 |
Restrictions/Controls & Freight Information | NSN 5975-01-067-3549
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061110 | ELECTRICAL:CABINET,FRAMES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | HD | Naval Inventory Control Point Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5975-01-067-3549
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 3B | Navy-owned stocks of field level repairable DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Reparability | D | Field Level Reparables |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
