NSN 5975-01-065-9709 72A5032A00024, 72A5032A0002-4, 01-065-9709
Product Details | CONDUIT OUTLET
5975-01-065-9709 An item designed to be used in a conduit system for the purpose of providing outlets or attachments for electrical wiring devices and/or designed to provide access and facilitate installment of wires. It may or may not include a cover(s). It does not include wiring devices. Excludes ENTRANCE ELBOW, ELECTRICAL. See also JUNCTION BOX.
Part Alternates: 72A5032A00024, 72A5032A0002-4, 5975-01-065-9709, 01-065-9709, 5975010659709, 010659709
Electrical and Electronic Equipment Components | Electrical Hardware and Supplies
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 28 SEP 1978 | 01-065-9709 | 06945 ( CONDUIT OUTLET ) |
Drawings & Photos | NSN 5975-01-065-9709
Cross Reference | NSN 5975-01-065-9709
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 72A5032A0002-4 | 01365 | MARINE CORPS LOGISTICS COMMAND TECHNICAL DATA REPOSITORY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5975-01-065-9709
Technical Data | NSN 5975-01-065-9709
| Characteristic | Specifications |
|---|---|

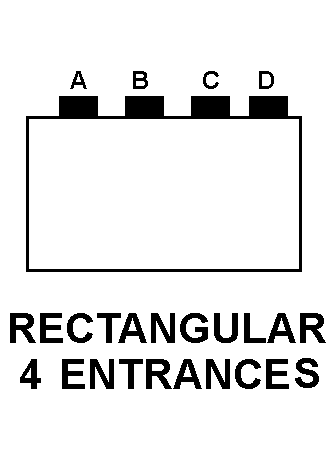

| STYLE DESIGNATOR | B32 RECTANGULAR 4 ENTRANCES |
| WIDTH | 4.510 INCHES NOMINAL |
| LENGTH | 7.390 INCHES NOMINAL |
| DEPTH | 2.062 INCHES NOMINAL |
| CONDUIT ENTRANCE TYPE | BOX BODY DRILLED ALL ENTRANCE |
| CONDUIT TYPE ACCOMMODATED | FLEXIBLE NONMETALLIC ALL ENTRANCE |
| CONDUIT TRADE SIZE ACCOMMODATED | 0.875 INCHES ALL ENTRANCE |
| MATERIAL | ALUMINUM, DIE CAST OVERALL |
| SURFACE TREATMENT | PAINT OVERALL |
| WIRING DEVICE GANG QUANTITY | 1 |
| COVER MOUNTING SURFACE TYPE | GROOVED |
| HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION | WEATHERPROOF |
| MANUFACTURERS CODE | 01365 |
| DESIGN CONTROL REFERENCE | 72A5032A0002-4 |
Restrictions/Controls & Freight Information | NSN 5975-01-065-9709
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 063160 | SWITCH BOXES/ELEC ENCLOSURES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | PA | Marine Corps Logistics Base Albany, GA 31704-1128 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
