NSN 5975-01-063-8745 0336710004, 033671-0004, 01-063-8745
Product Details | RIGID METAL CONDUIT
5975-01-063-8745 A conduit of one-piece tubular construction, designed as thin wall type (EMT) and thick wall type. The items may be threaded and furnished with a COUPLING, ELECTRICAL CONDUIT and/or thread protection. See also CONDUIT ASSEMBLY,METAL, RIGID. Excludes conduit like items that are designed for other than electrical applications.
Part Alternates: 0336710004, 033671-0004, 5975-01-063-8745, 01-063-8745, 5975010638745, 010638745
Electrical and Electronic Equipment Components | Electrical Hardware and Supplies
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 13 AUG 1978 | 01-063-8745 | 18707 ( CONDUIT, METAL, RIGID ) |

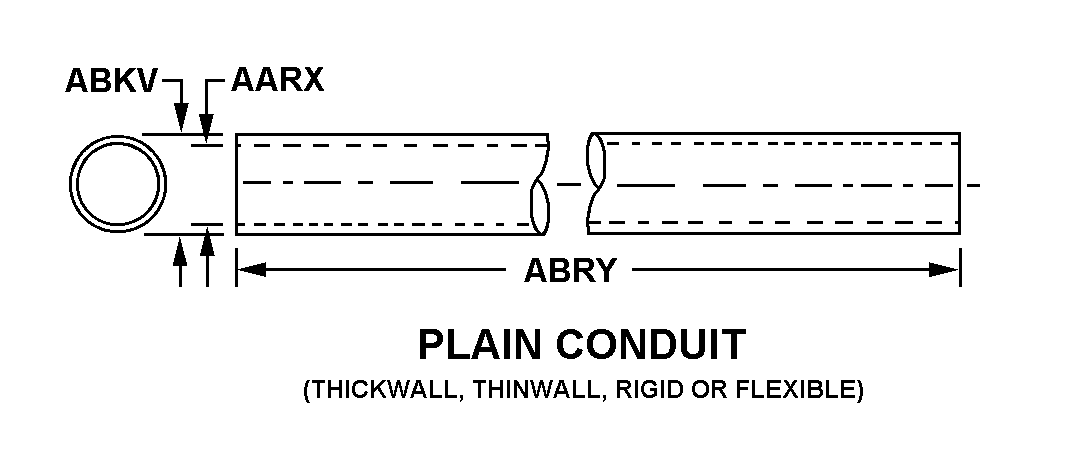

Drawings & Photos | NSN 5975-01-063-8745
Cross Reference | NSN 5975-01-063-8745
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 033671-0004 | 65597 | THALES DEFENSE & SECURITY, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5975-01-063-8745
Technical Data | NSN 5975-01-063-8745
| Characteristic | Specifications |
|---|---|
| STRUCTURAL DESIGN | THICKWALL |
| STYLE DESIGNATOR | B1 PLAIN CONDUIT |
| OUTSIDE DIAMETER | 0.750 INCHES NOMINAL |
| LENGTH | 29.500 INCHES MINIMUM AND 30.500 INCHES MAXIMUM |
| THREAD SERIES DESIGNATOR | NPT 1ST END |
| NOMINAL THREAD SIZE | 0.750 INCHES 1ST END |
| THREAD LENGTH | 0.750 INCHES NOMINAL 1ST END |
| MANUFACTURERS CODE | 65597 |
| DESIGN CONTROL REFERENCE | 033671-0004 |
Restrictions/Controls & Freight Information | NSN 5975-01-063-8745
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 050925 | CONDUIT ELECTRICAL FLEXIBLE |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | TA | Sacramento Air Logistics Center McClellan AFB, CA 95652-5609 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5975-01-063-8745
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
