NSN 5975-01-050-5711 C49317, 01-050-5711, 010505711
Product Details | CONDUIT OUTLET COVER
5975-01-050-5711 An item of any material, with or without threads, designed to mate with a CONDUIT OUTLET or a SEALING FITTING, ELECTRICAL CONDUIT. It may be designed as a removable side plate cover with or without hubs. It may have provisions for draining or venting. It may be designed for the insertion and/or mounting of electrical devices, such as switches, receptacle connectors, and indicator light lenses. It may include mechanisms for the external operation of switches but does not include the wiring devices. For items designed to mount directly on a bracket or an electrical current carrying wiring device, see PLATE, WALL, ELECTRICAL. See also COVER, JUNCTION BOX.
Part Alternates: C49317, 5975-01-050-5711, 01-050-5711, 5975010505711, 010505711
Electrical and Electronic Equipment Components | Electrical Hardware and Supplies
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
59 | 10 NOV 1977 | 01-050-5711 | 19945 ( COVER, CONDUIT OUTLET ) |
Cross Reference | NSN 5975-01-050-5711
Part Number | Cage Code | Manufacturer |
---|---|---|
C49317 | 05825 | O T S I |
Request a Quote
What Our Customers Say
Compare
Related Products | NSN 5975-01-050-5711
Technical Data | NSN 5975-01-050-5711
Characteristic | Specifications |
---|---|

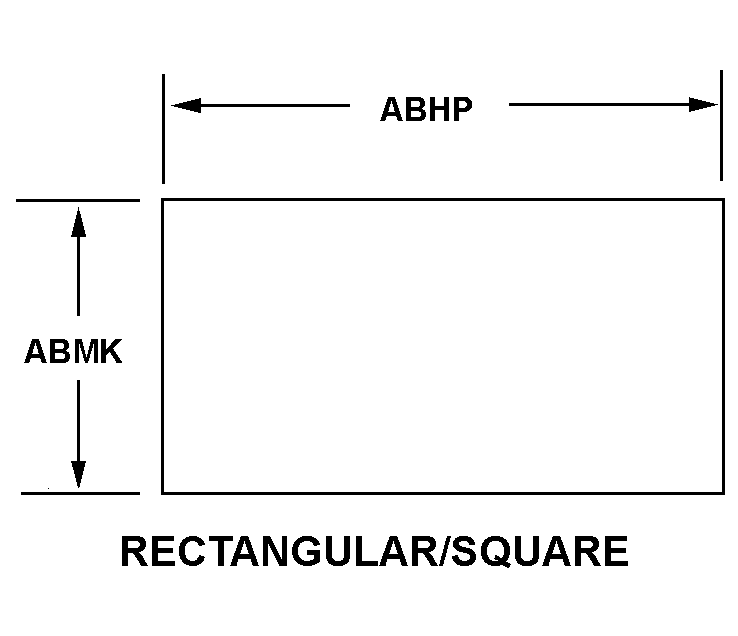

STYLE DESIGNATOR | AND RECTANGULAR/SQUARE |
OVERALL LENGTH | 5.250 INCHES NOMINAL |
OVERALL WIDTH | 3.250 INCHES NOMINAL |
MATERIAL | PAPER BASE LAMINATE OVERALL |
SURFACE TREATMENT | PAINT,MIL-P-22808 OVERALL |
COVER MOUNTING METHOD | HOLE |
COVER MOUNTING HOLE QUANTITY | 2 |

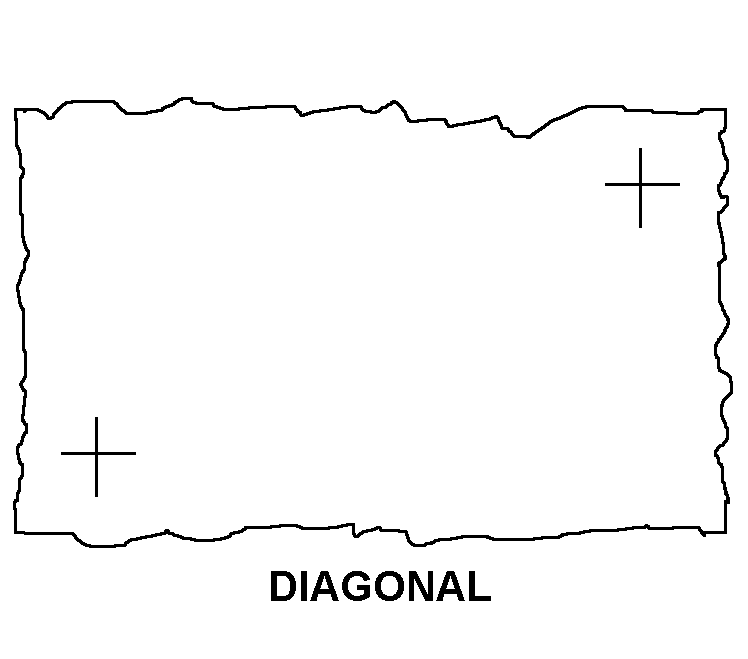

COVER MOUNTING HOLE ARRANGEMENT STYLE | F2 DIAGONAL |
COVER MOUNTING SURFACE TYPE | FLAT |

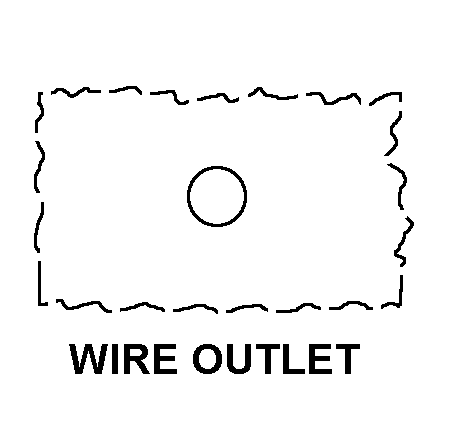

FUNCTIONAL COVER STYLE | E19 WIRE OUTLET |
HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION | NOT RATED |
MANUFACTURERS CODE | 05825 |
DESIGN CONTROL REFERENCE | C49317 |
Restrictions/Controls & Freight Information | NSN 5975-01-050-5711
Category | Code | Description |
---|---|---|
Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
Precious Metals Indicator Code: | U | Precious metal type is unknown |
Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
Category | Code | Description |
---|---|---|
No Freight Information |
Management | NSN 5975-01-050-5711
Category | Code | Description |
---|---|---|
Cognizance Codes | 9G | Navy-owned stocks of defense general material Naval Inventory Control Point, Mechanicsburg |
Source of Supply | S9G | Defense Supply Center Richmond Richmond, VA 23297 |
Agency | DN | Department of the Navy |
Service Organization | N | U.S. Navy |
Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
Controlled Item Code | U | UNCLASSIFIED |
Shelf Life Code | 0 | Nondeteriorative |
