NSN 5975-01-033-9757 M24705/1CS1A, M247051CS1A, STEEL COMPRESSION PLATE
Product Details | TRANSIT COMPRESSION PLATE
5975-01-033-9757
Part Alternates: M24705/1CS1A, M247051CS1A, STEEL COMPRESSION PLATE, STEELCOMPRESSIONPLATE, MILP24705, MIL-P-24705, 5975-01-033-9757, 01-033-9757, 5975010339757, 010339757
Electrical and Electronic Equipment Components | Electrical Hardware and Supplies
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 15 JAN 1977 | 01-033-9757 | 77777 ( ) |

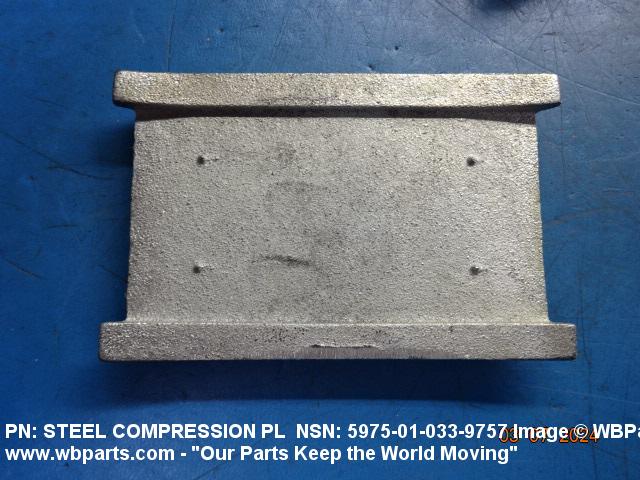

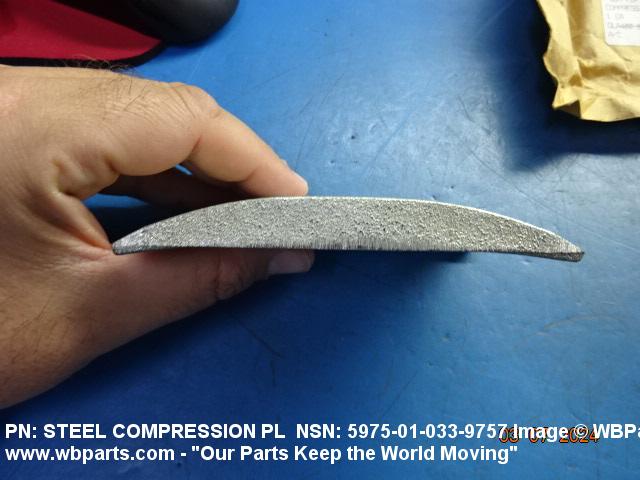

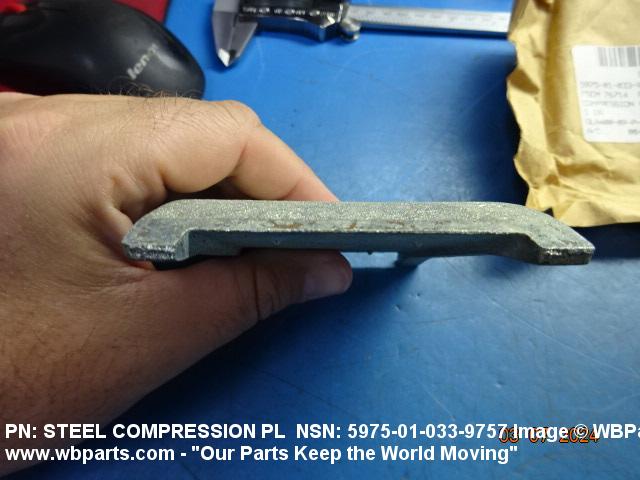

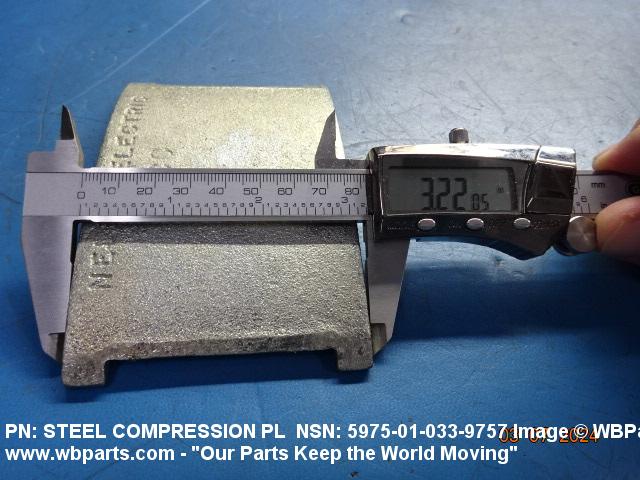

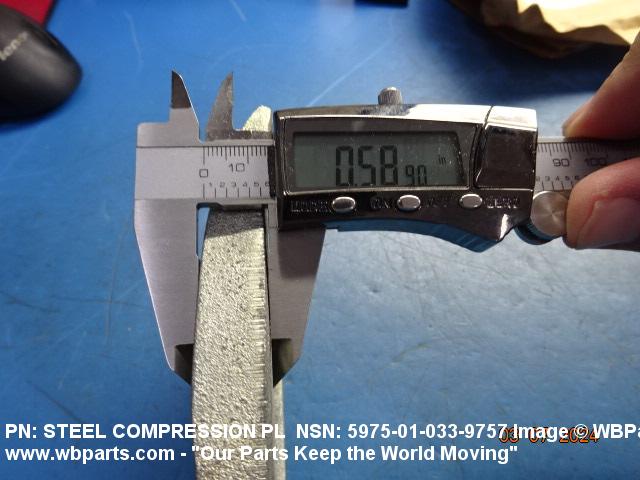

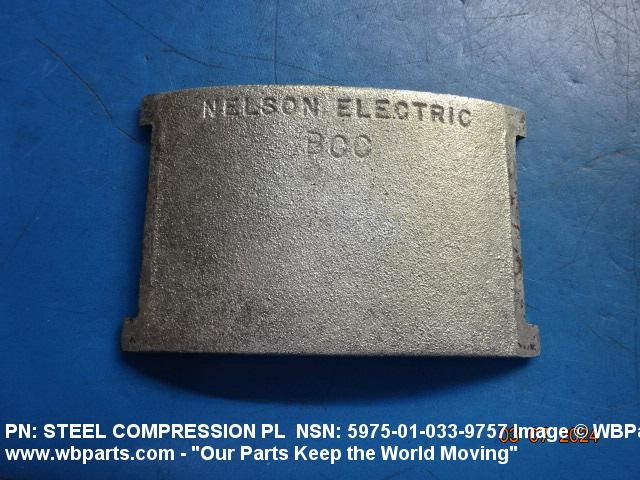

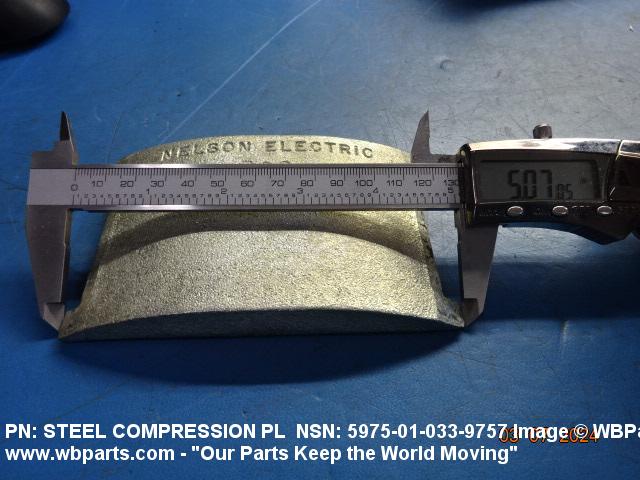

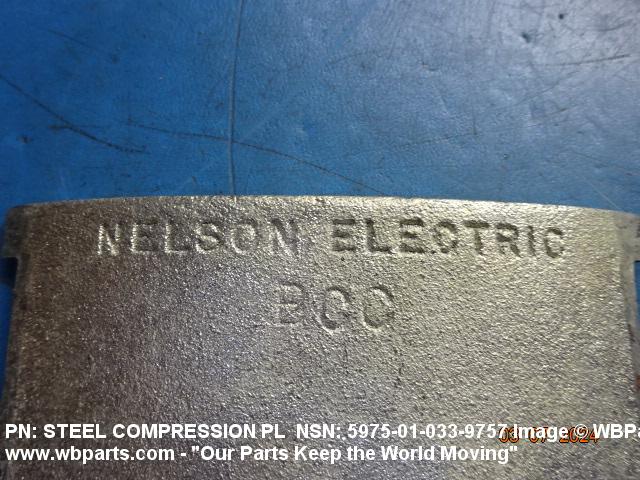

Drawings & Photos | NSN 5975-01-033-9757
Demand History | NSN 5975-01-033-9757
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5975-01-033-9757 | 2024-10-290 | 91 | DIBBS |
| 5975-01-033-9757 | 2024-08-219 | 93 | DIBBS |
| 5975-01-033-9757 | 2024-06-172 | 3 | DIBBS |
| 5975-01-033-9757 | 2024-06-154 | 3 | DIBBS |
| 5975-01-033-9757 | 2024-05-149 | 18 | DIBBS |
| 5975-01-033-9757 | 2024-05-135 | 2 | DIBBS |
| 5975-01-033-9757 | 2024-02-58 | 2 | United States |
| 5975-01-033-9757 | 2024-01-16 | 10 | us |
| 5975-01-033-9757 | 2023-12-341 | 50 | United States |
| 5975-01-033-9757 | 2022-09-263 | 1000 | DIBBS |
| 5975-01-033-9757 | 2022-09-261 | 636 | DIBBS |
| 5975-01-033-9757 | 2022-09-244 | 54 | DIBBS |
| 5975-01-033-9757 | 2022-07-198 | 187 | DIBBS |
| 5975-01-033-9757 | 2022-07-186 | 418 | DIBBS |
| 5975-01-033-9757 | 2021-06-171 | 100 | DIBBS |
| 5975-01-033-9757 | 2021-03-80 | 32 | DIBBS |
| 5975-01-033-9757 | 2020-11-328 | 32 | DIBBS |
| 5975-01-033-9757 | 2017-05-123 | 173 | DIBBS |
| 5975-01-033-9757 | 2016-06-181 | 102 | DIBBS |
| 5975-01-033-9757 | 2010-05-144 | 561 | DIBBS |
| 5975-01-033-9757 | 2010-05-121 | 200 | DIBBS |
| 5975-01-033-9757 | 2010-04-97 | 229 | DIBBS |
Cross Reference | NSN 5975-01-033-9757
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| M24705/1CS1A | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-P-24705 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| STEEL COMPRESSION PLATE | 58475 | WESTWOOD CORPORATION DBA NMP DIVISION |
| STEEL COMPRESSION PLATE | 76714 | O-Z/GEDNEY CO NELSON FIRESTOP PRODUCTS DIV A UNIT OF GENERAL |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5975-01-033-9757
Related Products | NSN 5975-01-033-9757
Technical Data | NSN 5975-01-033-9757
| Characteristic | Specifications |
|---|---|
| GENERAL CHARACTERISTICS ITEM DESCRIPTION | STEEL,SEATS AND COMPRESSES THE INSERT BLOCKS SO THAT THE END PACKING CAN BE INSERTED IN THE TRANSIT FRAME |
| III STORAGE FACILITY | PREFERRED GROUND LEVEL UNHEATED WAREHOUSE GENERAL PURPOSE AND ALTERNATE DOCK LEVEL UNHEATED WAREHOUSE GENERAL PURPOSE |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-P-24705 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M24705/1CS1A |
Restrictions/Controls & Freight Information | NSN 5975-01-033-9757
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI SUB 9 |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | CX | Defense Supply Center Richmond Richmond, VA 23297-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5975-01-033-9757
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
