NSN 5975-01-032-9705 2596790, 01-032-9705, 010329705
Product Details | ELECTRICAL WALL PLATE
5975-01-032-9705 An item designed to mount directly on a bracket or an electrical current carrying wiring device(s) such as switch(es) or outlet(s) (receptacle). The bracket(s) or electrical current carrying device is mounted in a JUNCTION BOX. For trade designated items designed to be attached directly on or through a bracket or electrical wiring device to a CONDUIT OUTLET, see COVER, CONDUIT OUTLET. For items designed for mounting directly on a JUNCTION BOX, see COVER, JUNCTION BOX.
Part Alternates: 2596790, 5975-01-032-9705, 01-032-9705, 5975010329705, 010329705
Electrical and Electronic Equipment Components | Electrical Hardware and Supplies
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 24 DEC 1976 | 01-032-9705 | 07716 ( PLATE, WALL, ELECTRICAL ) |
Drawings & Photos | NSN 5975-01-032-9705
Cross Reference | NSN 5975-01-032-9705
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2596790 | 30003 | NAVAL AIR SYSTEMS COMMAND |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5975-01-032-9705
Technical Data | NSN 5975-01-032-9705
| Characteristic | Specifications |
|---|---|
| UNIT TYPE | TOGGLE SWITCH |
| MATERIAL | CORROSION RESISTANT STEEL,AISI TYPE 301,1/2 HARD |
| MATERIAL THICKNESS | 0.060 INCHES NOMINAL |
| SURFACE TREATMENT | PASSIVATED, QQ-P-35 |
| COLOR | ANY ACCEPTABLE |
| GANG QUANTITY | 1 |
| OPENING QUANTITY | 1 |

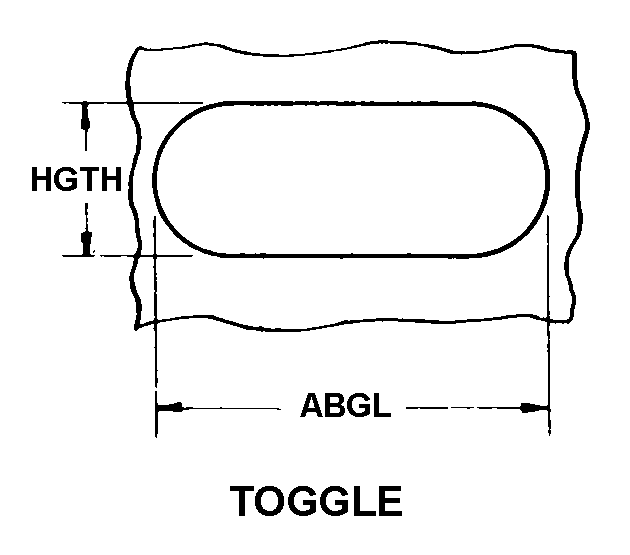

| OPENING STYLE DESIGNATOR | 9 TOGGLE |
| WIDTH | 0.937 INCHES NOMINAL |
| HEIGHT | 0.375 INCHES NOMINAL |
| INSULATING ADAPTER | NOT INCLUDED |
| COVER | NOT PROVIDED |
| LENGTH | 3.000 INCHES |
| WIDTH | 1.000 INCHES |
| MOUNTING HOLE QUANTITY | 2 |
| MANUFACTURERS CODE | 30003 |
| DESIGN CONTROL REFERENCE | 2596790 |
Restrictions/Controls & Freight Information | NSN 5975-01-032-9705
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062680 | PLATES SWITCH/OUTLET |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | HD | Naval Inventory Control Point Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5975-01-032-9705
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
