NSN 5975-00-982-3295 2250, 00-982-3295, 009823295
Product Details | JUNCTION BOX
5975-00-982-3295 An enclosure of other than cast metal designed to house, mount, and protect, but does not include wiring connections or electrical device(s) such as terminals and/or terminal boards, switches, jacks, fuseholders, connectors, circuit breakers and the like. It is designed for and may include a cover and such accessories as mounting hardware, brackets, locks, clamps, mounts and conduit fittings. Excludes CONDUIT OUTLET; and CHAMBER, CABLE TERMINAL. For boxes which include electrical device(s) such as terminals and/or terminal boards, switches, fuseholders, jacks, connectors, circuit breakers and the like, or combinations thereof, see SWITCH BOX; FUZE BOX; JACK BOX; TERMINAL BOX; CIRCUIT BREAKER BOX; and DISTRIBUTION BOX. For boxes wired to provide the interconnecting facilities for a specific major group of electronic items outside of the box, see INTERCONNECTING BOX. See also INTERCONNECTING CABINET.
Part Alternates: 2250, 5975-00-982-3295, 00-982-3295, 5975009823295, 009823295
Electrical and Electronic Equipment Components | Electrical Hardware and Supplies
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 00-982-3295 | 06219 ( JUNCTION BOX ) |

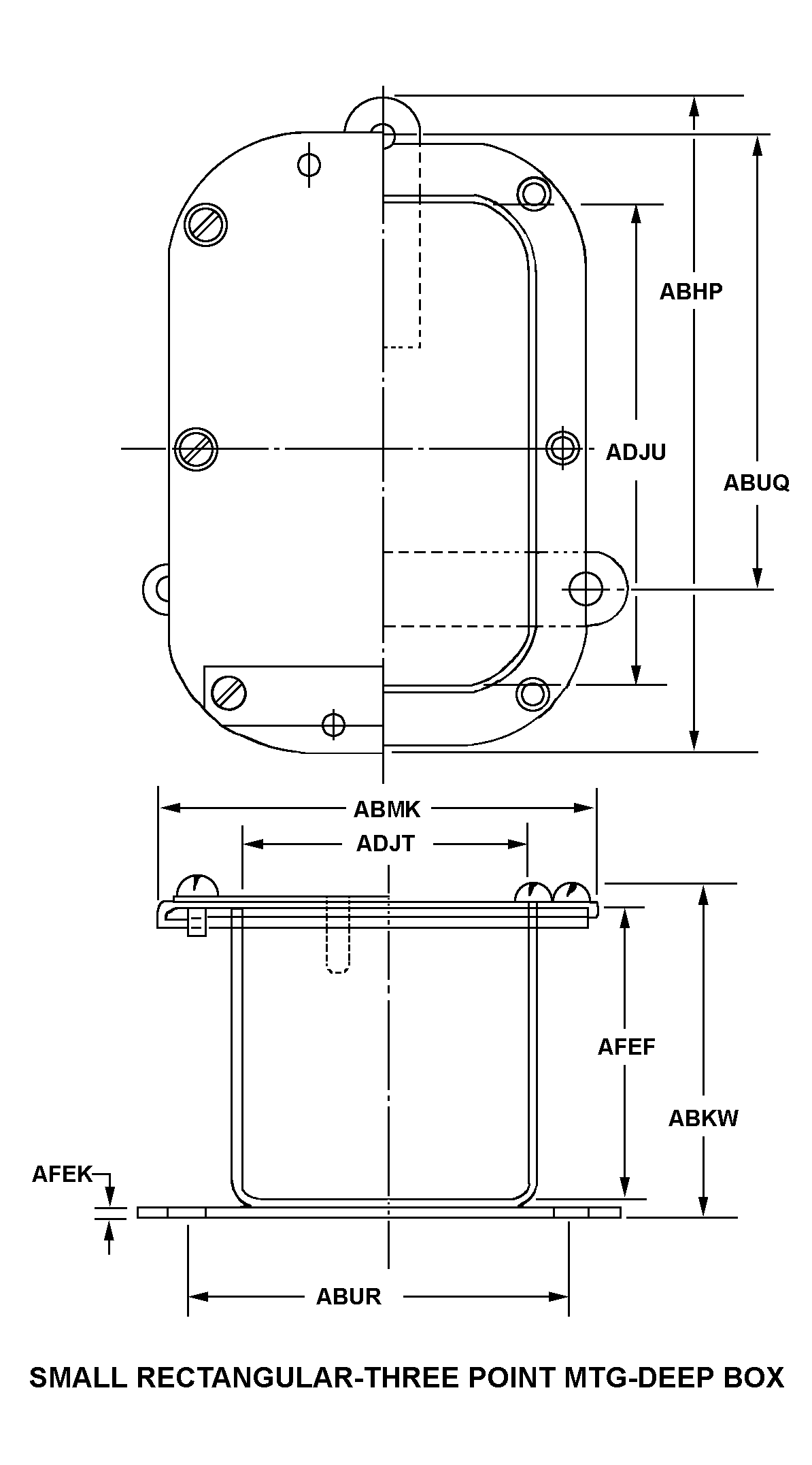

Drawings & Photos | NSN 5975-00-982-3295
Demand History | NSN 5975-00-982-3295
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 2250 | 2014-08-237 | 2 | United States |
| 2250 | 2010-10-287 | 2 |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5975-00-982-3295
Technical Data | NSN 5975-00-982-3295
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | C14 STANDARD RECTANGULAR-MASONRY-SEE THRU |
| OVERALL WIDTH | 6.000 INCHES NOMINAL |
| BODY LENGTH | 6.000 INCHES NOMINAL |
| INSIDE DEPTH | 6.000 INCHES NOMINAL |
| ENTRANCE DIAMETER | 1.125 INCHES AND 0.750 INCHES SIDES |
| ENTRANCE QUANTITY | 4 AND 6 |
| COVER MOUNTING HOLE QUANTITY | 4 |
| COVER TYPE | FLAT |
| MATERIAL | STEEL BODY STEEL COVER |
| NONDEFINITIVE SPEC/STD DATA | 2 TYPE |
Restrictions/Controls & Freight Information | NSN 5975-00-982-3295
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
