NSN 5975-00-973-9966 CR1772HG, EK316A, ER225A
Product Details | ELECTRICAL EQUIPMENT RACK
5975-00-973-9966 An open or inclosed frame structure designed to accommodate (but does not include) electrical/electronic equipment mounted on standard width panels so that the equipment may be operated after installation without being removed. It must have panel mounting rails that provide a uniform pattern of mounting holes that will accommodate various combinations of standard width panels. It may include wires, cables, terminal boards, connectors, and the like, required for equipment operation. See also MOUNTING BASE, ELECTRICAL EQUIPMENT; CABINET, ELECTRICAL EQUIPMENT; and CASE (2) (as modified). Excludes MAIN DISTRIBUTING FRAME, TELEPHONE and INTERMEDIATE DISTRIBUTING FRAME, TELEPHONE.
Part Alternates: CR1772HG, EK316A, ER225A, 9002092, 9002-092, 5975-00-973-9966, 00-973-9966, 5975009739966, 009739966
Electrical and Electronic Equipment Components | Electrical Hardware and Supplies
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1962 | 00-973-9966 | 06353 ( RACK, ELECTRICAL EQUIPMENT ) |
Drawings & Photos | NSN 5975-00-973-9966
Cross Reference | NSN 5975-00-973-9966
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5975-00-973-9966
Technical Data | NSN 5975-00-973-9966
| Characteristic | Specifications |
|---|---|

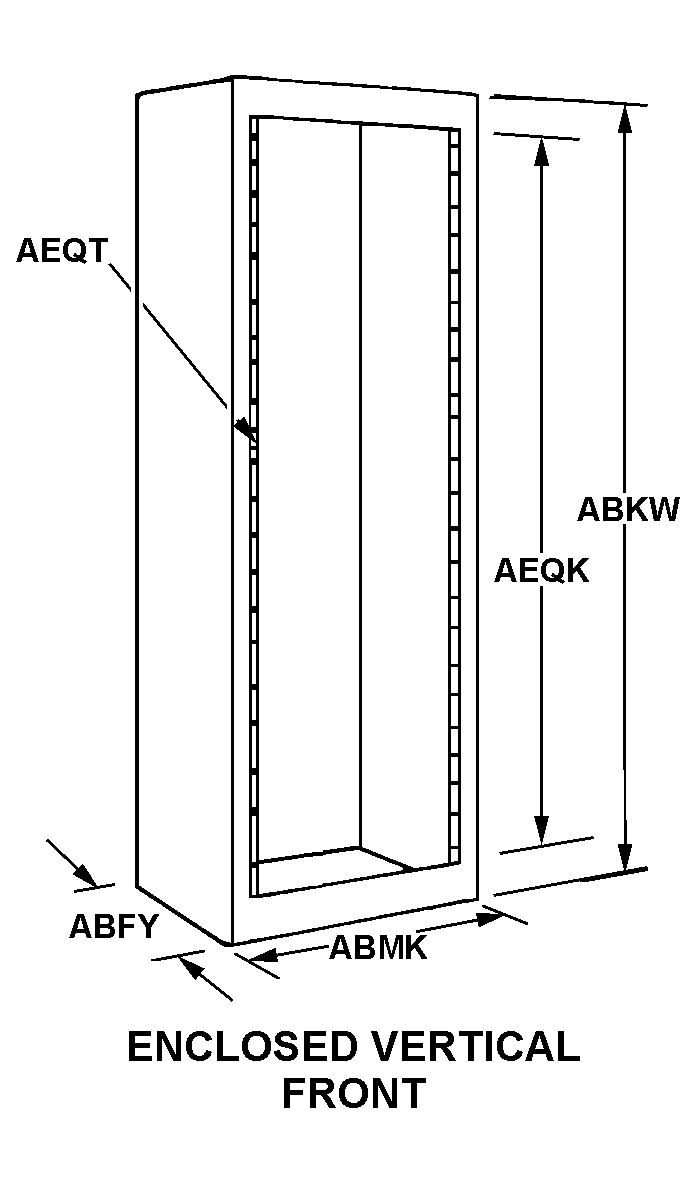

| STYLE DESIGNATOR | H11 ENCLOSED VERTICAL FRONT |
| OVERALL DEPTH | 18.000 INCHES NOMINAL |
| OVERALL HEIGHT | 67.750 INCHES NOMINAL |
| OVERALL WIDTH | 22.000 INCHES NOMINAL |
| PANEL SPACE HEIGHT | 61.250 INCHES NOMINAL |
| PANEL RAIL THICKNESS | 0.109 INCHES NOMINAL |
| MATERIAL | STEEL |
| SURFACE TREATMENT | ENAMEL |
| COLOR | BLUE GRAY, LIGHT |
| PANEL WIDTH ACCOMMODATED | 19.000 INCHES NOMINAL |
| PANEL MOUNTING RAIL DESIGN STYLE | K1 ANGLE |
| PANEL MOUNTING RAIL HOLE ARRANGEMENT STYLE | L1 UNIVERSAL SPACING |
| VENTILATION DESIGN TYPE | LOUVER |
| DOOR TYPE | SINGLE BACK |
Restrictions/Controls & Freight Information | NSN 5975-00-973-9966
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 164390 | RACKS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
