NSN 5975-00-931-0773 ANSI C80.5, ANSIC805, WWC00540
Product Details | ELECTRICAL CONDUIT BEND
5975-00-931-0773 An item fabricated in the form of a curved section specifically designed to mechanically join a conduit or conduit fitting to another conduit or conduit fitting. Items of this type do not have a boss or hub at either end, nor do they have facilities for mounting wiring devices or pulling electrical conductors. See also ELBOW, ELECTRICAL CONDUIT and CONDUIT OUTLET.
Part Alternates: ANSI C80.5, ANSIC805, WWC00540, UL 6, UL6, 1, 5975-00-931-0773, 00-931-0773, 5975009310773, 009310773
Electrical and Electronic Equipment Components | Electrical Hardware and Supplies
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 14 SEP 1966 | 00-931-0773 | 06998 ( BEND, ELECTRICAL CONDUIT ) |
Drawings & Photos | NSN 5975-00-931-0773
Demand History | NSN 5975-00-931-0773
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 1 | 2024-09-267 | 1 | us |
| 1 | 2024-07-212 | 1 | US |
| 1 | 2023-11-319 | 1 | US |
| 1 | 2023-11-311 | 1 | United States |
| 1 | 2023-05-137 | 1 | US |
| 1 | 2020-11-325 | 1 | US |
| 1 | 2019-05-141 | 1 | US |
| 1 | 2019-04-99 | 4 | |
| 1 | 2016-10-301 | 1 | |
| 1 | 2016-07-209 | 22 | us |
| 1 | 2016-07-209 | 12 | us |
| 1 | 2014-05-136 | 1 | US |
| 1 | 2011-06-160 | 1 | PH |
Cross Reference | NSN 5975-00-931-0773
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5975-00-931-0773
Related Products | NSN 5975-00-931-0773
Technical Data | NSN 5975-00-931-0773
| Characteristic | Specifications |
|---|---|
| TRADE SIZE | 1.000 |
| STRUCTURAL DESIGN | THICKWALL |

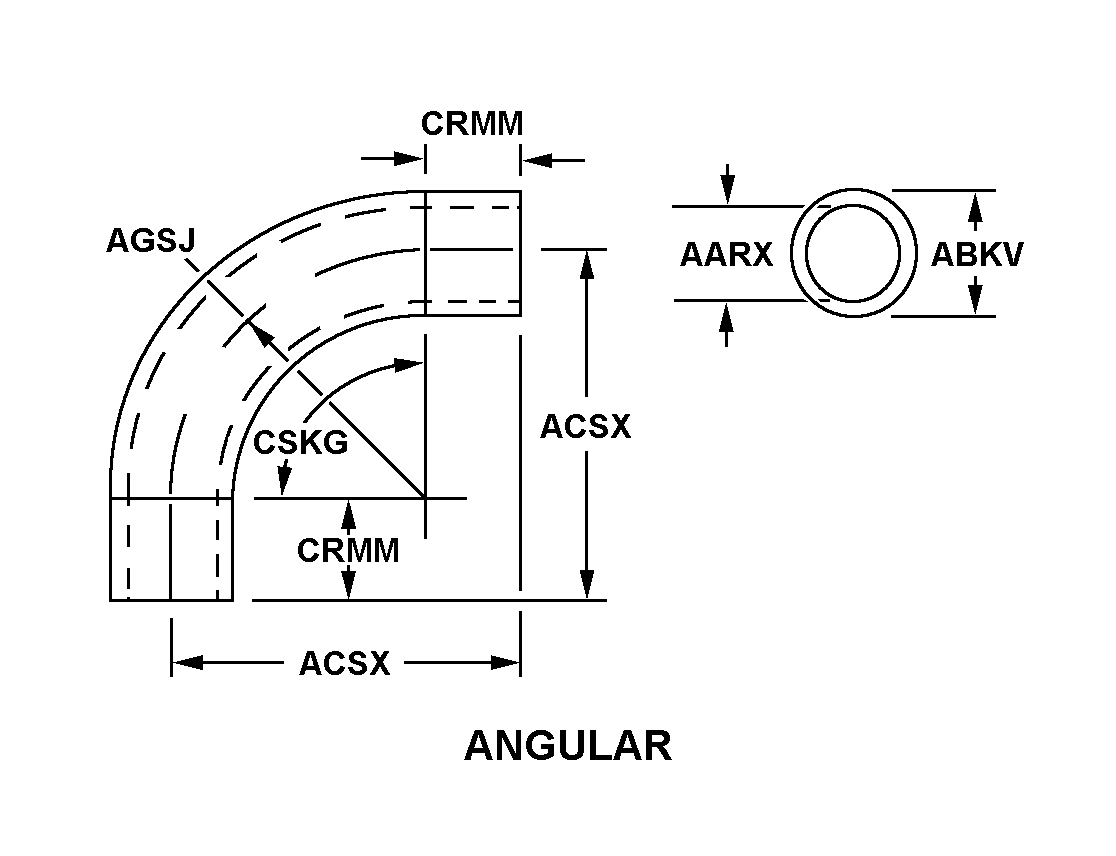

| STYLE DESIGNATOR | A2 ANGULAR |
| INSIDE DIAMETER | ANY ACCEPTABLE |
| OUTSIDE DIAMETER | ANY ACCEPTABLE |
| OFFSET DISTANCE | 8.625 INCHES NOMINAL |
| BEND RADIUS | 5.750 INCHES NOMINAL |
| TANGENT LENGTH | 1.875 INCHES NOMINAL |
| BEND ANGLE | 90.0 DEGREES NOMINAL |
| MATERIAL | ALUMINUM OVERALL |
| THREAD SERIES DESIGNATOR | NPT BOTH ENDS |
| NOMINAL THREAD SIZE | 1.000 INCHES BOTH ENDS |
| THREAD LENGTH | 0.980 INCHES NOMINAL BOTH ENDS |
| NONDEFINITIVE SPEC/STD DATA | 1.000 SIZE |
Restrictions/Controls & Freight Information | NSN 5975-00-931-0773
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062010 | FITTINGS CONDUIT NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | 75 | GSA, FSS/FCSC Washington, DC 20406 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5975-00-931-0773
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Fund Code | OS | Items centrally procured and stocked by applicable Defense Supply Center for overseas support only, but authorized for local purchase by Continental U.S. (CONUS) customers. |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | K | CENTRALLY STOCKED FOR OVERSEAS ONLY # Main means of supply is local purchase or direct ordering from a central contract/schedule when the Federal Supply Schedule Number is shown in the CMD record. Item is stocked in domestic supply system for those activities unable to procure locally due to nonavailiability of procurement sources or where local purchase is prohibited (e.g., ASPR; Flow of Gold; or by internal Service/Agency restraints). Requisitions will be submitted by overseas activities in accordance with Service/Agency requisitioning procedures. NOTE: Continental U.S. (CONUS) activities will obtain supply support through local procurement procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
