NSN 5975-00-926-7563 CH622PFSQ75V, FA56582, FA5658-2
Product Details | ELECTRICAL EQUIPMENT DRAWER
5975-00-926-7563 An item designed to slide in and out of a CABINET, ELECTRICAL EQUIPMENT or RACK, ELECTRICAL EQUIPMENT and used to mount and/or store electrical/electronic equipment. It does not include the electrical/electronic equipment, but may include wires, cables, terminal boards, connectors, etc.
Part Alternates: CH622PFSQ75V, FA56582, FA5658-2, FA5709, 5975-00-926-7563, 00-926-7563, 5975009267563, 009267563
Electrical and Electronic Equipment Components | Electrical Hardware and Supplies
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 07 FEB 1968 | 00-926-7563 | 29922 ( DRAWER, ELECTRICAL EQUIPMENT ) |
Drawings & Photos | NSN 5975-00-926-7563
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5975-00-926-7563
Related Products | NSN 5975-00-926-7563
Technical Data | NSN 5975-00-926-7563
| Characteristic | Specifications |
|---|---|

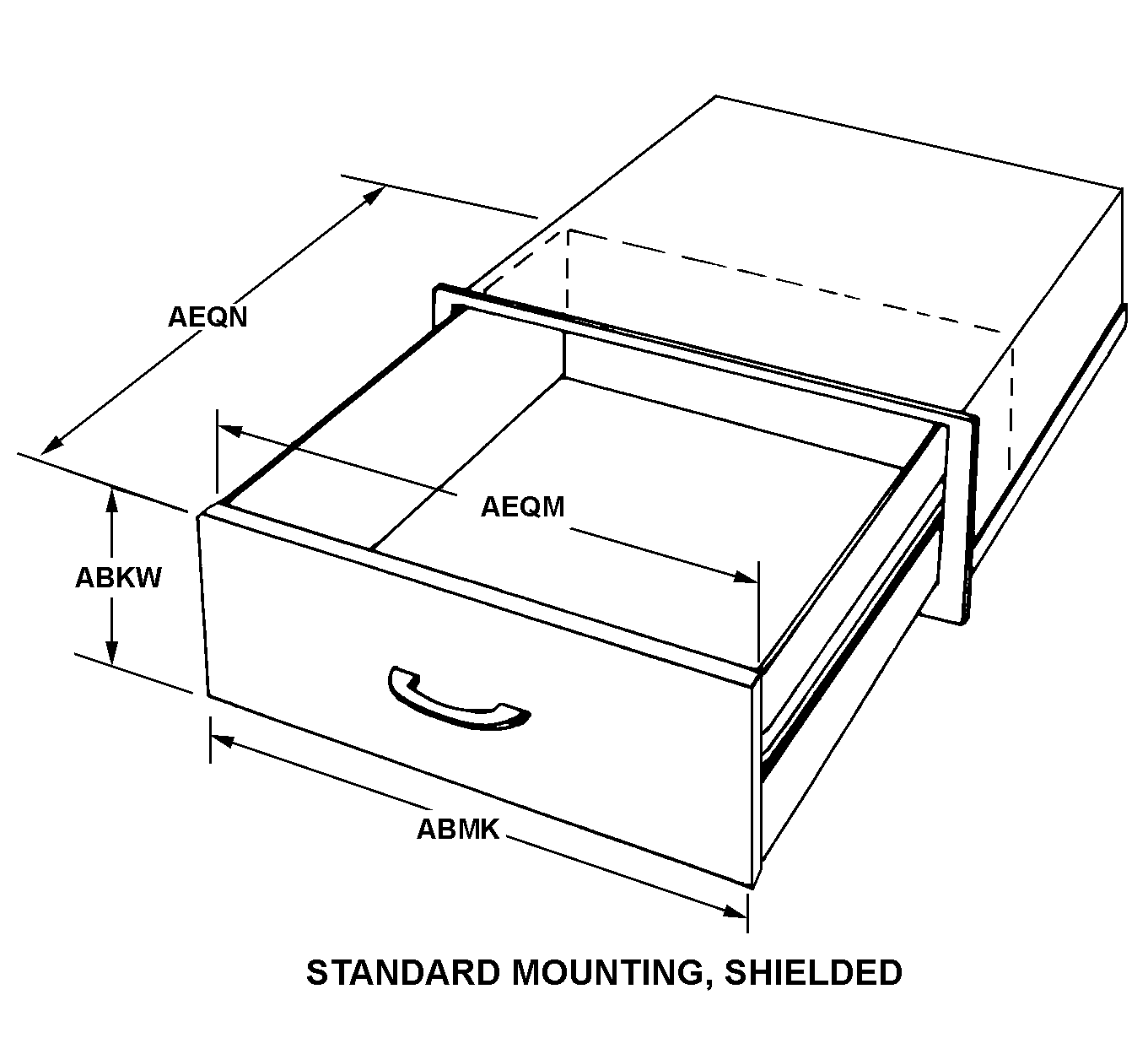

| STYLE DESIGNATOR | D5 STANDARD MOUNTING, SHIELDED |
| OVERALL HEIGHT | 7.000 INCHES NOMINAL |
| OVERALL WIDTH | 19.000 INCHES NOMINAL |
| DRAWER INSIDE WIDTH | 17.000 INCHES NOMINAL |
| DRAWER INSIDE DEPTH | 11.500 INCHES NOMINAL |
| MATERIAL | ALUMINUM ALLOY |
| SURFACE TREATMENT | ENAMEL |
| COLOR | GRAY |
| COMPONENT MOUNTING FACILITY TYPE AND QUANTITY | 8 THREADED HOLE |
| SLIDE MECHANISM TYPE | RAIL |
| MAXIMUM WEIGHT CAPACITY | 40.0 POUNDS |
| FEATURES PROVIDED | PREWIRED |
| III FSC APPLICATION DATA | RADIO AND TELEVISION COMMUNICATION EQUIPMENT,EXCEPT AIRBORNE |
Restrictions/Controls & Freight Information | NSN 5975-00-926-7563
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 057610 | DRAWERS BENCH STEEL/STEEL AND WOOD |
| Less than car load rating | ||
| Less than truck load rating | M | 85.0 |
| Water commodity Code | 712 | unknown |
| Originating Activity Code | CL | U.S. Army Communications-Electronics Fort Monmouth, NJ 07703-5006 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | 3 | Electrostatic Sensitive Device (ESD), subject to damage caused by electrostatic discharge. (See DoD 4500.32-R, Volume 1, Appendix A, Section I for additional information on ESD devices). |
Management | NSN 5975-00-926-7563
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
