NSN 5975-00-869-5541 3K11378105, 3K11378-105, 00-869-5541
Product Details | JUNCTION BOX COVER
5975-00-869-5541 A cover containing facilities for mounting directly on a JUNCTION BOX. It may have provisions for the insertion and/or mounting of electrical devices, such as switches, connectors, additional covers, and jewels. It may include the jewel(s). For covers having facilities for mounting on brackets or on current carrying devices such as switches and receptacle connectors, see PLATE, WALL, ELECTRICAL. See also COVER, CONDUIT OUTLET.
Part Alternates: 3K11378105, 3K11378-105, 5975-00-869-5541, 00-869-5541, 5975008695541, 008695541
Electrical and Electronic Equipment Components | Electrical Hardware and Supplies
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1960 | 00-869-5541 | 13702 ( COVER, JUNCTION BOX ) |
Drawings & Photos | NSN 5975-00-869-5541
Cross Reference | NSN 5975-00-869-5541
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3K11378-105 | 98897 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5975-00-869-5541
Related Products | NSN 5975-00-869-5541
Technical Data | NSN 5975-00-869-5541
| Characteristic | Specifications |
|---|---|

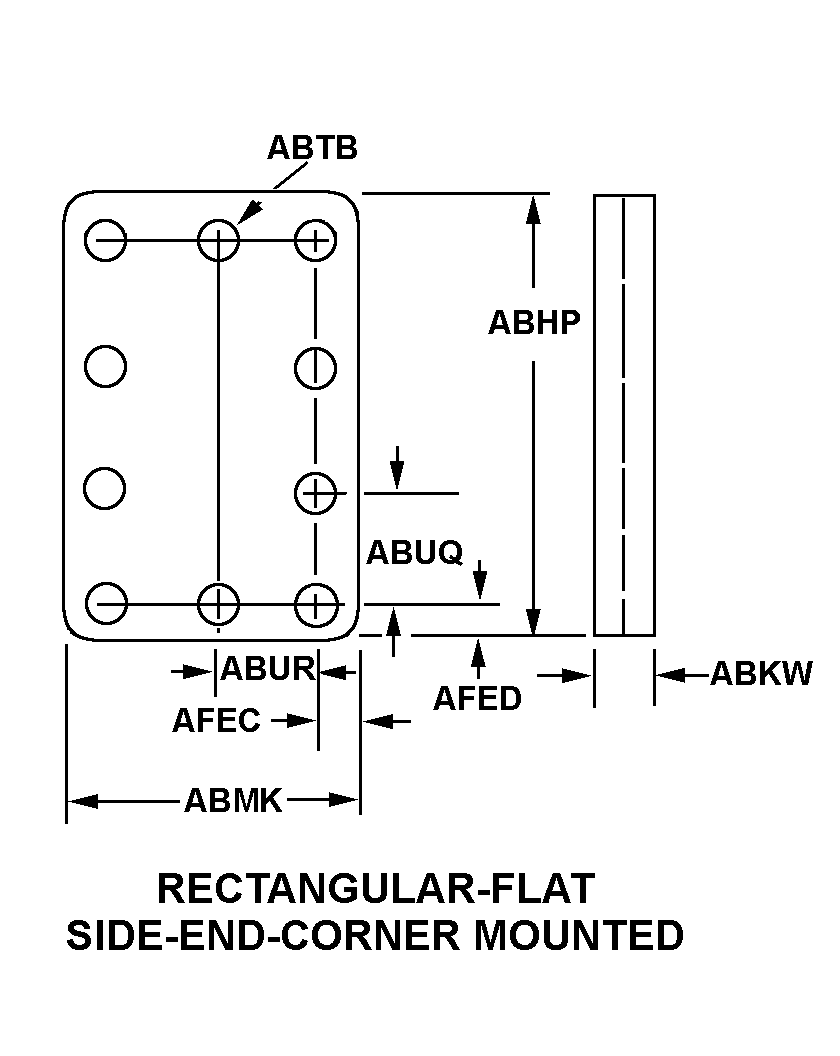

| STYLE DESIGNATOR | A4 RECTANGULAR-FLAT SIDE-END-CORNER MOUNTED |
| OVERALL LENGTH | 28.300 INCHES NOMINAL |
| OVERALL HEIGHT | 0.410 INCHES NOMINAL |
| OVERALL WIDTH | 21.580 INCHES NOMINAL |
| MOUNTING HOLE DIAMETER | 0.294 INCHES MINIMUM AND 0.301 INCHES MAXIMUM |
| FIRST CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES | 9.340 INCHES NOMINAL |
| SECOND CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES | 3.150 INCHES NOMINAL |
| DISTANCE FROM CENTER OF MOUNTING HOLE TO EDGE ALONG THE WIDTH | 3.590 INCHES NOMINAL |
| DISTANCE FROM CENTER OF MOUNTING HOLE TO EDGE ALONG THE LENGTH | 9.780 INCHES NOMINAL |
| COVER MOUNTING HOLE QUANTITY | 10 |
| COVER TYPE | FLAT |
| MATERIAL | PLASTIC COVER |
| COVER ATTACHMENT METHOD | TURN-LOCK STUDS |
| MANUFACTURERS CODE | 98897 |
| DESIGN CONTROL REFERENCE | 3K11378-105 |
Restrictions/Controls & Freight Information | NSN 5975-00-869-5541
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 063160 | SWITCH BOXES/ELEC ENCLOSURES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
