NSN 5975-00-839-5305 LB27AAND270A, LB27SAAND270SA, LB2ANDL20
Product Details | CONDUIT OUTLET
5975-00-839-5305 An item designed to be used in a conduit system for the purpose of providing outlets or attachments for electrical wiring devices and/or designed to provide access and facilitate installment of wires. It may or may not include a cover(s). It does not include wiring devices. Excludes ENTRANCE ELBOW, ELECTRICAL. See also JUNCTION BOX.
Part Alternates: LB27AAND270A, LB27SAAND270SA, LB2ANDL20, WC586, 5975-00-839-5305, 00-839-5305, 5975008395305, 008395305
Electrical and Electronic Equipment Components | Electrical Hardware and Supplies
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1962 | 00-839-5305 | 06945 ( CONDUIT OUTLET ) |
Drawings & Photos | NSN 5975-00-839-5305
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5975-00-839-5305
Technical Data | NSN 5975-00-839-5305
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | LB OBLONG |
| OVERALL DEPTH | ANY ACCEPTABLE |
| OVERALL WIDTH | 1.188 INCHES NOMINAL |
| COVER OPENING LENGTH | 3.812 INCHES NOMINAL |
| COVER OPENING WIDTH | 1.125 INCHES NOMINAL |
| CONDUIT ENTRANCE TYPE | HUB DRILLED AND TAPPED ALL ENTRANCE |
| CONDUIT TYPE ACCOMMODATED | RIGID,UNSPECIFIED ALL ENTRANCE |
| CONDUIT TRADE SIZE ACCOMMODATED | 0.750 INCHES ALL ENTRANCE |
| TRADE DESIGNATION | LB SERIES |
| MATERIAL | ALUMINUM OVERALL |
| COVER MOUNTING METHOD | THREADED FASTENER |
| COVER QUANTITY | 1 |

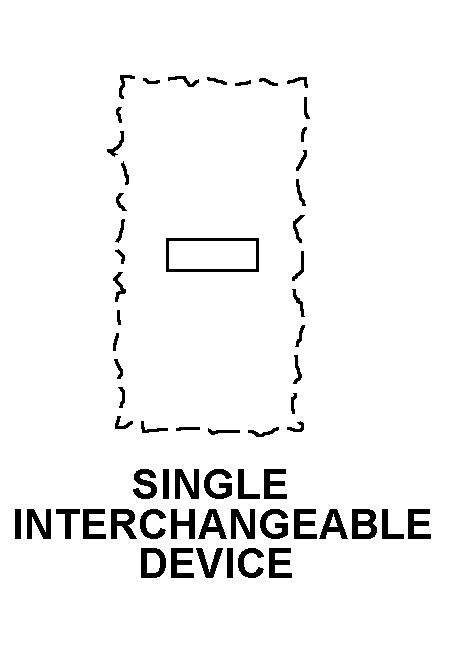

| FUNCTIONAL COVER STYLE | E4 SINGLE INTERCHANGEABLE DEVICE |
| NONDEFINITIVE SPEC/STD DATA | 1 TYPE AND 1 DESIGN AND LB STYLE |
| MANUFACTURERS CODE | 81348 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | WC586 |
Restrictions/Controls & Freight Information | NSN 5975-00-839-5305
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
