NSN 5975-00-760-0014 7600014, DS81, 00-760-0014
Product Details | CONDUIT OUTLET COVER
5975-00-760-0014 An item of any material, with or without threads, designed to mate with a CONDUIT OUTLET or a SEALING FITTING, ELECTRICAL CONDUIT. It may be designed as a removable side plate cover with or without hubs. It may have provisions for draining or venting. It may be designed for the insertion and/or mounting of electrical devices, such as switches, receptacle connectors, and indicator light lenses. It may include mechanisms for the external operation of switches but does not include the wiring devices. For items designed to mount directly on a bracket or an electrical current carrying wiring device, see PLATE, WALL, ELECTRICAL. See also COVER, JUNCTION BOX.
Part Alternates: 7600014, DS81, 5975-00-760-0014, 00-760-0014, 5975007600014, 007600014
Electrical and Electronic Equipment Components | Electrical Hardware and Supplies
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1962 | 00-760-0014 | 19945 ( COVER, CONDUIT OUTLET ) |
Drawings & Photos | NSN 5975-00-760-0014
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5975-00-760-0014
Technical Data | NSN 5975-00-760-0014
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | AND RECTANGULAR/SQUARE |
| OVERALL LENGTH | 4.281 INCHES NOMINAL |
| OVERALL WIDTH | 2.750 INCHES NOMINAL |
| TRADE DESIGNATION | FS AND FD SERIES |
| MATERIAL | IRON ALLOY OVERALL |
| SURFACE TREATMENT | LACQUER, ALUMINUM CELLULOSE AND CADMIUM AND ZINC OVERALL |
| COVER MOUNTING METHOD | THREADED FASTENER |
| COVER MOUNTING HOLE QUANTITY | 4 |
| COVER MOUNTING HOLE ARRANGEMENT STYLE | F5 RECTANGULAR |
| COVER MOUNTING SURFACE TYPE | FLAT |

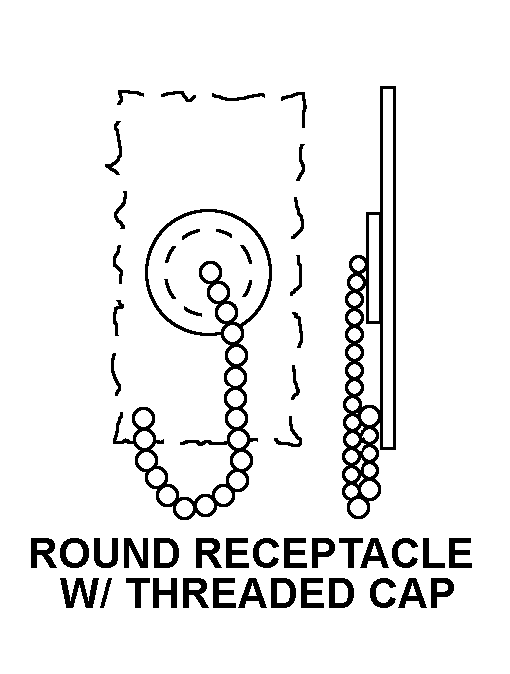

| FUNCTIONAL COVER STYLE | E9 ROUND RECEPTACLE W/THREADED CAP |
| HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION | NOT RATED |
| FURNISHED ITEMS | THREADED CAP AND CHAIN |
| MANUFACTURERS CODE | 15235 |
| DESIGN CONTROL REFERENCE | DS81 |
Restrictions/Controls & Freight Information | NSN 5975-00-760-0014
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 063160 | SWITCH BOXES/ELEC ENCLOSURES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5975-00-760-0014
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | Q | Electronics Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
