NSN 5975-00-701-6422 9081342, 00-701-6422, 007016422
Product Details | ELECTRICAL CONDUIT ADAPTER
5975-00-701-6422 An item designed to couple or join two different types or sizes of conduits, and/or to be inserted in the opening of a conduit outlet or box to accommodate a conduit of a larger or smaller size; or it may be designed with internal thread on one end for mating with an electrical connector and an external thread on the other end for mating with a conduit coupling nut; or to establish necessary mechanical accommodations between an electrical conduit, conduit assembly and an electrical connector. Excludes REDUCING WASHER, KNOCKOUT and BOX CONNECTOR, ELECTRICAL. See also ADAPTER, CABLE TO CONNECTOR; and CHASE NIPPLE, CONDUIT.
Part Alternates: 9081342, 5975-00-701-6422, 00-701-6422, 5975007016422, 007016422
Electrical and Electronic Equipment Components | Electrical Hardware and Supplies
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-701-6422 | 06935 ( ADAPTER, ELECTRICAL CONDUIT ) |

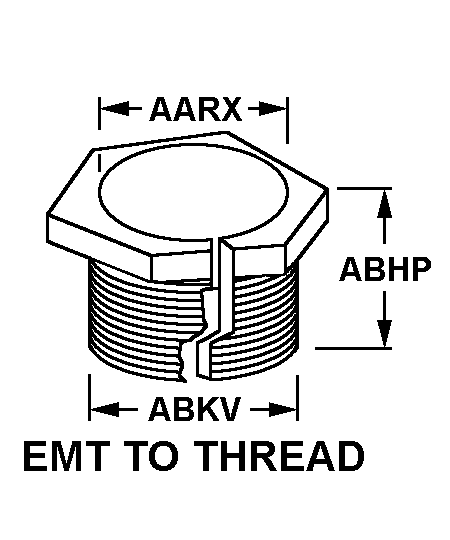

Drawings & Photos | NSN 5975-00-701-6422
Cross Reference | NSN 5975-00-701-6422
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 9081342 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5975-00-701-6422
Technical Data | NSN 5975-00-701-6422
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | A1 EMT TO THREAD |
| OVERALL LENGTH | 1.125 INCHES NOMINAL |
| OUTSIDE DIAMETER | 1.250 INCHES MAXIMUM SINGLE END |
| INSIDE DIAMETER | 1.031 INCHES MAXIMUM SINGLE END |
| MATERIAL | ALUMINUM ALLOY 2024 |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-268 FED SPEC SINGLE MATERIAL RESPONSE |
| THREAD SERIES DESIGNATOR | NPT SINGLE END |
| NOMINAL THREAD SIZE | 1.250 INCHES SINGLE END |
| THREAD LENGTH | 0.750 INCHES NOMINAL SINGLE END |
| END TYPE | EXTERNAL THREAD SINGLE END |
| MANUFACTURERS CODE | 18876 |
| DESIGN CONTROL REFERENCE | 9081342 |
Restrictions/Controls & Freight Information | NSN 5975-00-701-6422
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
