NSN 5975-00-681-0864 CA201, 00-681-0864, 006810864
Product Details | ELECTRICAL EQUIPMENT CABINET
5975-00-681-0864 An enclosure generally fabricated of sheet material designed to accommodate (but does not include) electrical/electronic equipment so that the equipment may be operated without removal. It may include wires, cables, terminal boards, connectors, etc., required for equipment operation. For items designed to accommodate equipment mounted on panels, see RACK, ELECTRICAL EQUIPMENT. See also CASE (2) (as modified). Excludes INTERCONNECTING BOX; INTERCONNECTING CABINET; JUNCTION BOX; and TERMINAL BOX.
Part Alternates: CA201, 5975-00-681-0864, 00-681-0864, 5975006810864, 006810864
Electrical and Electronic Equipment Components | Electrical Hardware and Supplies
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-681-0864 | 06352 ( CABINET, ELECTRICAL EQUIPMENT ) |
Drawings & Photos | NSN 5975-00-681-0864
Demand History | NSN 5975-00-681-0864
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| CA201 | 2019-08-239 | 1 | UK |
Cross Reference | NSN 5975-00-681-0864
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| CA201 | 74156 | ANGO ELECTRONICS CORPORATION DBA PAR METAL PRODUCTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5975-00-681-0864
Technical Data | NSN 5975-00-681-0864
| Characteristic | Specifications |
|---|---|

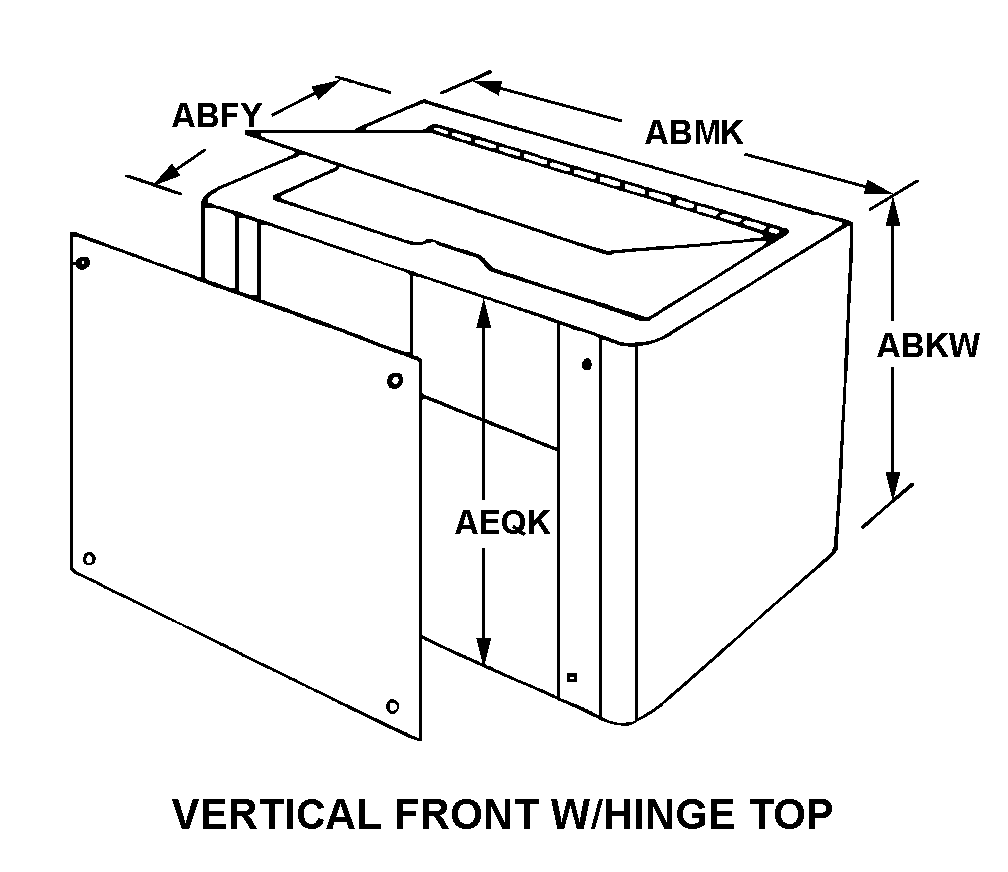

| STYLE DESIGNATOR | B17 VERTICAL FRONT W/HINGE TOP |
| OVERALL DEPTH | 12.125 INCHES NOMINAL |
| OVERALL HEIGHT | 8.000 INCHES NOMINAL |
| OVERALL WIDTH | 8.500 INCHES NOMINAL |
| PANEL SPACE HEIGHT | 7.500 INCHES NOMINAL |
| MATERIAL | STEEL |
| SURFACE TREATMENT | ENAMEL |
| COLOR | GRAY |
| PANEL WIDTH ACCOMMODATED | 10.000 INCHES NOMINAL |
| VENTILATION DESIGN TYPE | LOUVER |
| SPECIAL FEATURES | LOUVERS IN EACH SIDE |
Restrictions/Controls & Freight Information | NSN 5975-00-681-0864
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
