NSN 5975-00-670-5213 SR11K2, SR-11K-2, 00-670-5213
Product Details | CABLE STRAIN RELIEF BUSHING
5975-00-670-5213 An insulating item designed to prevent movement along the axis of an electric wire or cable in either direction when placed in the chassis of such items as electric fans, irons, drills, motors, radios, clocks and the like. It may be designed for use in the central column of a gun mount and the like. See also COLLAR, CABLE.
Part Alternates: SR11K2, SR-11K-2, 5975-00-670-5213, 00-670-5213, 5975006705213, 006705213
Electrical and Electronic Equipment Components | Electrical Hardware and Supplies
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1961 | 00-670-5213 | 19775 ( BUSHING, STRAIN RELIEF, CABLE ) |

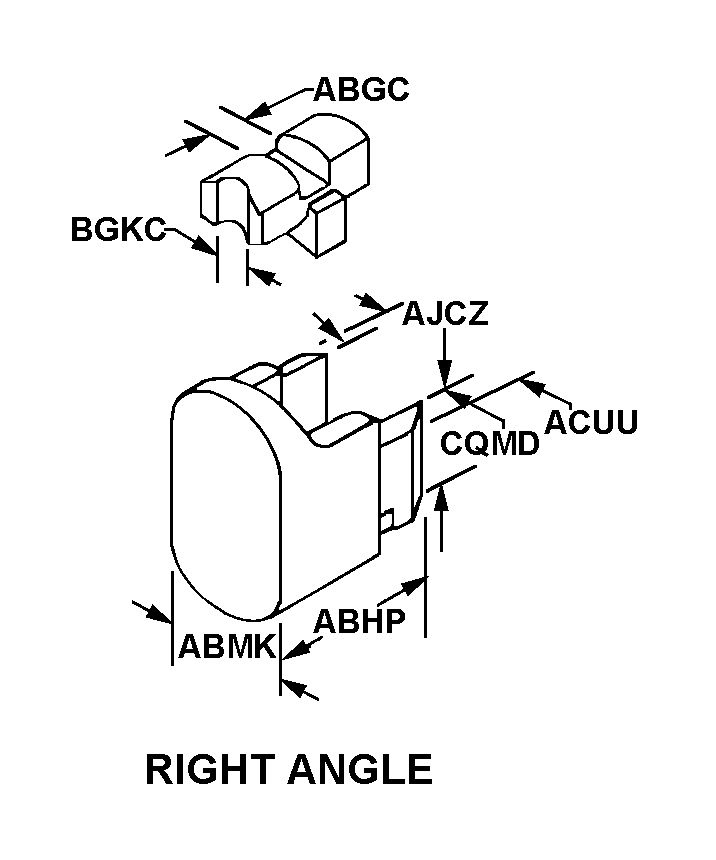

Drawings & Photos | NSN 5975-00-670-5213
Demand History | NSN 5975-00-670-5213
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 1327 | 2024-05-136 | 50 | DIBBS |
Cross Reference | NSN 5975-00-670-5213
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| SR-11K-2 | 28520 | HEYCO INC DBA HEYCO PRODUCTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5975-00-670-5213
Technical Data | NSN 5975-00-670-5213
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | C2 RIGHT ANGLE |
| SLOT WIDTH | 0.200 INCHES NOMINAL |
| OVERALL LENGTH | 0.970 INCHES NOMINAL |
| OPENING INSIDE DIAMETER | 0.656 INCHES NOMINAL |
| ACCOMMODATION HOLE WIDTH | 0.565 INCHES NOMINAL |
| MATERIAL | NYLON BODY |
| MOUNTING METHOD | COMPRESSION |
| MOUNTING DEVICE QUANTITY | 1 |
| FLEXIBILITY | FLEXIBLE |
Restrictions/Controls & Freight Information | NSN 5975-00-670-5213
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062010 | FITTINGS CONDUIT NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5975-00-670-5213
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
