NSN 5975-00-669-9678 MS2506612, MS25066-12, 00-669-9678
Product Details | ELECTRICAL CONDUIT COUPLING NUT
5975-00-669-9678 An item of metallic composition with internal threads and an internal seat designed to join a ferrule capped conduit to a fitting. See also BONDNUT, ELECTRICAL CONDUIT.
Part Alternates: MS2506612, MS25066-12, 5975-00-669-9678, 00-669-9678, 5975006699678, 006699678
Electrical and Electronic Equipment Components | Electrical Hardware and Supplies
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
59 | 01 JAN 1963 | 00-669-9678 | 12814 ( NUT, COUPLING, ELECTRICAL CONDUIT ) |
Cross Reference | NSN 5975-00-669-9678
Part Number | Cage Code | Manufacturer |
---|---|---|
MS25066-12 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Compare
NSNs for Compare ( up to 4 ): Add 5975-00-669-9678
Related Products | NSN 5975-00-669-9678
Technical Data | NSN 5975-00-669-9678
Characteristic | Specifications |
---|---|

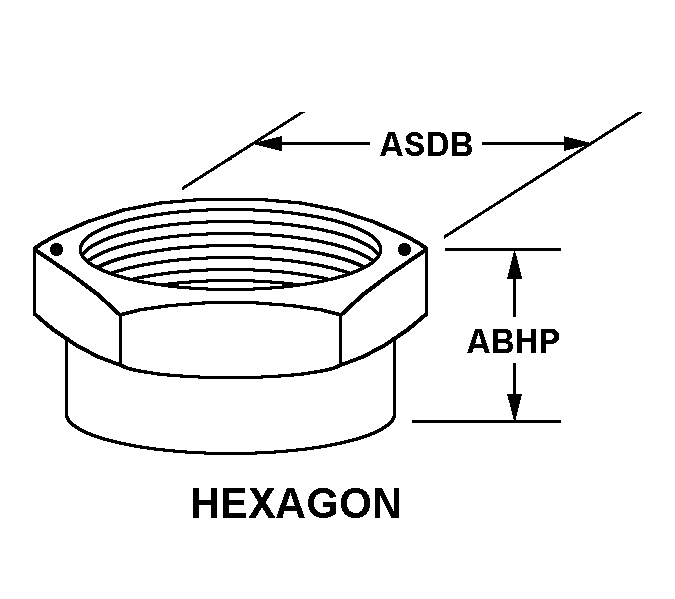

STYLE DESIGNATOR | A48 HEXAGON |
OVERALL LENGTH | 0.500 INCHES NOMINAL |
WIDTH ACROSS FLATS | 0.875 INCHES NOMINAL |
ITEM ACCOMMODATED TRADE SIZE | 0.375 INCHES SINGLE END |
MATERIAL | BRASS |
SURFACE TREATMENT | CADMIUM |
CONDUIT TYPE ACCOMMODATED | FLEXIBLE METALLIC SINGLE END |
MANUFACTURERS CODE | 96906 |
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS25066-12 |
Restrictions/Controls & Freight Information | NSN 5975-00-669-9678
Category | Code | Description |
---|---|---|
Shelf-Life Code: | 0 | Nondeteriorative |
Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
Controlled Inventory Item Code: | U | UNCLASSIFIED |
Precious Metals Indicator Code: | A | Item does not contain precious metal |
Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
Category | Code | Description |
---|---|---|
NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
Less than car load rating | ||
Less than truck load rating | W | Rating Variable |
Water commodity Code | 658 | unknown |
Originating Activity Code | XX | |
Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
Air Special Handling | Z | No special handling required. |
Special Handling Code | 9 | unknonwn |
HAZMAT | ||
Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5975-00-669-9678
Category | Code | Description |
---|---|---|
Cognizance Codes | 9G | Navy-owned stocks of defense general material Naval Inventory Control Point, Mechanicsburg |
Source of Supply | S9G | Defense Supply Center Richmond Richmond, VA 23297 |
Agency | DN | Department of the Navy |
Service Organization | N | U.S. Navy |
Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
Controlled Item Code | U | UNCLASSIFIED |
Shelf Life Code | 0 | Nondeteriorative |
Purchasing | QTY UOM |
1 EA : Each |
