NSN 5975-00-636-0268 1703, 00-636-0268, 006360268
Product Details | ELECTRICAL WALL PLATE
5975-00-636-0268 An item designed to mount directly on a bracket or an electrical current carrying wiring device(s) such as switch(es) or outlet(s) (receptacle). The bracket(s) or electrical current carrying device is mounted in a JUNCTION BOX. For trade designated items designed to be attached directly on or through a bracket or electrical wiring device to a CONDUIT OUTLET, see COVER, CONDUIT OUTLET. For items designed for mounting directly on a JUNCTION BOX, see COVER, JUNCTION BOX.
Part Alternates: 1703, 5975-00-636-0268, 00-636-0268, 5975006360268, 006360268
Electrical and Electronic Equipment Components | Electrical Hardware and Supplies
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-636-0268 | 07716 ( PLATE, WALL, ELECTRICAL ) |
Drawings & Photos | NSN 5975-00-636-0268
Cross Reference | NSN 5975-00-636-0268
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1703 | 76655 | PORTER H K CO INC ELECTRICAL DIV AMBRIDGE WORKS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5975-00-636-0268
Technical Data | NSN 5975-00-636-0268
| Characteristic | Specifications |
|---|---|
| UNIT TYPE | TOGGLE SWITCH |
| MATERIAL | STEEL |
| MATERIAL THICKNESS | 0.031 INCHES NOMINAL |
| SURFACE TREATMENT | ENAMEL |
| COLOR | GRAY |
| GANG QUANTITY | 1 |
| OPENING QUANTITY | 1 |

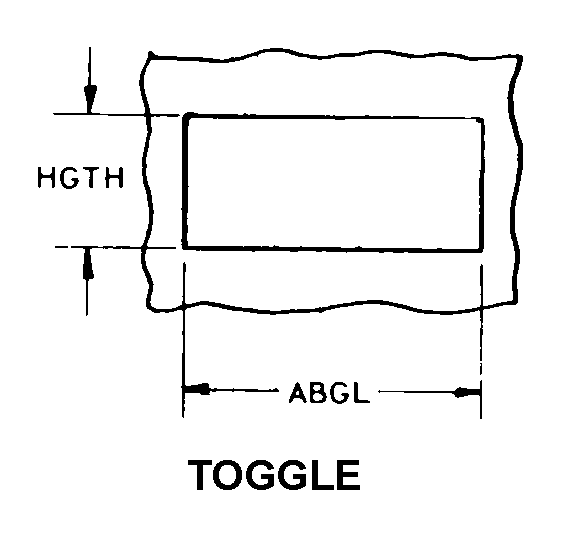

| OPENING STYLE DESIGNATOR | 1 TOGGLE |
| WIDTH | 0.906 INCHES NOMINAL |
| HEIGHT | 0.406 INCHES NOMINAL |
| INSULATING ADAPTER | NOT INCLUDED |
| COVER | NOT PROVIDED |
| LENGTH | 4.500 INCHES |
| WIDTH | 2.125 INCHES |
| MOUNTING HOLE QUANTITY | 2 |
| MANUFACTURERS CODE | 76655 |
| DESIGN CONTROL REFERENCE | 1703 |
Restrictions/Controls & Freight Information | NSN 5975-00-636-0268
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062680 | PLATES SWITCH/OUTLET |
| Less than car load rating | Q | 70 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
