NSN 5975-00-628-7714 BU320, BU-32-0, GS830BA1B
Product Details | ELECTRICAL CABLE NIPPLE
5975-00-628-7714 A preformed item having high electrical resistance designed for installation on end of cable or lead in order to cover the terminal or termination. It may partially cover the terminal of the item to which the cable or lead is attached. May also provide mechanical protection. Excludes INSULATION SLEEVING, ELECTRICAL.
Part Alternates: BU320, BU-32-0, GS830BA1B, K137043, 9113527, 916B32617, 916B326-17, 10361162, 28F473, 32BLACK, 3620019000, 362-0019-000, 41332710, 413327-10, 5975-00-628-7714, 00-628-7714, 5975006287714, 006287714
Electrical and Electronic Equipment Components | Electrical Hardware and Supplies
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1961 | 00-628-7714 | 06286 ( CABLE NIPPLE, ELECTRICAL ) |
Drawings & Photos | NSN 5975-00-628-7714
Demand History | NSN 5975-00-628-7714
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 28F473 | 2019-12-352 | 575 | DIBBS |
| 362-0019-000 | 2019-12-352 | 575 | DIBBS |
| BU-32-0 | 2019-12-352 | 575 | DIBBS |
| K137043 | 2019-12-352 | 575 | DIBBS |
Cross Reference | NSN 5975-00-628-7714
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10361162 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
| 28F473 | 02929 | NEWARK ELECTRONICS CORPORATION DBA NEWARK |
| 32BLACK | 76545 | MUELLER ELECTRIC COMPANY, INC. DIV MUELLER ELECTRIC COMPANY |
| 362-0019-000 | 13499 | ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS |
| 362-0019-000 | 95105 | ROCKWELL COLLINS, INC. DIV GOVERNMENT SYSTEMS - DALLAS |
| 413327-10 | 96214 | RAYTHEON COMPANY DBA RAYTHEON |
| 9113527 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
| 916B326-17 | 83843 | SUNDSTRAND CORP ELECTRIC POWER SYSTEMS DIV |
| 916B326-17 | 99167 | HAMILTON SUNDSTRAND CORPORATION |
| BU-32-0 | 76545 | MUELLER ELECTRIC COMPANY, INC. DIV MUELLER ELECTRIC COMPANY |
| GS830BA1B | 26512 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE |
| K137043 | 88818 | KEARFOTT CORPORATION DBA KEARFOTT |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5975-00-628-7714
Related Products | NSN 5975-00-628-7714
Technical Data | NSN 5975-00-628-7714
| Characteristic | Specifications |
|---|---|

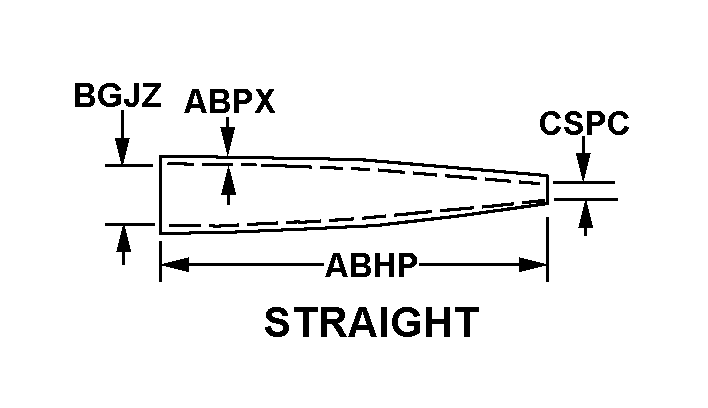

| STYLE DESIGNATOR | D11 STRAIGHT |
| OVERALL LENGTH | 1.219 INCHES NOMINAL |
| MATERIAL THICKNESS | ANY ACCEPTABLE |
| BASE INSIDE DIAMETER | 0.292 INCHES NOMINAL |
| ACCOMMODATION HOLE INSIDE DIAMETER | 0.125 INCHES NOMINAL |
| MATERIAL | PLASTIC BODY |
| COLOR | BLACK |
| FLEXIBILITY | FLEXIBLE |
| III END ITEM IDENTIFICATION | HAWK M1M-23 MISSILE |
Restrictions/Controls & Freight Information | NSN 5975-00-628-7714
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 030310 | CABLE OR WIRE |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 743 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5975-00-628-7714
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | Q | Electronics Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | T | Other Electronics Equipment |
| Weapons Systems/End Item or Homogeneous Group | TD | Test Equip |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
