NSN 5975-00-586-8097 766BA, 00-586-8097, 005868097
Product Details | CONDUIT OUTLET COVER
5975-00-586-8097 An item of any material, with or without threads, designed to mate with a CONDUIT OUTLET or a SEALING FITTING, ELECTRICAL CONDUIT. It may be designed as a removable side plate cover with or without hubs. It may have provisions for draining or venting. It may be designed for the insertion and/or mounting of electrical devices, such as switches, receptacle connectors, and indicator light lenses. It may include mechanisms for the external operation of switches but does not include the wiring devices. For items designed to mount directly on a bracket or an electrical current carrying wiring device, see PLATE, WALL, ELECTRICAL. See also COVER, JUNCTION BOX.
Part Alternates: 766BA, 5975-00-586-8097, 00-586-8097, 5975005868097, 005868097
Electrical and Electronic Equipment Components | Electrical Hardware and Supplies
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-586-8097 | 19945 ( COVER, CONDUIT OUTLET ) |
Drawings & Photos | NSN 5975-00-586-8097
Cross Reference | NSN 5975-00-586-8097
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 766BA | 76655 | PORTER H K CO INC ELECTRICAL DIV AMBRIDGE WORKS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5975-00-586-8097
Technical Data | NSN 5975-00-586-8097
| Characteristic | Specifications |
|---|---|

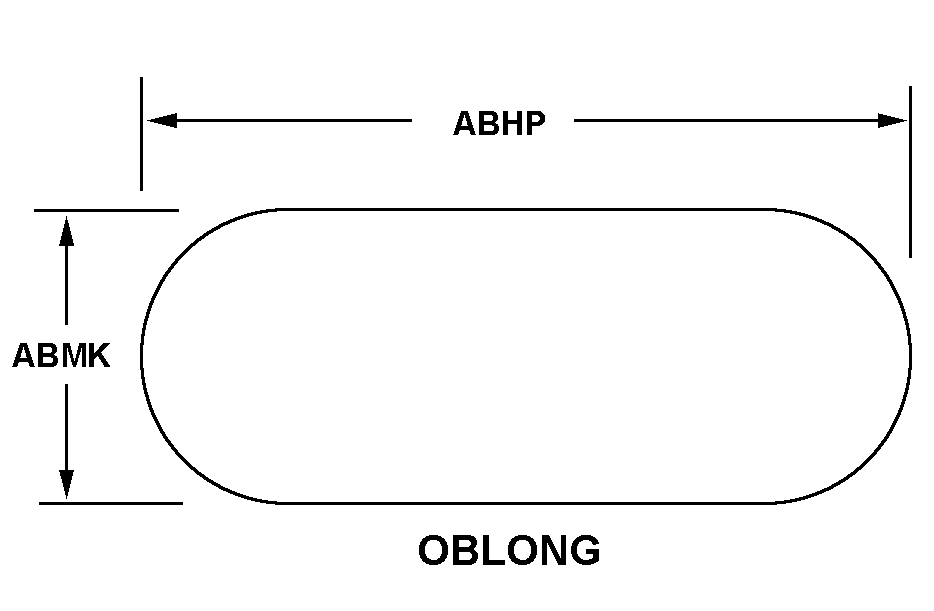

| STYLE DESIGNATOR | AKR OBLONG |
| CONDUIT ENTRANCE TYPE | HUB DRILLED D ENTRANCE |
| MATERIAL | STEEL OVERALL |
| COVER MOUNTING METHOD | THREADED FASTENER |
| COVER MOUNTING SURFACE TYPE | FLAT |
| COVER MOUNTING GASKET TYPE | SOLID CENTER |
| SPECIAL FEATURES | DESIGNED FOR 0.688 BY 2.094 BOX |
| MANUFACTURERS CODE | 76655 |
| DESIGN CONTROL REFERENCE | 766BA |
Restrictions/Controls & Freight Information | NSN 5975-00-586-8097
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
