NSN 5975-00-580-0249 WC586, F966, 00-580-0249
Product Details | ELECTRICAL ENTRANCE CAP
5975-00-580-0249 An item primarily designed to provide for the entrance of electrical wires into a building, structure, or inclosure and to facilitate their connection to feeders or service conductors. It consists of an insulating block and a metallic housing designed to hold the insulating block and to fit an electrical conduit, conduit fitting, or cable of a specified size. This item is primarily intended for use in exposed, wet, or damp locations and is installed so as to preclude the entrance of rain or debris into the conduit. See also CAP, ELECTRICAL.
Part Alternates: WC586, F966, 5975-00-580-0249, 00-580-0249, 5975005800249, 005800249
Electrical and Electronic Equipment Components | Electrical Hardware and Supplies
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 22 OCT 1969 | 00-580-0249 | 06931 ( ENTRANCE CAP, ELECTRICAL ) |

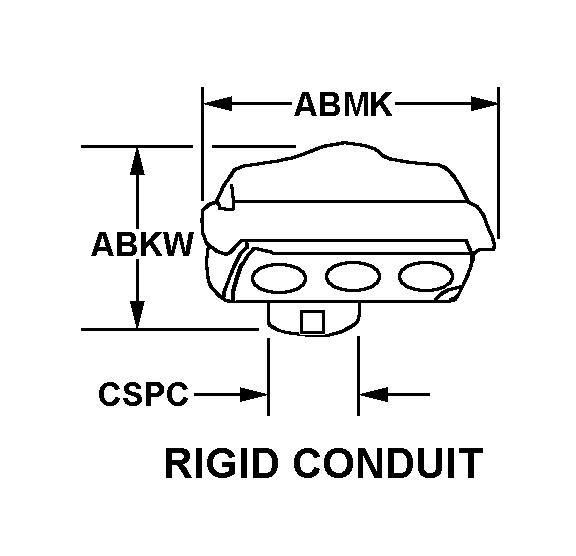

Drawings & Photos | NSN 5975-00-580-0249
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5975-00-580-0249
Technical Data | NSN 5975-00-580-0249
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | G3 RIGID CONDUIT |
| OVERALL HEIGHT | ANY ACCEPTABLE |
| OVERALL WIDTH | ANY ACCEPTABLE |
| ACCOMMODATION HOLE INSIDE DIAMETER | 3.500 INCHES NOMINAL |
| MATERIAL | ALUMINUM BODY PLASTIC PHENOLIC INSULATOR |
| HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION | RAINTIGHT-NEMA TYPE 3R |
| MOUNTING METHOD | THREAD |
| CONDUIT TRADE SIZE ACCOMMODATED | 3.500 |
| CONDUCTOR ACCOMMODATION QUANTITY | 5 |
| CABLE/CONDUIT TYPE ACCOMMODATED | STANDARD THICKWALL CONDUIT |
| BASE THREAD LOCATION | INTERNAL |
| THREAD SERIES | NPT |
| NOMINAL THREAD SIZE | 3.500 INCHES |
| THREAD LENGTH | ANY ACCEPTABLE |
| NONDEFINITIVE SPEC/STD DATA | 27 DESIGN AND 2 FORM AND VI TYPE |
| MANUFACTURERS CODE | 81348 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | WC586 |
Restrictions/Controls & Freight Information | NSN 5975-00-580-0249
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062010 | FITTINGS CONDUIT NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | JS | Naval ICP Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5975-00-580-0249
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
