NSN 5975-00-548-9939 005489939
Product Details | MARKER BAND
5975-00-548-9939 An item cut to a specific length suitable for wrapping around a cable, pipe, wire, wire rope and the like. It is secured by crimping, slot and tongue, or similar method of fastening. It is intended to provide identification. It may be blank, specifically color coded, or inscribed with information. Excludes TAG, MARKER.
Part Alternates: 005489939
Electrical and Electronic Equipment Components | Electrical Hardware and Supplies
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 00-548-9939 | 30536 ( BAND, MARKER ) |
Drawings & Photos | NSN 5975-00-548-9939
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5975-00-548-9939
Technical Data | NSN 5975-00-548-9939
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY |
| COLOR | NATURAL INSCRIPTION BACKGROUND |
| INSCRIPTION | RECEIVING CABLELG FT AND RESISTANCE DELAY OF INSTALLATION FT |

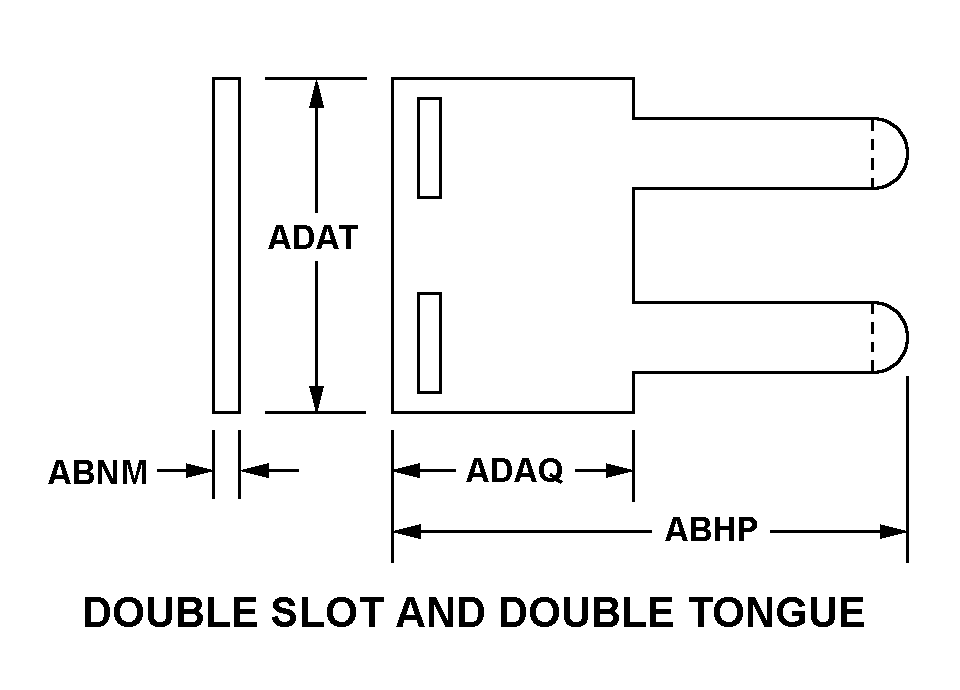

| STYLE DESIGNATOR | A9 DOUBLE SLOT AND DOUBLE TONGUE |
| OVERALL LENGTH | 1.562 INCHES NOMINAL |
| THICKNESS | 0.016 INCHES NOMINAL |
| BODY LENGTH | 0.688 INCHES NOMINAL |
| BODY WIDTH | 2.875 INCHES NOMINAL |
| FEATURES PROVIDED | LEGEND |
Restrictions/Controls & Freight Information | NSN 5975-00-548-9939
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
