NSN 5975-00-529-3835 RE65SA, 00-529-3835, 005293835
Product Details | ELECTRICAL CONDUIT ADAPTER
5975-00-529-3835 An item designed to couple or join two different types or sizes of conduits, and/or to be inserted in the opening of a conduit outlet or box to accommodate a conduit of a larger or smaller size; or it may be designed with internal thread on one end for mating with an electrical connector and an external thread on the other end for mating with a conduit coupling nut; or to establish necessary mechanical accommodations between an electrical conduit, conduit assembly and an electrical connector. Excludes REDUCING WASHER, KNOCKOUT and BOX CONNECTOR, ELECTRICAL. See also ADAPTER, CABLE TO CONNECTOR; and CHASE NIPPLE, CONDUIT.
Part Alternates: RE65SA, 5975-00-529-3835, 00-529-3835, 5975005293835, 005293835
Electrical and Electronic Equipment Components | Electrical Hardware and Supplies
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 SEP 1974 | 00-529-3835 | 06935 ( ADAPTER, ELECTRICAL CONDUIT ) |
Drawings & Photos | NSN 5975-00-529-3835
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5975-00-529-3835
Technical Data | NSN 5975-00-529-3835
| Characteristic | Specifications |
|---|---|

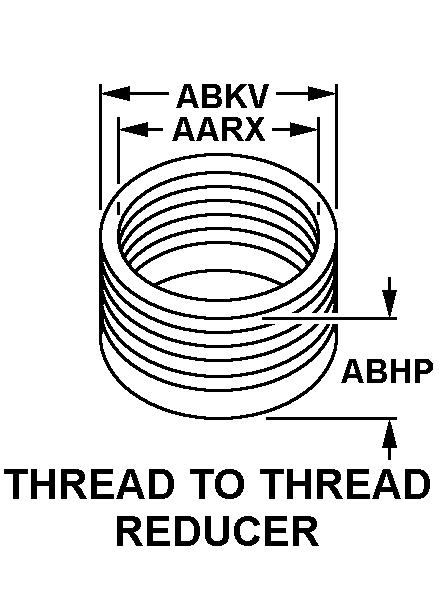

| STYLE DESIGNATOR | A7 THREAD TO THREAD REDUCER |
| OVERALL LENGTH | 1.750 INCHES NOMINAL |
| ITEM ACCOMMODATED TRADE SIZE | 2.000 INCHES FIRST END 1.500 INCHES SECOND END |
| MATERIAL | ALUMINUM |
| SURFACE TREATMENT | LACQUER ALUMINUM CELLULOSE |
| CONDUIT TYPE ACCOMMODATED | RIGID METALLIC THICKWALL FIRST END RIGID METALLIC THICKWALL SECOND END |
| END TYPE | EXTERNAL THREAD FIRST END INTERNAL THREAD SECOND END |
| III SUPPLEMENTARY FEATURES | END ITEM H-3 HELICOPTER SUPPORT EQUIPMENT |
Restrictions/Controls & Freight Information | NSN 5975-00-529-3835
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062010 | FITTINGS CONDUIT NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | 90 | Tennessee Valley Authority Chattanooga, TN 37402-2801 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
