NSN 5975-00-519-7742 UL884, UL-884, 00-519-7742
Product Details | CONDUIT OUTLET
5975-00-519-7742 An item designed to be used in a conduit system for the purpose of providing outlets or attachments for electrical wiring devices and/or designed to provide access and facilitate installment of wires. It may or may not include a cover(s). It does not include wiring devices. Excludes ENTRANCE ELBOW, ELECTRICAL. See also JUNCTION BOX.
Part Alternates: UL884, UL-884, 5975-00-519-7742, 00-519-7742, 5975005197742, 005197742
Electrical and Electronic Equipment Components | Electrical Hardware and Supplies
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-519-7742 | 06945 ( CONDUIT OUTLET ) |
Drawings & Photos | NSN 5975-00-519-7742
Cross Reference | NSN 5975-00-519-7742
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| UL-884 | 81345 | UNDERWRITERS LABORATORIES INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5975-00-519-7742
Technical Data | NSN 5975-00-519-7742
| Characteristic | Specifications |
|---|---|

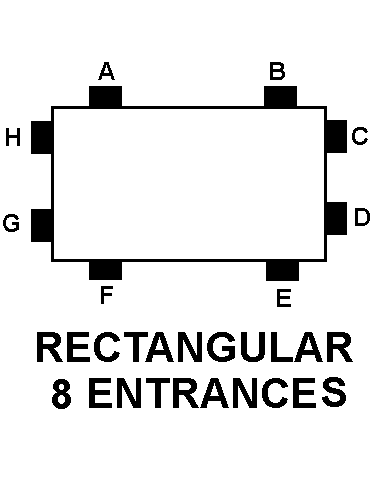

| STYLE DESIGNATOR | B58 RECTANGULAR 8 ENTRANCES |
| OVERALL DEPTH | 3.000 INCHES NOMINAL |
| OVERALL LENGTH | 7.375 INCHES NOMINAL |
| OVERALL WIDTH | 7.375 INCHES NOMINAL |
| CONDUIT ENTRANCE TYPE | HUB DRILLED ALL ENTRANCE |
| CONDUIT TYPE ACCOMMODATED | HUBS A,B,F,AND E ACCOMMODATE THICKWALL NONMETALIC OVAL CONDUIT A ENTRANCE RIGID METALLIC THINWALL B ENTRANCE RIGID METALLIC THINWALL C ENTRANCE RIGID METALLIC THINWALL D ENTRANCE RIGID METALLIC THINWALL E ENTRANCE |
| CONDUIT TRADE SIZE ACCOMMODATED | 1.250 INCHES A ENTRANCE 1.250 INCHES B ENTRANCE 1.250 INCHES C ENTRANCE 1.250 INCHES D ENTRANCE |
| MATERIAL | IRON, CAST OVERALL |
| COVER QUANTITY | 1 |
| HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION | WATERTIGHT-NEMA TYPE 4 |
| SPECIAL FEATURES | HUBES A,B,F,AND E ACCEPT 1.375 BY 2.875 OVAL CONDUIT |
| NONDEFINITIVE SPEC/STD DATA | 1 TYPE |
Restrictions/Controls & Freight Information | NSN 5975-00-519-7742
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
