NSN 5975-00-511-4435 SCD104610, 4-1004507-1, 00-511-4435
Product Details | ELECTRICAL EQUIPMENT RACK
5975-00-511-4435 An open or inclosed frame structure designed to accommodate (but does not include) electrical/electronic equipment mounted on standard width panels so that the equipment may be operated after installation without being removed. It must have panel mounting rails that provide a uniform pattern of mounting holes that will accommodate various combinations of standard width panels. It may include wires, cables, terminal boards, connectors, and the like, required for equipment operation. See also MOUNTING BASE, ELECTRICAL EQUIPMENT; CABINET, ELECTRICAL EQUIPMENT; and CASE (2) (as modified). Excludes MAIN DISTRIBUTING FRAME, TELEPHONE and INTERMEDIATE DISTRIBUTING FRAME, TELEPHONE.
Part Alternates: SCD104610, 4-1004507-1, 5975-00-511-4435, 00-511-4435, 5975005114435, 410045071, 005114435
Electrical and Electronic Equipment Components | Electrical Hardware and Supplies
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-511-4435 | 06353 ( RACK, ELECTRICAL EQUIPMENT ) |
Drawings & Photos | NSN 5975-00-511-4435
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5975-00-511-4435
Technical Data | NSN 5975-00-511-4435
| Characteristic | Specifications |
|---|---|

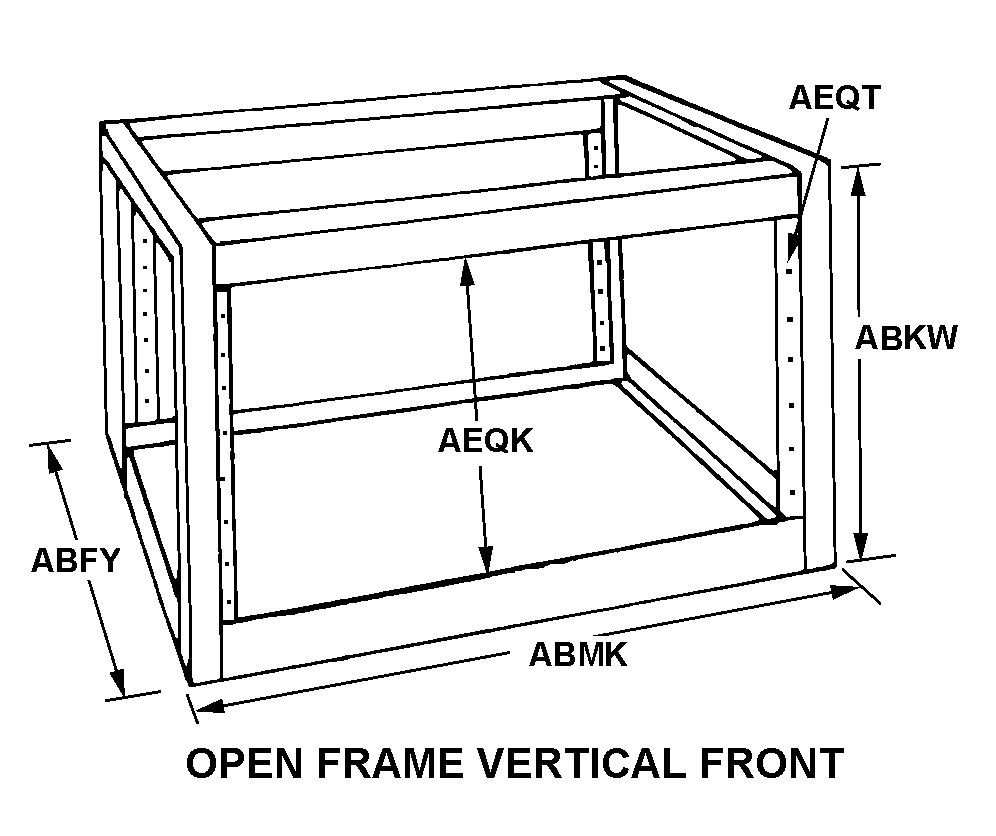

| STYLE DESIGNATOR | H8 OPEN FRAME VERTICAL FRONT |
| OVERALL DEPTH | 16.125 INCHES NOMINAL |
| OVERALL HEIGHT | 15.750 INCHES NOMINAL |
| OVERALL WIDTH | 20.031 INCHES NOMINAL |
| PANEL SPACE HEIGHT | 15.000 INCHES NOMINAL |
| PANEL RAIL THICKNESS | 0.250 INCHES NOMINAL |
| MATERIAL | ALUMINUM ALLOY |
| SURFACE TREATMENT | ENAMEL |
| COLOR | BLACK |
| PANEL WIDTH ACCOMMODATED | 19.000 INCHES NOMINAL |

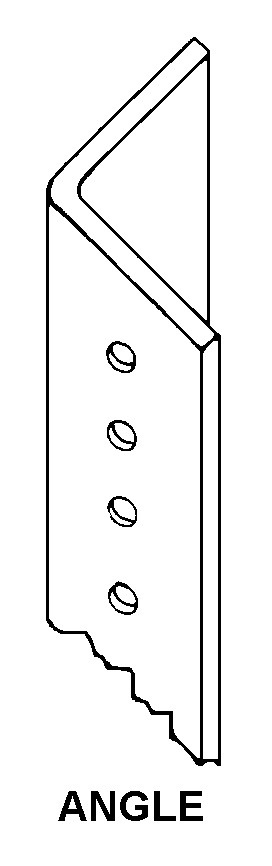

| PANEL MOUNTING RAIL DESIGN STYLE | K1 ANGLE |

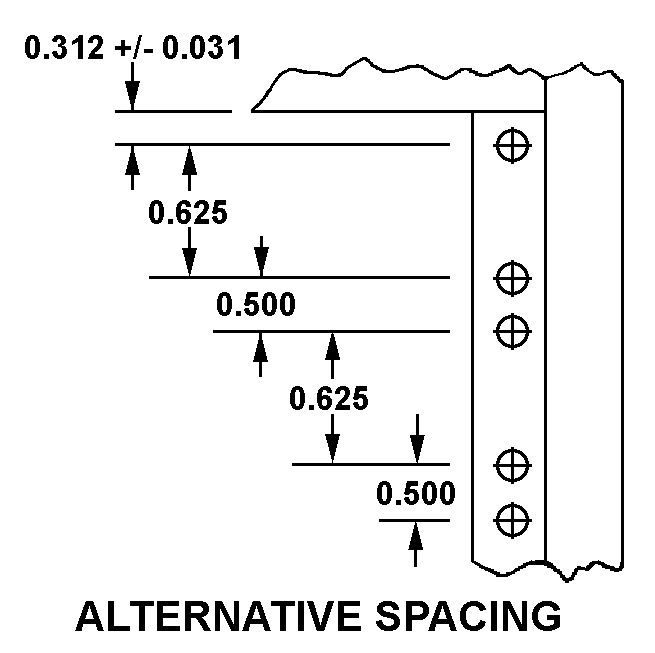

| PANEL MOUNTING RAIL HOLE ARRANGEMENT STYLE | L2 ALTERNATIVE SPACING |
| PANEL MOUNTING RAIL HOLE TYPE | THREADED FRONT MOUNTING RAIL HOLE |
| THREAD SERIES DESIGNATOR | UNF FRONT MOUNTING RAIL HOLE |
| NOMINAL THREAD SIZE | 0.190 INCHES FRONT MOUNTING RAIL HOLE |
| THREAD QUANTITY PER INCH | 32 FRONT MOUNTING RAIL HOLE |
| MANUFACTURERS CODE | 80063 |
| DESIGN CONTROL REFERENCE | SCD104610 |
