NSN 5975-00-504-8028 A22840, 00-504-8028, 005048028
Product Details | ELECTRICAL CABLE NIPPLE
5975-00-504-8028 A preformed item having high electrical resistance designed for installation on end of cable or lead in order to cover the terminal or termination. It may partially cover the terminal of the item to which the cable or lead is attached. May also provide mechanical protection. Excludes INSULATION SLEEVING, ELECTRICAL.
Part Alternates: A22840, 5975-00-504-8028, 00-504-8028, 5975005048028, 005048028
Electrical and Electronic Equipment Components | Electrical Hardware and Supplies
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-504-8028 | 06286 ( CABLE NIPPLE, ELECTRICAL ) |

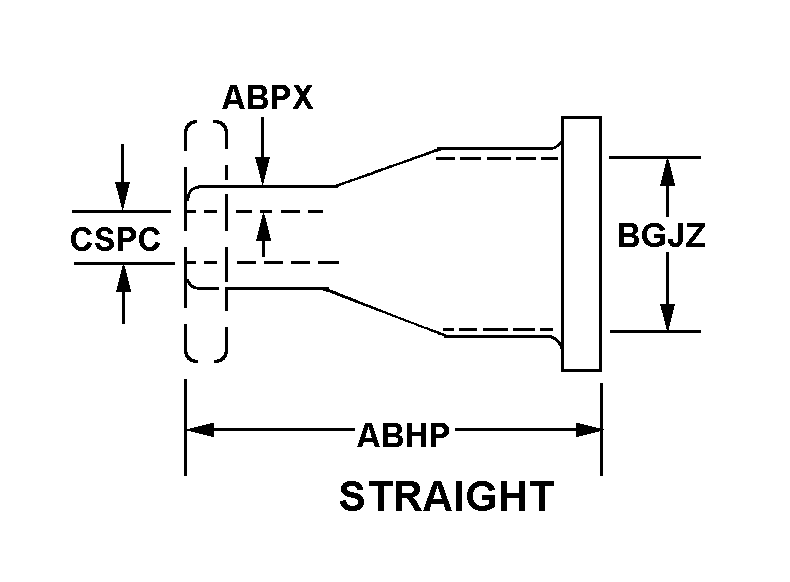

Drawings & Photos | NSN 5975-00-504-8028
Cross Reference | NSN 5975-00-504-8028
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| A22840 | 55176 | AIR PARTS & SUPPLY CO. DBA APSCO AIR PARTS & SUPPLY COMPANY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5975-00-504-8028
Technical Data | NSN 5975-00-504-8028
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | D17 STRAIGHT |
| OVERALL LENGTH | 0.550 INCHES NOMINAL |
| MATERIAL THICKNESS | 0.108 INCHES NOMINAL |
| BASE INSIDE DIAMETER | 0.284 INCHES NOMINAL |
| ACCOMMODATION HOLE INSIDE DIAMETER | 0.274 INCHES NOMINAL |
| MATERIAL | RUBBER BODY |
| FLEXIBILITY | FLEXIBLE |
Restrictions/Controls & Freight Information | NSN 5975-00-504-8028
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
