NSN 5975-00-504-7643 WJ800, 72C6, 00-504-7643
Product Details | JUNCTION BOX COVER
5975-00-504-7643 A cover containing facilities for mounting directly on a JUNCTION BOX. It may have provisions for the insertion and/or mounting of electrical devices, such as switches, connectors, additional covers, and jewels. It may include the jewel(s). For covers having facilities for mounting on brackets or on current carrying devices such as switches and receptacle connectors, see PLATE, WALL, ELECTRICAL. See also COVER, CONDUIT OUTLET.
Part Alternates: WJ800, 72C6, 5975-00-504-7643, 00-504-7643, 5975005047643, 005047643
Electrical and Electronic Equipment Components | Electrical Hardware and Supplies
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-504-7643 | 13702 ( COVER, JUNCTION BOX ) |
Drawings & Photos | NSN 5975-00-504-7643
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5975-00-504-7643
Technical Data | NSN 5975-00-504-7643
| Characteristic | Specifications |
|---|---|

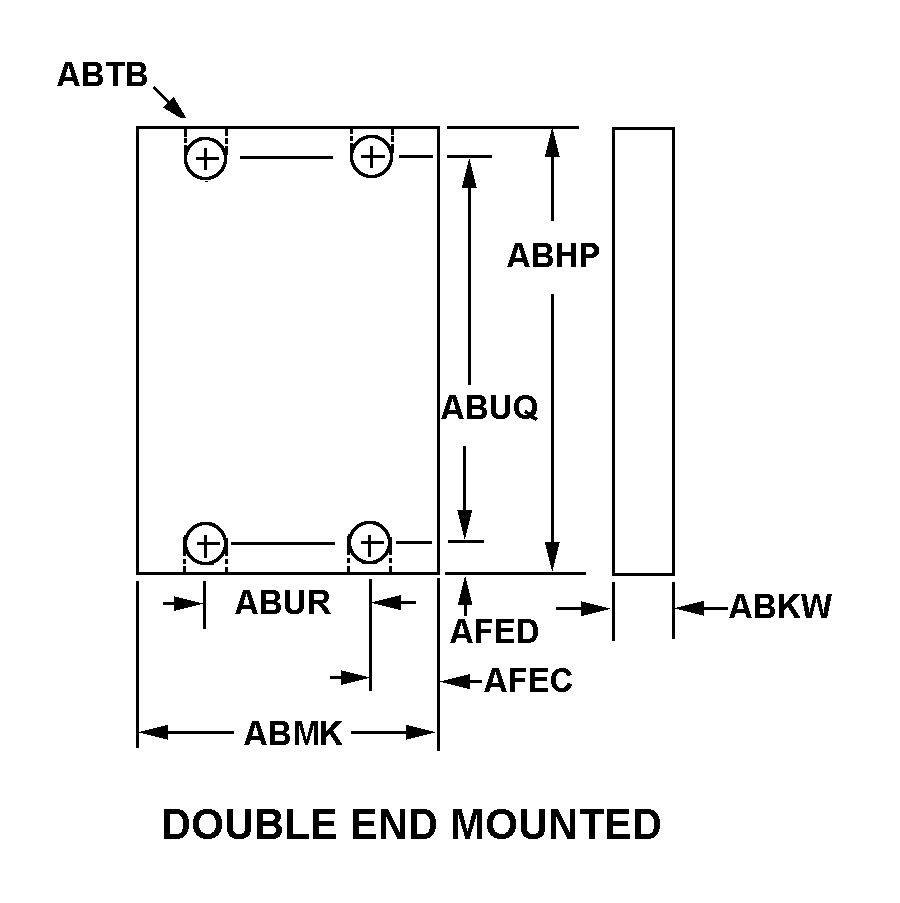

| STYLE DESIGNATOR | A3 DOUBLE END MOUNTED |
| OVERALL LENGTH | 4.875 INCHES NOMINAL |
| OVERALL HEIGHT | 0.073 INCHES NOMINAL |
| OVERALL WIDTH | 4.875 INCHES NOMINAL |
| FIRST CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES | 4.250 INCHES NOMINAL |
| SECOND CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES | 2.750 INCHES NOMINAL |
| DISTANCE FROM CENTER OF MOUNTING HOLE TO EDGE ALONG THE WIDTH | 1.062 INCHES NOMINAL |
| DISTANCE FROM CENTER OF MOUNTING HOLE TO EDGE ALONG THE LENGTH | 0.312 INCHES NOMINAL |
| COVER MOUNTING HOLE QUANTITY | 4 |
| COVER TYPE | KNOCKOUT |
| MATERIAL | STEEL COVER |
| SURFACE TREATMENT | ZINC COVER |
| COVER ATTACHMENT METHOD | SCREW |
| NONDEFINITIVE SPEC/STD DATA | 8 TYPE AND T SIZE AND 50 STYLE |
| DEPARTURE FROM CITED DESIGNATOR | AS MODIFIED BY COVER TYPE AND ENTRANCE LOCATION |
| MANUFACTURERS CODE | 81348 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | WJ800 |
Restrictions/Controls & Freight Information | NSN 5975-00-504-7643
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
