NSN 5975-00-355-4744 9000S6202F73937SIZE0B, 00-355-4744, 003554744
Product Details | STUFFING TUBE PLUG
5975-00-355-4744 An item designed to be fitted into the body of a STUFFING TUBE in order to prevent the leakage of liquids and/or gases through the opening in the absence of the cable normally passing through the tube.
Part Alternates: 9000S6202F73937SIZE0B, 5975-00-355-4744, 00-355-4744, 5975003554744, 003554744
Electrical and Electronic Equipment Components | Electrical Hardware and Supplies
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-355-4744 | 03882 ( PLUG, STUFFING TUBE ) |

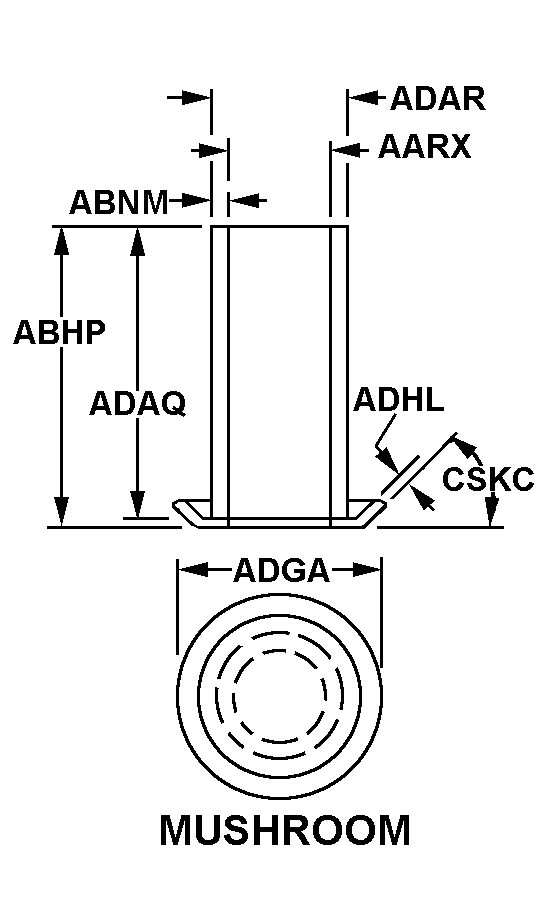

Drawings & Photos | NSN 5975-00-355-4744
Cross Reference | NSN 5975-00-355-4744
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 9000S6202F73937SIZE0B | 80064 | NAVAL SHIP SYSTEMS COMMAND |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5975-00-355-4744
Technical Data | NSN 5975-00-355-4744
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | ZINC OVERALL |
| SIZE | 0.281 INCHES NOMINAL |
| STYLE DESIGNATOR | 31 MUSHROOM |
| OVERALL LENGTH | 1.062 INCHES NOMINAL |
| BODY LENGTH | 1.000 INCHES NOMINAL |
| BODY OUTSIDE DIAMETER | 0.250 INCHES NOMINAL |
| OVERALL OUTSIDE DIAMETER | 0.625 INCHES NOMINAL |
| DISK THICKNESS | 0.062 INCHES NOMINAL |
| TAPER ANGLE | 45.0 DEGREES NOMINAL |
| SPECIAL MARKINGS | 0B |
| MANUFACTURERS CODE | 80064 |
| DESIGN CONTROL REFERENCE | 9000S6202F73937SIZE0B |
Restrictions/Controls & Freight Information | NSN 5975-00-355-4744
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 063520 | WAVEGUIDE IN BOXES/CRATES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 723 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5975-00-355-4744
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
A EA : Each |
