NSN 5975-00-351-8434 27100, 27-100, 306V
Product Details | ELECTRICAL BOX CONNECTOR
5975-00-351-8434 An item designed to mechanically connect in a straight line or an angle electrical conduit, conduit assemblies, wire, wireway, cable, or cable assemblies to a point of termination, such as a junction box, conduit outlet, or the like. The termination end must have an external thread with a boss or shoulder and may be furnished with a locknut or bondnut; or, must have internal thread with which is furnished an externally threaded hub with a wrenching feature; or be of a snap-in type that may be installed from either inside or outside the box and secured with a captive screw. It is not intended to join conduit to conduit. For angle type items having a male thread without a boss or shoulder, see ELBOW, ELECTRICAL CONDUIT. Does not include facilities to mount wiring devices. Excludes CHASE NIPPLE, CONDUIT.
Part Alternates: 27100, 27-100, 306V, 529, 5975-00-351-8434, 00-351-8434, 5975003518434, 003518434
Electrical and Electronic Equipment Components | Electrical Hardware and Supplies
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-351-8434 | 09663 ( BOX CONNECTOR, ELECTRICAL ) |
Drawings & Photos | NSN 5975-00-351-8434
Demand History | NSN 5975-00-351-8434
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 27100 | 2018-05-141 | 20 | South Africa |
| 27100 | 2011-07-187 | 1 | PL |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5975-00-351-8434
Technical Data | NSN 5975-00-351-8434
| Characteristic | Specifications |
|---|---|

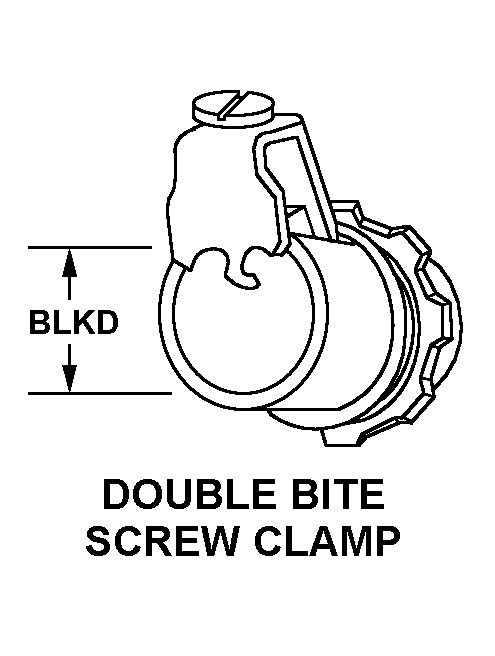

| STYLE DESIGNATOR | A20 DOUBLE BITE SCREW CLAMP |
| ITEM ACCOMMODATED TRADE SIZE | 1.000 INCHES FIRST END |
| MATERIAL | IRON MALLEABLE |
| SURFACE TREATMENT | CADMIUM |
| CONDUIT TYPE ACCOMMODATED | FLEXIBLE METALLIC FIRST END |
| END TYPE | DOUBLE BIT SCREW CLAMP FIRST END EXTERNAL THREAD SECOND END |
| FURNISHED ITEMS | LOCKNUT |
Restrictions/Controls & Freight Information | NSN 5975-00-351-8434
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062010 | FITTINGS CONDUIT NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
