NSN 5975-00-296-4756 M24142/6-001, M241426001, MIL-E-24142/6

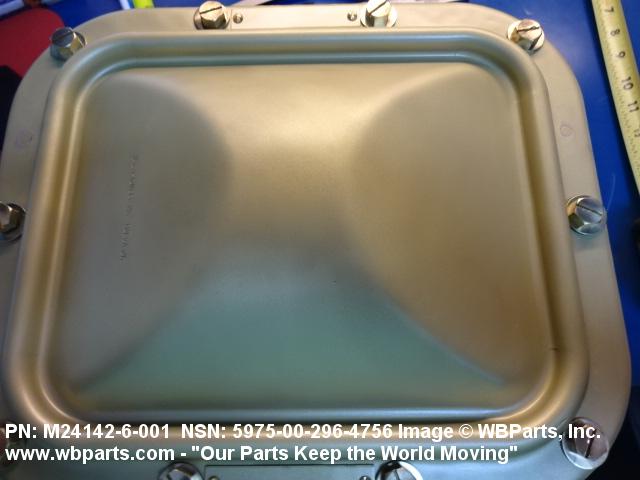

Product Details | JUNCTION BOX
5975-00-296-4756 An enclosure of other than cast metal designed to house, mount, and protect, but does not include wiring connections or electrical device(s) such as terminals and/or terminal boards, switches, jacks, fuseholders, connectors, circuit breakers and the like. It is designed for and may include a cover and such accessories as mounting hardware, brackets, locks, clamps, mounts and conduit fittings. Excludes CONDUIT OUTLET; and CHAMBER, CABLE TERMINAL. For boxes which include electrical device(s) such as terminals and/or terminal boards, switches, fuseholders, jacks, connectors, circuit breakers and the like, or combinations thereof, see SWITCH BOX; FUZE BOX; JACK BOX; TERMINAL BOX; CIRCUIT BREAKER BOX; and DISTRIBUTION BOX. For boxes wired to provide the interconnecting facilities for a specific major group of electronic items outside of the box, see INTERCONNECTING BOX. See also INTERCONNECTING CABINET.
Part Alternates: M24142/6-001, M241426001, MIL-E-24142/6, MILE241426, 5975-00-296-4756, 00-296-4756, 5975002964756, 002964756
Electrical and Electronic Equipment Components | Electrical Hardware and Supplies
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-296-4756 | 06219 ( JUNCTION BOX ) |

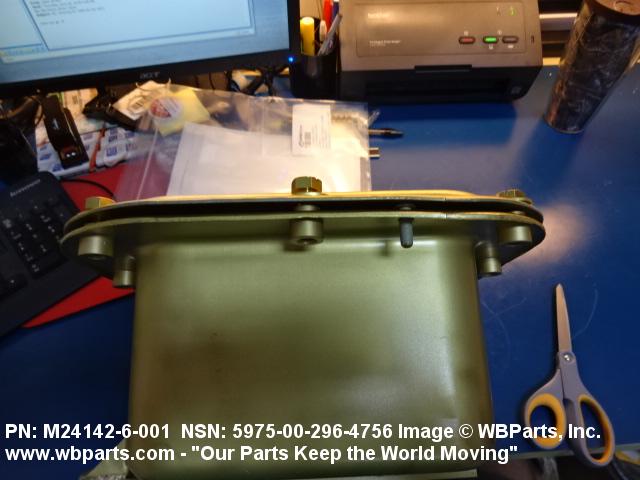

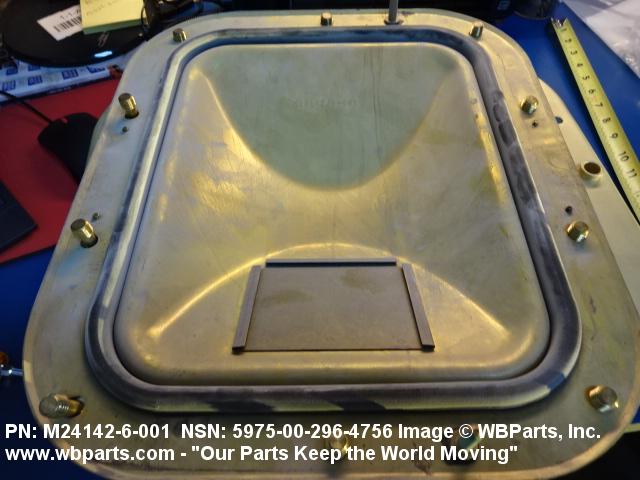

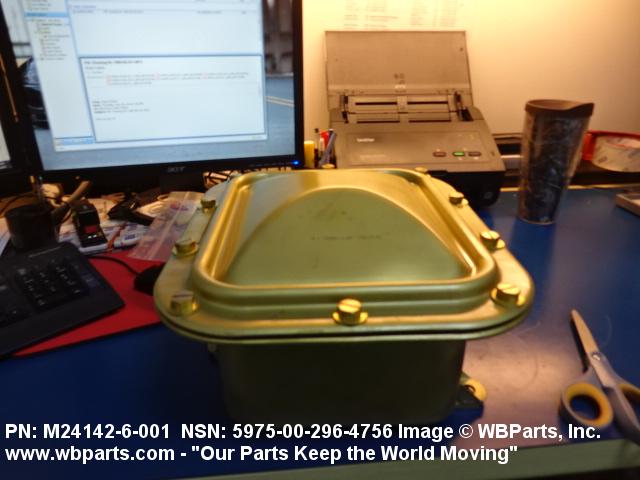

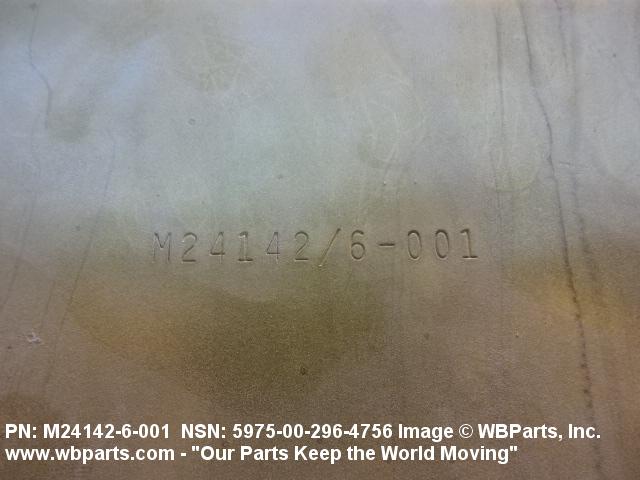

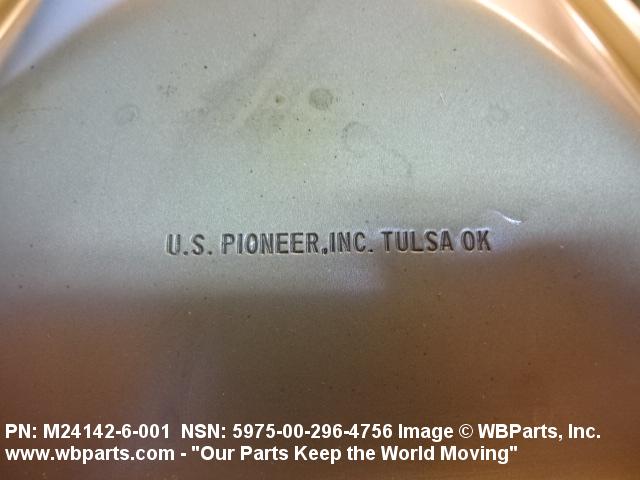

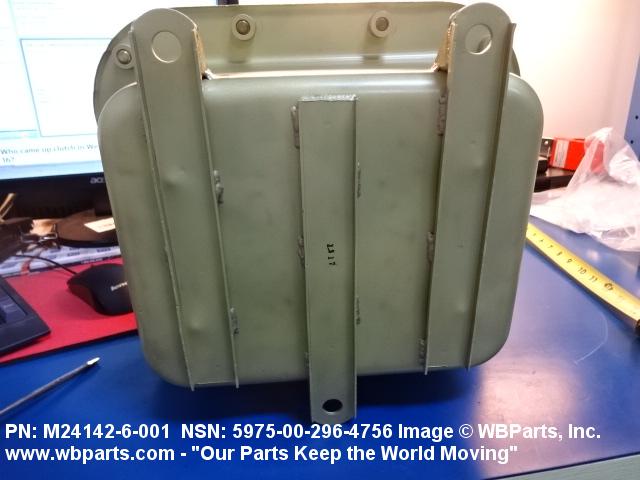

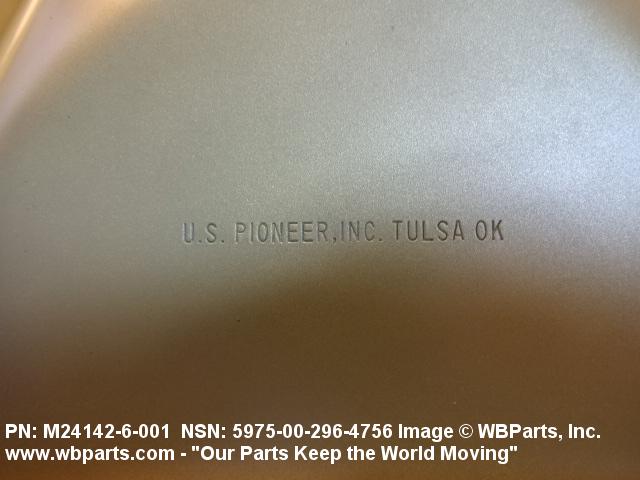

Drawings & Photos | NSN 5975-00-296-4756
Demand History | NSN 5975-00-296-4756
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5975-00-296-4756 | 2024-11-325 | 1 | United States |
| 5975-00-296-4756 | 2023-11-320 | 65 | DIBBS |
| 5975-00-296-4756 | 2022-05-122 | 130 | DIBBS |
| 5975-00-296-4756 | 2022-02-32 | 5 | US |
| 5975-00-296-4756 | 2021-10-284 | 73 | United States |
| 5975-00-296-4756 | 2021-10-279 | 71 | DIBBS |
| 5975-00-296-4756 | 2021-07-182 | 71 | DIBBS |
| 5975-00-296-4756 | 2020-09-254 | 37 | DIBBS |
| 5975-00-296-4756 | 2020-07-189 | 12 | DIBBS |
| 5975-00-296-4756 | 2019-11-323 | 150 | United States |
| 5975-00-296-4756 | 2018-11-333 | 23 | DIBBS |
| M241426001 | 2018-08-226 | 1 | us |
| M241426001 | 2018-06-173 | 1 | United States |
| 5975-00-296-4756 | 2017-12-352 | 1 | us |
| 5975-00-296-4756 | 2017-12-352 | 1 | United States |
| M241426001 | 2017-12-340 | 5 | United States |
| 5975-00-296-4756 | 2014-10-303 | 30 | DIBBS |
| 5975-00-296-4756 | 2012-05-135 | 50 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5975-00-296-4756
Technical Data | NSN 5975-00-296-4756

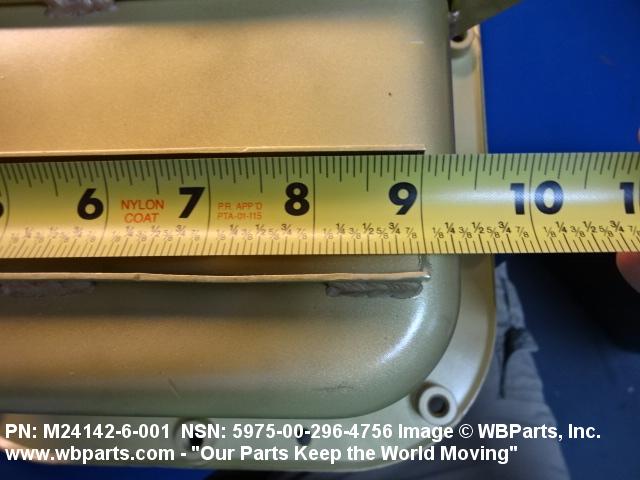

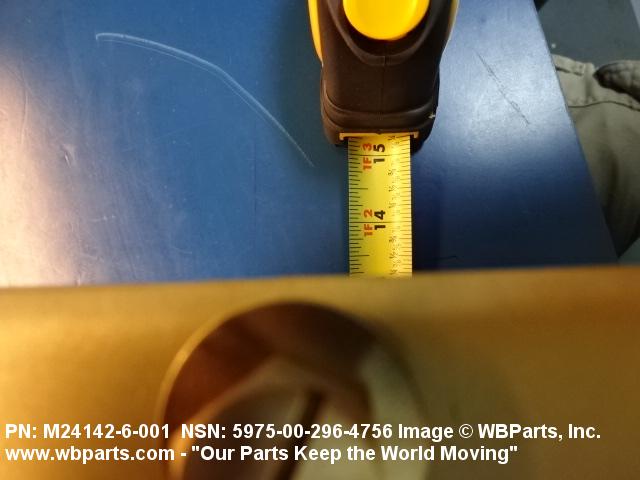

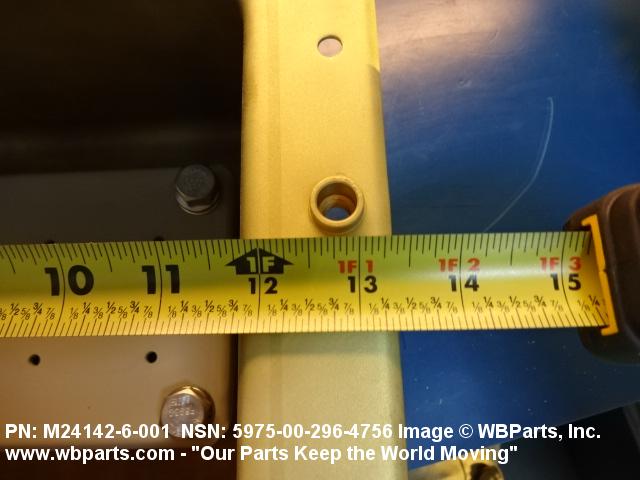

| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | C17 LARGE RECTANGULAR-THREE POINT MTG-SHALLOW BOX |
| OVERALL LENGTH | 13.375 INCHES NOMINAL |

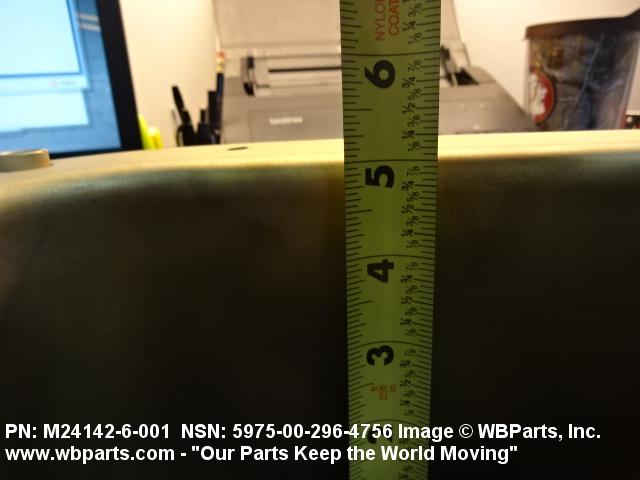

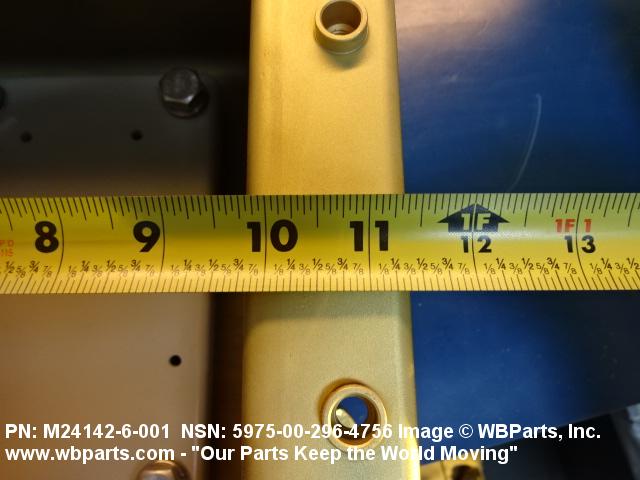

| OVERALL HEIGHT | 7.500 INCHES NOMINAL |
| OVERALL WIDTH | 11.375 INCHES NOMINAL |
| FIRST CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES | 6.250 INCHES NOMINAL |
| SECOND CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES | 9.438 INCHES NOMINAL |

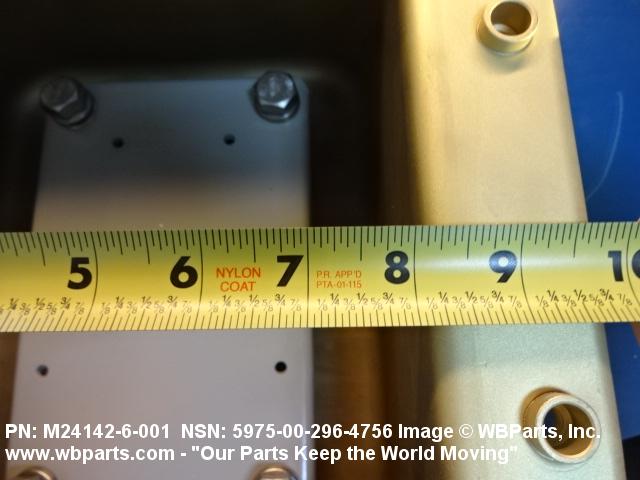

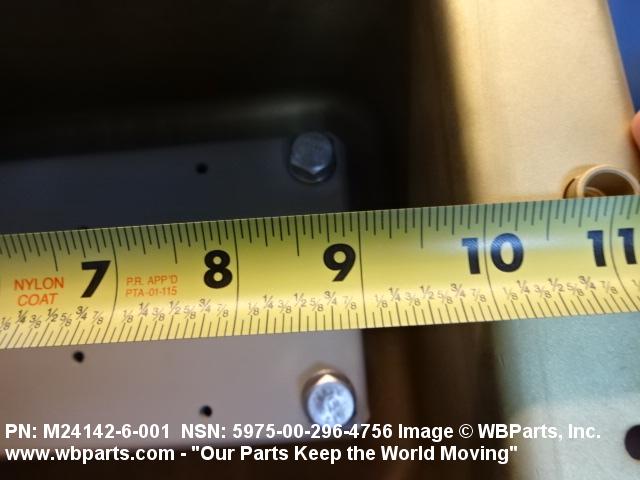

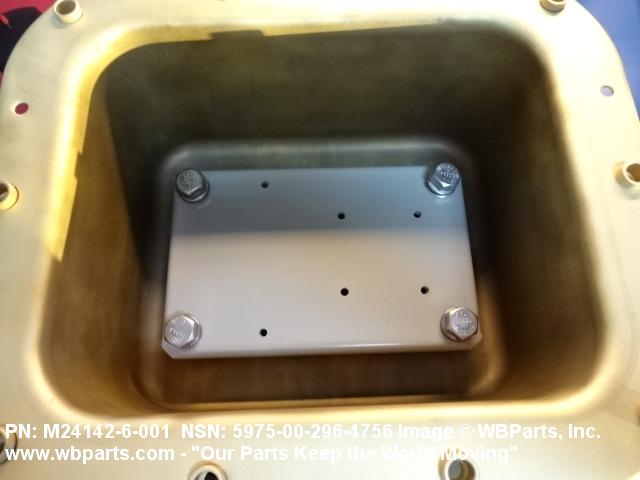

| INSIDE WIDTH | 8.000 INCHES NOMINAL |
| INSIDE LENGTH | 10.000 INCHES NOMINAL |
| INSIDE DEPTH | 5.000 INCHES NOMINAL |

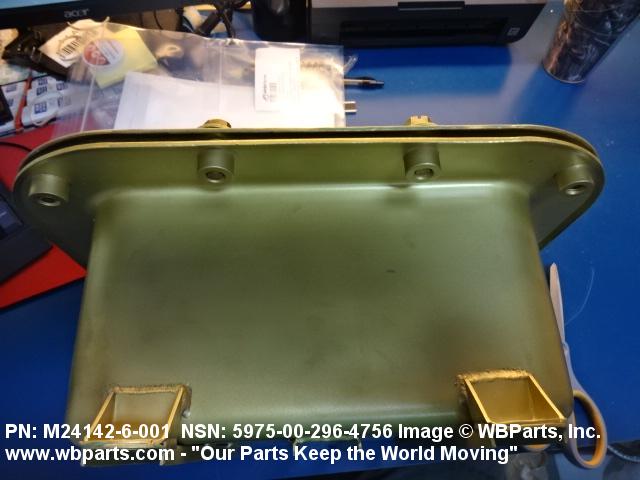

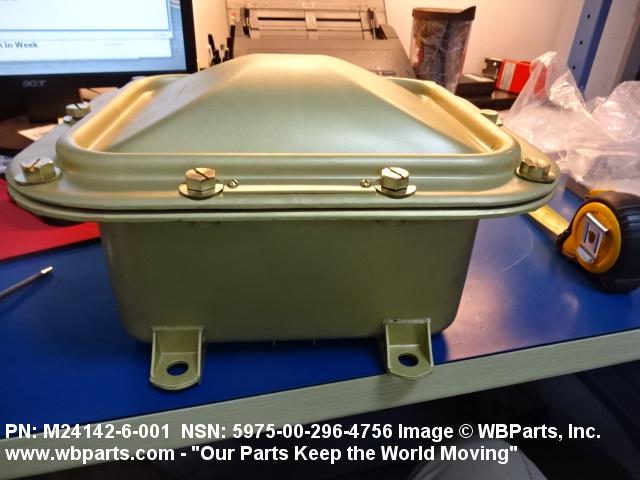

| MOUNTING FEET LENGTH | 9.000 INCHES NOMINAL |
