NSN 5975-00-284-6648 00-284-6648, 002846648
Product Details | ELECTRICAL WALL PLATE
5975-00-284-6648 An item designed to mount directly on a bracket or an electrical current carrying wiring device(s) such as switch(es) or outlet(s) (receptacle). The bracket(s) or electrical current carrying device is mounted in a JUNCTION BOX. For trade designated items designed to be attached directly on or through a bracket or electrical wiring device to a CONDUIT OUTLET, see COVER, CONDUIT OUTLET. For items designed for mounting directly on a JUNCTION BOX, see COVER, JUNCTION BOX.
Part Alternates: 5975-00-284-6648, 00-284-6648, 5975002846648, 002846648
Electrical and Electronic Equipment Components | Electrical Hardware and Supplies
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-284-6648 | 07716 ( PLATE, WALL, ELECTRICAL ) |
Drawings & Photos | NSN 5975-00-284-6648
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5975-00-284-6648
Technical Data | NSN 5975-00-284-6648
| Characteristic | Specifications |
|---|---|
| UNIT TYPE | OUTLET OR SWITCH |
| MATERIAL | BRASS |
| MATERIAL THICKNESS | 0.040 INCHES NOMINAL |
| SURFACE TREATMENT | BRUSH |
| COLOR | NATURAL |
| GANG QUANTITY | 2 |
| OPENING QUANTITY | 1 |

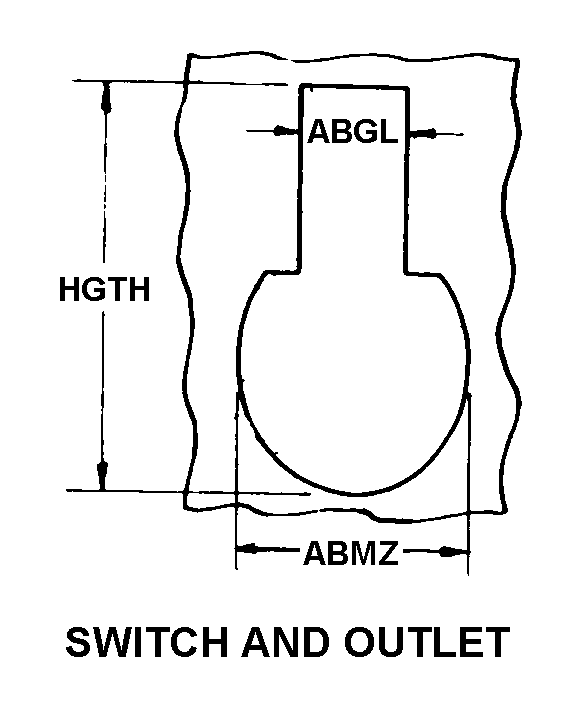

| OPENING STYLE DESIGNATOR | 4 SWITCH AND OUTLET |
| WIDTH | 0.406 INCHES NOMINAL |
| DIAMETER | 1.355 INCHES NOMINAL |
| HEIGHT | 1.000 INCHES MINIMUM AND 1.140 INCHES MAXIMUM |
| INSULATING ADAPTER | NOT INCLUDED |
| COVER | NOT PROVIDED |
| CENTER TO CENTER VERTICAL DISTANCE BETWEEN OPENINGS | 1.531 INCHES NOMINAL |
| CENTER TO CENTER HORIZONTAL DISTANCE BETWEEN GANG CENTERS | 1.812 INCHES NOMINAL |
| LENGTH | 4.625 INCHES |
| WIDTH | 4.562 INCHES |
| MOUNTING HOLE QUANTITY | 3 |
| NONDEFINITIVE SPEC/STD DATA | 182 STYLE |
Restrictions/Controls & Freight Information | NSN 5975-00-284-6648
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
