NSN 5975-00-280-9697 1173B0750, 117-3B0750, 00-280-9697
Product Details | ELECTRICAL CONDUIT FERRULE
5975-00-280-9697 An item usually of one piece construction, but which may be comprised of more than one piece, designed to be affixed permanently or temporarily to the end of an electrical conduit to form an end fitting. Unflanged items form a permanent end fitting which affords mechanical protection to emerging conductors. Flanged items are used with another fitting normally a conduit coupling nut, to make the conduit adaptable for connection to an electrical connector, junction box or other conduit accessory or fitting. Excludes RING, ELECTRICAL BONDING; BUSHING, ELECTRICAL CONDUIT; and BUSHING, PLAIN SLEEVE. See also FERRULE-NUT COUPLING, ELECTRICAL CONDUIT.
Part Alternates: 1173B0750, 117-3B0750, 5975-00-280-9697, 00-280-9697, 5975002809697, 002809697
Electrical and Electronic Equipment Components | Electrical Hardware and Supplies
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-280-9697 | 08089 ( FERRULE, ELECTRICAL CONDUIT ) |
Drawings & Photos | NSN 5975-00-280-9697
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5975-00-280-9697
Technical Data | NSN 5975-00-280-9697
| Characteristic | Specifications |
|---|---|
| DUCT TYPE FOR WHICH DESIGNED | FLEXIBLE METALLIC CONDUIT |
| DUCT NOMINAL DIAMETER | 0.750 INCHES |

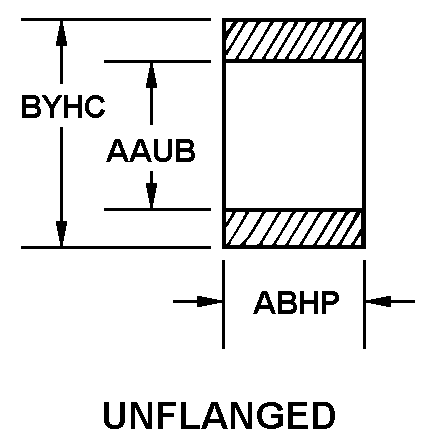

| STYLE DESIGNATOR | 22 UNFLANGED |
| MATERIAL | BRASS |
| SURFACE TREATMENT | NICKEL PLATED |
| CONNECTION METHOD | SWAGE |
Restrictions/Controls & Freight Information | NSN 5975-00-280-9697
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5975-00-280-9697
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9G | Navy-owned stocks of defense general material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9G | Defense Supply Center Richmond Richmond, VA 23297 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
