NSN 5975-00-267-2768 102B, 00-267-2768, 002672768
Product Details | FANNING STRIP
5975-00-267-2768 An item made of rigid or semirigid insulating material for spacing or separating wire(s) and/or cable(s). For items having terminals, see TERMINAL BOARD; and INSULATOR (as modified).
Part Alternates: 102B, 5975-00-267-2768, 00-267-2768, 5975002672768, 002672768
Electrical and Electronic Equipment Components | Electrical Hardware and Supplies
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-267-2768 | 00408 ( FANNING STRIP ) |

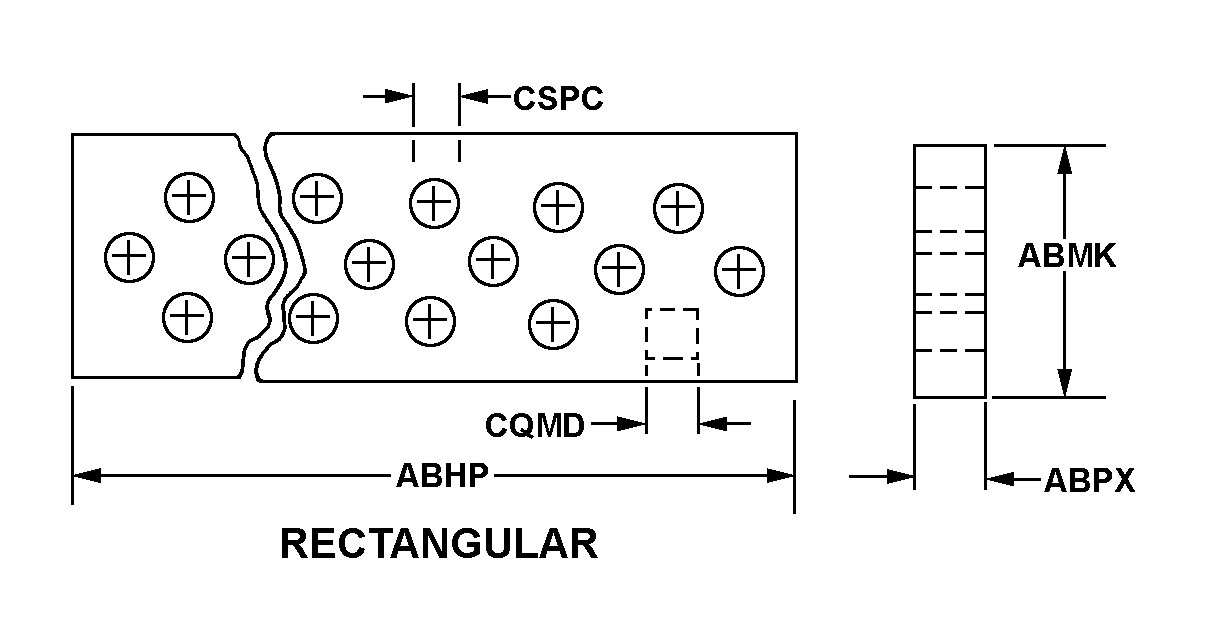

Drawings & Photos | NSN 5975-00-267-2768
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5975-00-267-2768
Technical Data | NSN 5975-00-267-2768
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | H2 RECTANGULAR |
| OVERALL LENGTH | 9.625 INCHES NOMINAL |
| OVERALL WIDTH | 2.719 INCHES NOMINAL |
| MATERIAL THICKNESS | 1.875 INCHES NOMINAL |
| ACCOMMODATION HOLE WIDTH | 0.375 INCHES NOMINAL |
| ACCOMMODATION HOLE INSIDE DIAMETER | 0.375 INCHES NOMINAL |
| MATERIAL | WOOD BODY |
| SURFACE TREATMENT | ANY ACCEPTABLE BODY |
| MOUNTING METHOD | BRACKET |
| MOUNTING DEVICE QUANTITY | 2 |
| CONDUCTOR ACCOMMODATION QUANTITY | 11 |
| FLEXIBILITY | RIGID |
| SPECIAL FEATURES | INCLUDES SHEET METAL MTG BRACKET AND UNATTACHED FIBER FANNING STRIP WITH TWENTY-TWO SLOTTED WIRE OPENINGS |
Restrictions/Controls & Freight Information | NSN 5975-00-267-2768
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 063240 | SWITCHBOARDS/PARTS NOI |
| Less than car load rating | ||
| Less than truck load rating | M | 85.0 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5975-00-267-2768
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9G | Navy-owned stocks of defense general material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9G | Defense Supply Center Richmond Richmond, VA 23297 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
