NSN 5975-00-195-1543 UNL215, 00-195-1543, 001951543
Product Details | ELECTRICAL CONDUIT UNION
5975-00-195-1543 An item comprising three members, so constructed that one of the members holds the remaining two in a fixed butted position; generally used to connect two conduits, conduit fittings, or a conduit and a conduit fitting in such a manner that they may be disconnected without disturbing the rest of the conduit line. See also COUPLING, ELECTRICAL CONDUIT.
Part Alternates: UNL215, 5975-00-195-1543, 00-195-1543, 5975001951543, 001951543
Electrical and Electronic Equipment Components | Electrical Hardware and Supplies
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 18 MAR 1973 | 00-195-1543 | 06943 ( UNION, ELECTRICAL CONDUIT ) |
Drawings & Photos | NSN 5975-00-195-1543
Cross Reference | NSN 5975-00-195-1543
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| UNL215 | 15235 | CROUSE-HINDS CO |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5975-00-195-1543
Technical Data | NSN 5975-00-195-1543
| Characteristic | Specifications |
|---|---|

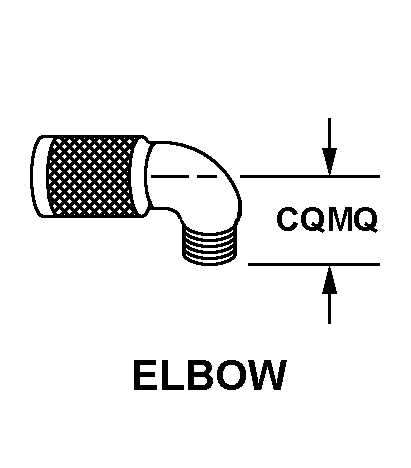

| STYLE DESIGNATOR | A54 ELBOW |
| LEG END TO PLANE OF BEND DISTANCE | 2.250 INCHES NOMINAL FIRST END 1.625 INCHES NOMINAL SECOND END |
| ITEM ACCOMMODATED TRADE SIZE | 0.750 INCHES FIRST END 0.500 INCHES SECOND END |
| MATERIAL | IRON |
| SURFACE TREATMENT | CADMIUM |
| CONDUIT TYPE ACCOMMODATED | RIGID METALLIC THICKWALL FIRST END RIGID METALLIC THICKWALL SECOND END |
| END TYPE | INTERNAL THREAD FIRST END EXTERNAL THREAD SECOND END |
| DEFLECTION ANGLE | 90.0 DEGREES |
| HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION | EXPLOSION PROOF NEC CL.I, GP.ABCD;CL.II, GP.EFG;CL.III |
| III SUPPLEMENTARY FEATURES | END ITEM MX PEACEKEEPER MISSILE |
Restrictions/Controls & Freight Information | NSN 5975-00-195-1543
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062010 | FITTINGS CONDUIT NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | CX | Defense Supply Center Richmond Richmond, VA 23297-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
