NSN 5975-00-159-5258 N9030 1-4, N903014, 1088194
Product Details | DUST AND MOISTURE SEAL BOOT
5975-00-159-5258 A flexible, nonmetallic item designed to prevent entry of dust, moisture and other contaminants into critical areas around shafts, levers, electrical wires and hoses. Sealing may be either static or dynamic. The item may include mounting hardware (support plates, clamps and the like). Excludes BELLOWS, PROTECTION; GROMMET, NONMETALLIC; and CABLE NIPPLE, ELECTRICAL. See also CAP, ELECTRICAL; CAP, PROTECTIVE, DUST AND MOISTURE SEAL; and SHIELD, ELECTRICAL CONNECTOR.20253400020Hardware, Commercial59300008Switches
Part Alternates: N9030 1-4, N903014, 1088194, 22714952, 2271495-2, 5975-00-159-5258, 00-159-5258, 5975001595258, 001595258
Electrical and Electronic Equipment Components | Electrical Hardware and Supplies
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 21 AUG 1972 | 00-159-5258 | 19302 ( BOOT, DUST AND MOISTURE SEAL ) |
Drawings & Photos | NSN 5975-00-159-5258
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5975-00-159-5258
Technical Data | NSN 5975-00-159-5258
| Characteristic | Specifications |
|---|---|

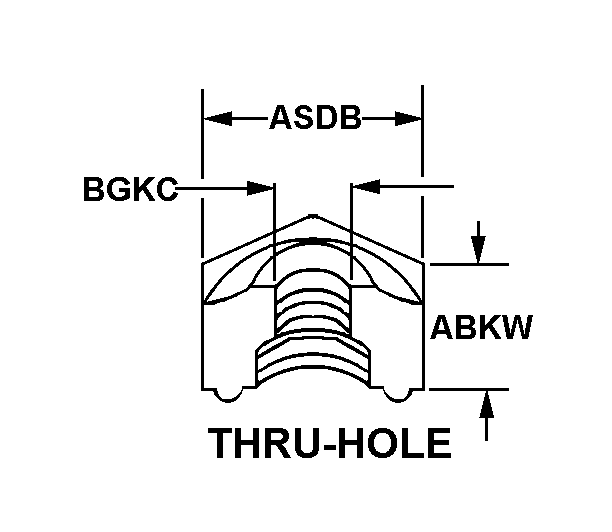

| STYLE DESIGNATOR | A42 THRU-HOLE |
| OVERALL HEIGHT | 0.219 INCHES NOMINAL |
| WIDTH ACROSS FLATS | 0.500 INCHES NOMINAL |
| OPENING INSIDE DIAMETER | 0.250 INCHES NOMINAL |
| MATERIAL | RUBBER SILICONE BODY |
| HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION | ACID RESISTANT AND WATERTIGHT-NEMA TYPE 4 AND WEATHERPROOF-NEMA TYPE 3 |
| MOUNTING METHOD | THREAD |
| MOUNTING DEVICE QUANTITY | 1 |
| SEALING METHOD | PACKING |
| BASE THREAD LOCATION | INTERNAL |
| THREAD SERIES | UNEF |
| NOMINAL THREAD SIZE | 0.375 INCHES |
| THREAD CLASS | 2B |
| MANUFACTURERS CODE | 97539 |
| DESIGN CONTROL REFERENCE | N9030 1-4 |
Restrictions/Controls & Freight Information | NSN 5975-00-159-5258
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 5975-00-159-5258
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9N | Navy-owned stocks of defense electronic material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | N35 | Naval Inventory Control Point Mechanicsburg, PA 17055-0788 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | C | SERVICE/AGENCY-MANAGED (Service/Agency use only.) # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by individual Services supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
