NSN 5975-00-153-6398 AA59214, A-A-59214, AA592142A4
Product Details | JUNCTION BOX
5975-00-153-6398 An enclosure of other than cast metal designed to house, mount, and protect, but does not include wiring connections or electrical device(s) such as terminals and/or terminal boards, switches, jacks, fuseholders, connectors, circuit breakers and the like. It is designed for and may include a cover and such accessories as mounting hardware, brackets, locks, clamps, mounts and conduit fittings. Excludes CONDUIT OUTLET; and CHAMBER, CABLE TERMINAL. For boxes which include electrical device(s) such as terminals and/or terminal boards, switches, fuseholders, jacks, connectors, circuit breakers and the like, or combinations thereof, see SWITCH BOX; FUZE BOX; JACK BOX; TERMINAL BOX; CIRCUIT BREAKER BOX; and DISTRIBUTION BOX. For boxes wired to provide the interconnecting facilities for a specific major group of electronic items outside of the box, see INTERCONNECTING BOX. See also INTERCONNECTING CABINET.
Part Alternates: AA59214, A-A-59214, AA592142A4, AA59214-2A4, SP52151S, WJ800, W-J-800, FEDSTD128, 52151-1-2-3-4, 52151SPL, 1180703, 192, 2410, 4SSP, 4SSPECIAL, 4SSPL, 500-1090-01 , 52151 SPL, 5975-00-153-6398, 00-153-6398, 5975001536398, 001536398, 521511234, 500109001
Electrical and Electronic Equipment Components | Electrical Hardware and Supplies
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1961 | 00-153-6398 | 06219 ( JUNCTION BOX ) |

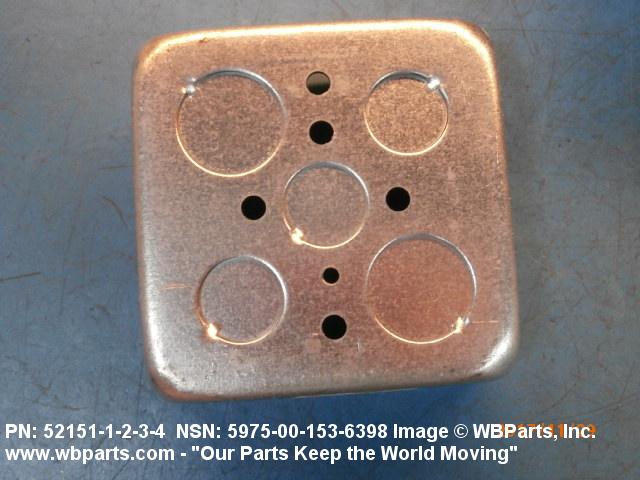

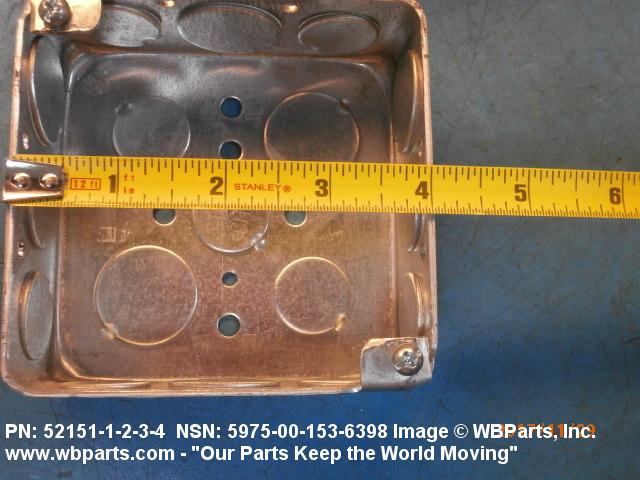

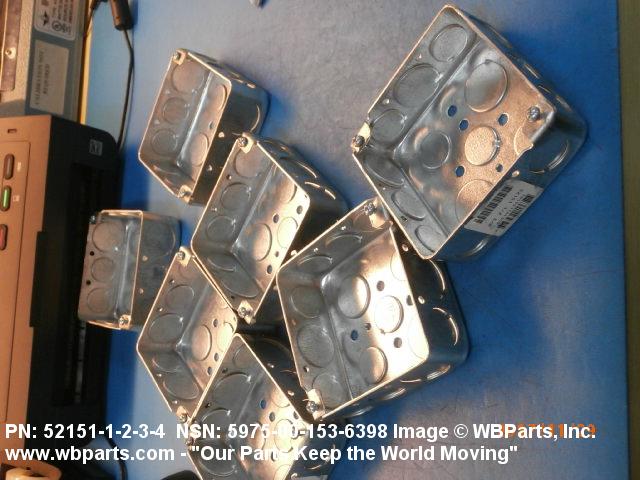

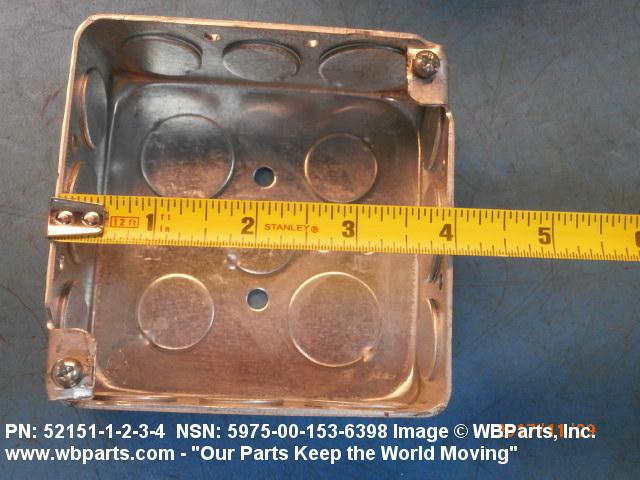

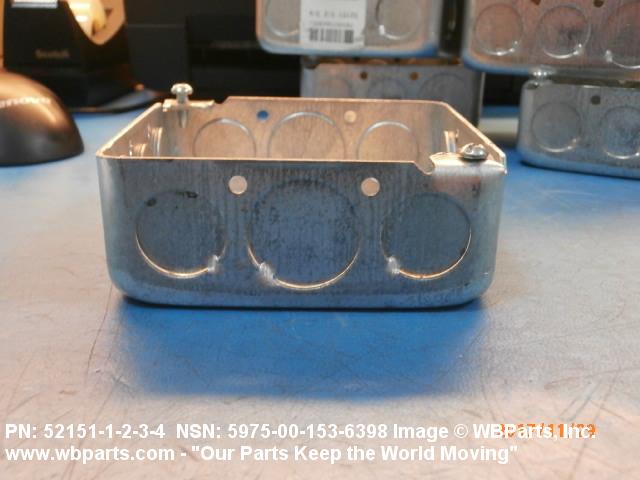

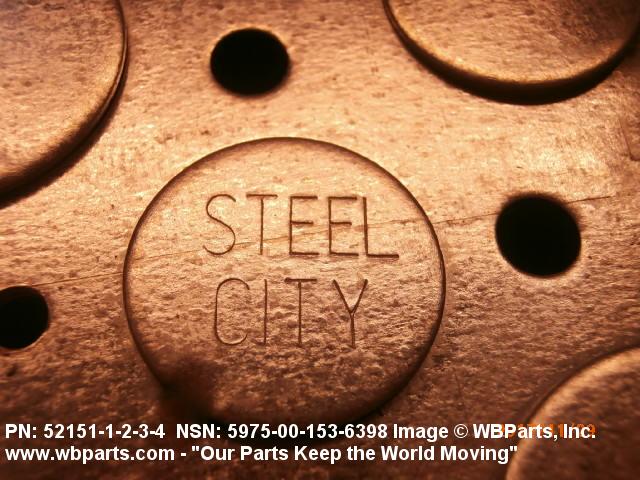

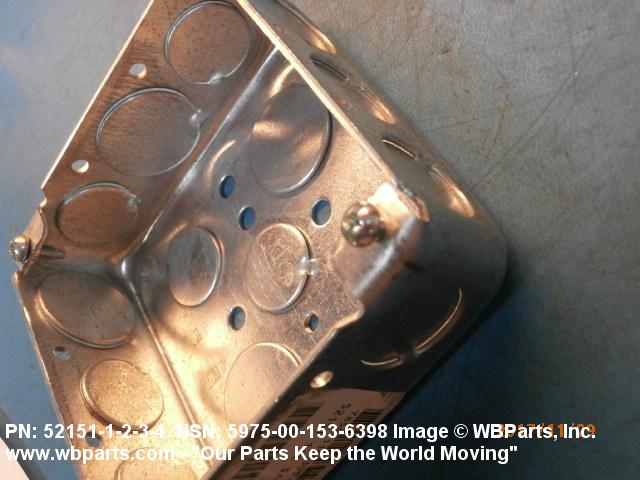

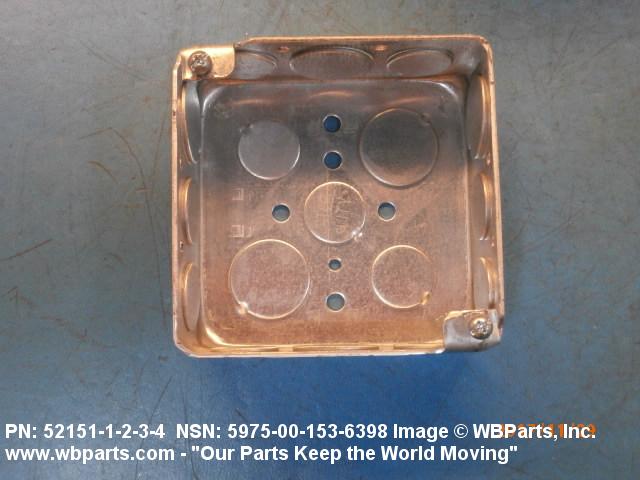

Drawings & Photos | NSN 5975-00-153-6398
Demand History | NSN 5975-00-153-6398
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AA59214 | 2020-10-281 | 2 | United States |
| 5975-00-153-6398 | 2017-11-321 | 7 | us |
| 5975-00-153-6398 | 2017-10-304 | 3 | us |
| 5975-00-153-6398 | 2017-09-270 | 3 | us |
| 192 | 2014-01-09 | 3 | us |
| 5975-00-153-6398 | 2013-10-281 | 10 | SA |
| 2410 | 2013-01-11 | 5 | |
| AA59214 | 2010-07-203 | 3 | US |
| 5975-00-153-6398 | 2009-11-323 | 11111 | DIBBS |
| 5975-00-153-6398 | 2009-10-286 | 4376 | DIBBS |
Cross Reference | NSN 5975-00-153-6398
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1180703 | 12204 | DAIMLER CHRYSLER |
| 1180703 | 70219 | CHRYSLER CORP DAYTON PLANT 1 |
| 192 | 01074 | ALLSTEEL INC. |
| 192 | 28488 | RACO A DIVISION OF HUBBELL INCORPORATEDDELAWARE |
| 2410 | 76655 | PORTER H K CO INC ELECTRICAL DIV AMBRIDGE WORKS |
| 4SSP | 03743 | EGS ELECTRICAL GROUP APPLETON DIV |
| 4SSPECIAL | 03743 | EGS ELECTRICAL GROUP APPLETON DIV |
| 4SSPL | 90759 | NI INDUSTRIES INC BOWERS MFG CO DIV |
| 52151 SPL | 28488 | RACO A DIVISION OF HUBBELL INCORPORATEDDELAWARE |
| 52151-1-2-3-4 | 56501 | THOMAS & BETTS CORPORATION |
| A-A-59214 | 58536 | FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES |
| AA59214-2A4 | 58536 | FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES |
| FEDSTD128 | 06542 | FEDERAL STANDARDS PROMULGATED BY GENERAL SERVICES |
| SP52151S | 24446 | GENERAL ELECTRIC CO |
| W-J-800 | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5975-00-153-6398
Technical Data | NSN 5975-00-153-6398
| Characteristic | Specifications |
|---|---|

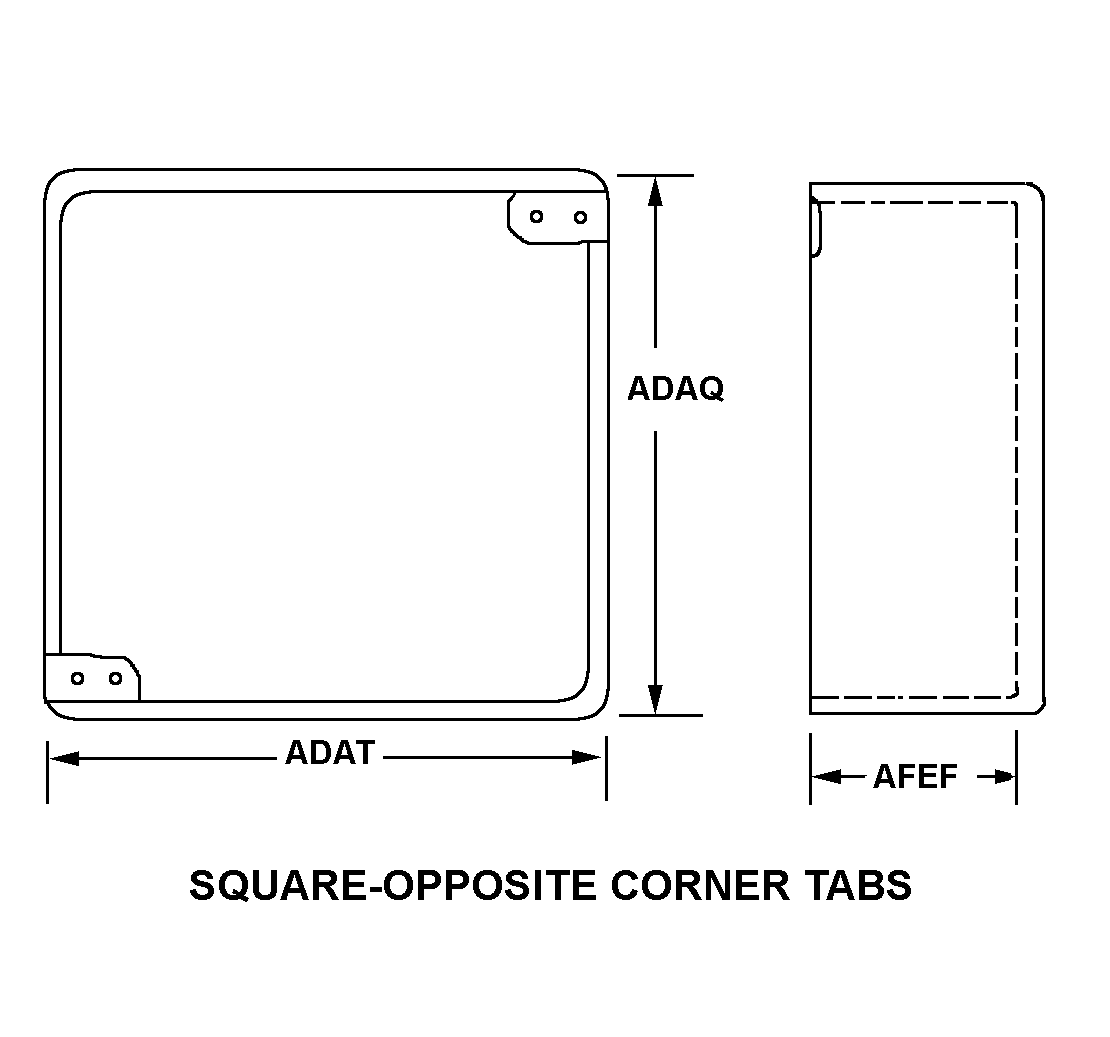

| STYLE DESIGNATOR | C3 SQUARE-OPPOSITE CORNER TABS |
| BODY LENGTH | 4.000 INCHES NOMINAL |
| BODY WIDTH | 4.000 INCHES NOMINAL |
| INSIDE DEPTH | 1.500 INCHES NOMINAL |
| ENTRANCE QUANTITY | 17 |
| COVER MOUNTING HOLE QUANTITY | 2 |
| STANDARD WIRING DEVICE QUANTITY | 1 |
| MATERIAL | STEEL BODY |
| SURFACE TREATMENT | ZINC OR CADMIUM BODY |
| COVER ATTACHMENT METHOD | SCREW |
| NONDEFINITIVE SPEC/STD DATA | D SIZE AND 10 STYLE AND II TYPE |
| III SUPPLEMENTARY FEATURES | END ITEM MINUTEMAN MISSILE LGM-30 |
| MANUFACTURERS CODE | 58536 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | A-A-59214 |
| MANUFACTURERS CODE | 58536 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | A-A-59214-2D10 |
Restrictions/Controls & Freight Information | NSN 5975-00-153-6398
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061400 | CONDENSERS/PARTS NOI/CAPACITORS |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5975-00-153-6398
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9N | Navy-owned stocks of defense electronic material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9E | Defense Supply Center Columbus Columbus, OH 43218 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
