NSN 5975-00-100-9829 2FSCLTG, 00-100-9829, 001009829
Product Details | CONDUIT OUTLET COVER
5975-00-100-9829 An item of any material, with or without threads, designed to mate with a CONDUIT OUTLET or a SEALING FITTING, ELECTRICAL CONDUIT. It may be designed as a removable side plate cover with or without hubs. It may have provisions for draining or venting. It may be designed for the insertion and/or mounting of electrical devices, such as switches, receptacle connectors, and indicator light lenses. It may include mechanisms for the external operation of switches but does not include the wiring devices. For items designed to mount directly on a bracket or an electrical current carrying wiring device, see PLATE, WALL, ELECTRICAL. See also COVER, JUNCTION BOX.
Part Alternates: 2FSCLTG, 5975-00-100-9829, 00-100-9829, 5975001009829, 001009829
Electrical and Electronic Equipment Components | Electrical Hardware and Supplies
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 29 MAY 1968 | 00-100-9829 | 19945 ( COVER, CONDUIT OUTLET ) |
Drawings & Photos | NSN 5975-00-100-9829
Cross Reference | NSN 5975-00-100-9829
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2FSCLTG | 75282 | KILLARK ELECTRIC MFG CO |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5975-00-100-9829
Technical Data | NSN 5975-00-100-9829
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | AND RECTANGULAR/SQUARE |
| OVERALL LENGTH | 4.625 INCHES NOMINAL |
| OVERALL WIDTH | 4.562 INCHES NOMINAL |
| TRADE DESIGNATION | FS SERIES |
| MATERIAL | ALUMINUM OVERALL |
| COVER MOUNTING METHOD | THREADED FASTENER |
| COVER MOUNTING HOLE QUANTITY | 4 |
| COVER MOUNTING HOLE ARRANGEMENT STYLE | F2 DIAGONAL |
| COVER MOUNTING SURFACE TYPE | FLAT |
| COVER MOUNTING GASKET TYPE | OPEN CENTER |

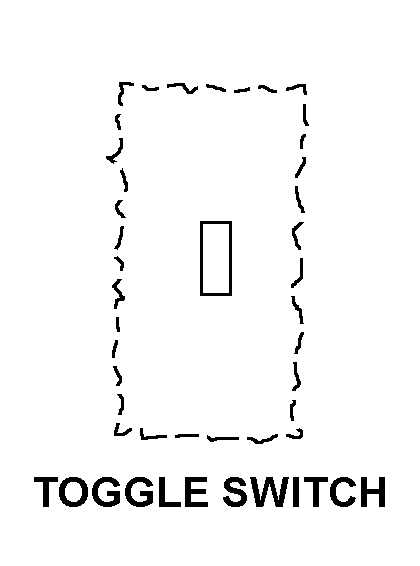

| FUNCTIONAL COVER STYLE | E3 TOGGLE SWITCH AND E7 ROUND FLUSH RECEPTACLE |
| HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION | NOT RATED |
| FURNISHED ITEMS | COVER MOUNTING SCREW |
| SPECIAL FEATURES | TOGGLE SWITCH W/ROUND FLUSH RECEPTACLE |
Restrictions/Controls & Freight Information | NSN 5975-00-100-9829
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
