NSN 5970-01-598-3301 7249646, 01-598-3301, 015983301
Product Details | ANGLE BRACKET INSULATOR
5970-01-598-3301 An insulator formed into a dihedral angle (generally a right angle) designed to position, align or support an item(s) in relation to another.
Part Alternates: 7249646, 5970-01-598-3301, 01-598-3301, 5970015983301, 015983301
Electrical and Electronic Equipment Components | Electrical Insulators and Insulating Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 21 JUL 2011 | 01-598-3301 | 19191 ( INSULATOR, ANGLE BRACKET ) |
Drawings & Photos | NSN 5970-01-598-3301
Cross Reference | NSN 5970-01-598-3301
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 7249646 | 53711 | NAVAL SEA SYSTEMS COMMAND |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5970-01-598-3301
Technical Data | NSN 5970-01-598-3301
| Characteristic | Specifications |
|---|---|
| FIRST LEG LENGTH | 6.160 INCHES NOMINAL |

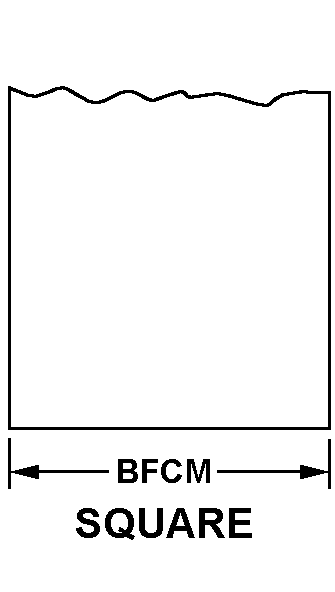

| LEG STYLE DESIGNATOR | 2 SQUARE |
| ANGLE | 40.0 DEGREES |
| MATERIAL | ALUMINUM |
| LEG WIDTH | 2.800 INCHES NOMINAL |
| SECOND LEG LENGTH | 5.162 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5970-01-598-3301
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
