NSN 5970-01-553-5100 1564451, 156445-1, 01-553-5100
Product Details | SPACER INSULATOR
5970-01-553-5100 An insulator having flat surfaces, with or without holes, whose thickness exceeds 25 percent of its length or width, whichever is smaller, and whose shape is other than round. It is used to support and/or separate electrical conductors and components. Excludes INSULATOR (1), STANDOFF; INSULATOR (1), PLATE; and INSULATOR (1), SPREADER.
Part Alternates: 1564451, 156445-1, 5970-01-553-5100, 01-553-5100, 5970015535100, 015535100
Electrical and Electronic Equipment Components | Electrical Insulators and Insulating Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 18 JUL 2007 | 01-553-5100 | 36783 ( INSULATOR, SPACER ) |
Drawings & Photos | NSN 5970-01-553-5100
Demand History | NSN 5970-01-553-5100
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5970-01-553-5100 | 2016-02-53 | 42 | DIBBS |
Cross Reference | NSN 5970-01-553-5100
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 156445-1 | 94271 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5970-01-553-5100
Technical Data | NSN 5970-01-553-5100
| Characteristic | Specifications |
|---|---|

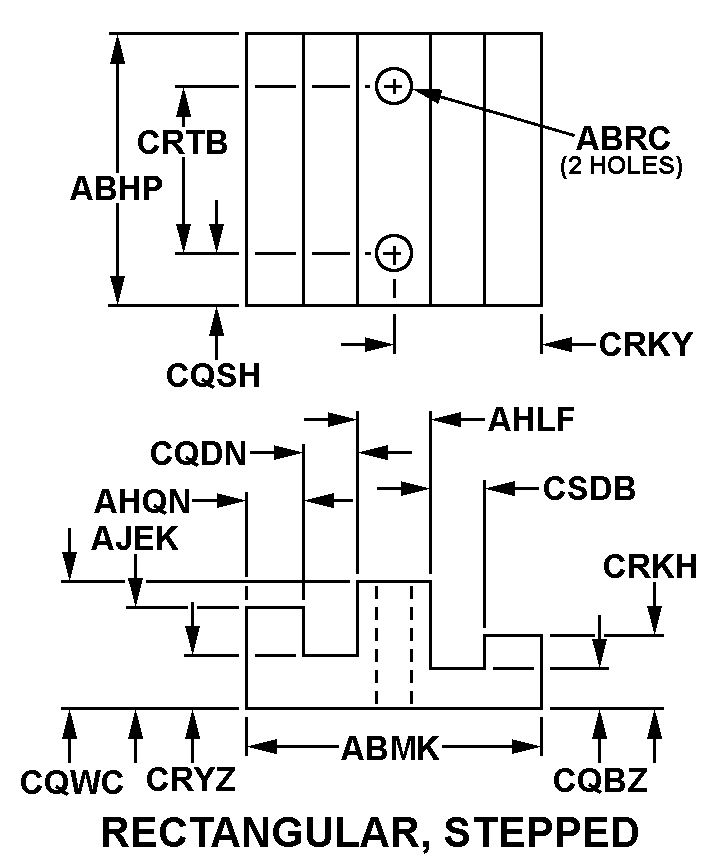

| STYLE DESIGNATOR | K90 RECTANGULAR, STEPPED |
| OVERALL LENGTH | 1.500 INCHES NOMINAL |
| OVERALL WIDTH | 0.969 INCHES NOMINAL |
| SECOND STEP HEIGHT | 0.625 INCHES NOMINAL |
| MATERIAL AND LOCATION | OVERALL GLASS CLOTH, EPOXY LAMINATED |
| IDENTIFICATION CODE COLOR | NATURAL |
| SPECIAL FEATURES | REF TO DRAWING FOR ADDITION DETAILS; MATL IS PLASTIC SHEET LAMINATED PER MIL-I-24768/2,TYPE GEE,EPOXY RESIN,GLASS-CLOTH,M24678/2-S-10 (0.625 THK) |
| III END ITEM IDENTIFICATION | NUC EQUIP |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | BLOCK,ELECTRICAL INSULATING |
Restrictions/Controls & Freight Information | NSN 5970-01-553-5100
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 103300 | INSULATING MATERIAL NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | HX | Navy ICP Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5970-01-553-5100
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
