NSN 5970-01-477-0496 222K132-25/86-0, 222K13225860, 01-477-0496
Product Details | SPECIAL PURPOSE ELECTRICAL INSULATION SLEEVING
5970-01-477-0496 A rigid or flexible tubing having other than uniform fabricated shapes or forms. It is specifically designed to prevent any undesirable flow of current between conductors or between conductors and other objects. Includes shrinkable type items. Excludes items not having rated electrical characteristics. Also excludes BUSHING, SLEEVE; CABLE NIPPLE, ELECTRICAL; and INSULATION SLEEVING, ELECTRICAL.
Part Alternates: 222K132-25/86-0, 222K13225860, 5970-01-477-0496, 01-477-0496, 5970014770496, 014770496
Electrical and Electronic Equipment Components | Electrical Insulators and Insulating Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 28 JUL 2000 | 01-477-0496 | 61626 ( INSULATION SLEEVING, ELECTRICAL, SPECIAL PURPOSE ) |

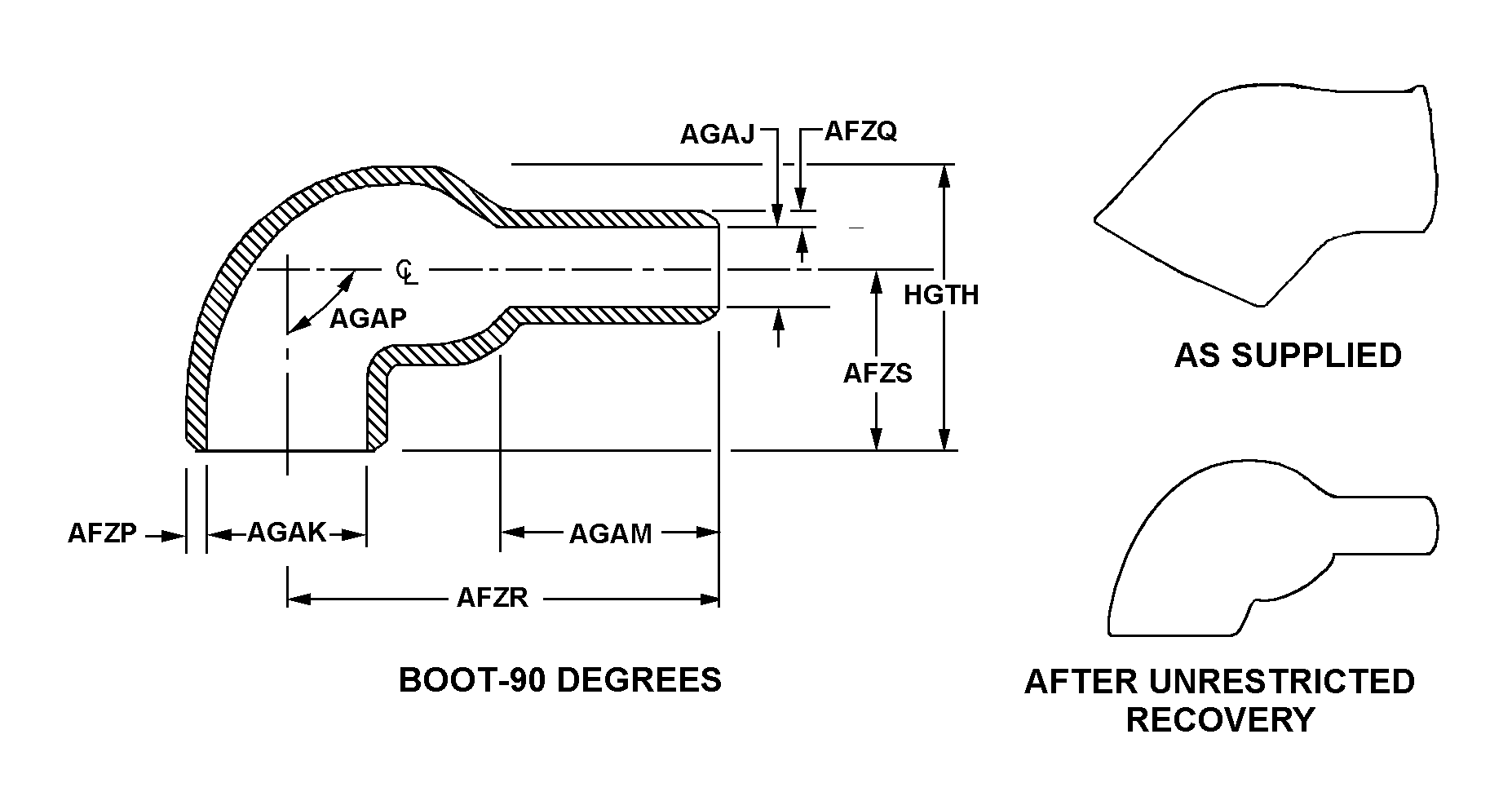

Drawings & Photos | NSN 5970-01-477-0496
Cross Reference | NSN 5970-01-477-0496
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 222K132-25/86-0 | 06090 | TYCO ELECTRONICS CORPORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5970-01-477-0496
Technical Data | NSN 5970-01-477-0496
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | B3 BOOT-90 DEGREES |
| LARGE END WALL THICKNESS OF MAIN BODY | 0.060 INCHES NOMINAL AFTER UNRESTRICTED RECOVERY |
| SMALL END WALL THICKNESS OF MAIN BODY | 0.024 INCHES MINIMUM AFTER UNRESTRICTED RECOVERY |
| DISTANCE FROM INTERSECTING CENTERLINES TO EDGE OF SMALL END | 1.250 INCHES NOMINAL AFTER UNRESTRICTED RECOVERY |
| DISTANCE FROM CENTERLINE OF SMALL END TO EDGE OF LARGE END | 0.790 INCHES NOMINAL AFTER UNRESTRICTED RECOVERY |
| MAIN BODY SMALL END INSIDE DIAMETER | 0.230 INCHES MAXIMUM AFTER UNRESTRICTED RECOVERY |
| MAIN BODY LARGE END INSIDE DIAMETER | 0.560 INCHES MAXIMUM AFTER UNRESTRICTED RECOVERY |
| DISTANCE FROM TOP OF SHOULDER TO SMALL END OF MAIN BODY | 0.790 INCHES NOMINAL AFTER UNRESTRICTED RECOVERY |
| HEIGHT | 1.060 INCHES NOMINAL AFTER UNRESTRICTED RECOVERY |
| ANGLE BETWEEN LARGE END AND SMALL END CENTERLINES IN DEG | 90.0 NOMINAL AFTER UNRESTRICTED RECOVERY |
| MATERIAL | RUBBER |
| COLOR | BLACK |
| FLEXIBILITY | SEMIRIGID |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
Restrictions/Controls & Freight Information | NSN 5970-01-477-0496
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
