NSN 5970-01-383-4464 157C067H01, 01-383-4464, 013834464
Product Details | ANGLE BRACKET INSULATOR
5970-01-383-4464 An insulator formed into a dihedral angle (generally a right angle) designed to position, align or support an item(s) in relation to another.
Part Alternates: 157C067H01, 5970-01-383-4464, 01-383-4464, 5970013834464, 013834464
Electrical and Electronic Equipment Components | Electrical Insulators and Insulating Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 24 NOV 1993 | 01-383-4464 | 19191 ( INSULATOR, ANGLE BRACKET ) |
Drawings & Photos | NSN 5970-01-383-4464
Cross Reference | NSN 5970-01-383-4464
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 157C067H01 | 97942 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN SYSTEMS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5970-01-383-4464
Related Products | NSN 5970-01-383-4464
Technical Data | NSN 5970-01-383-4464
| Characteristic | Specifications |
|---|---|
| FIRST LEG LENGTH | 7.250 INCHES NOMINAL |
| SECOND LEG LENGTH | 1.625 INCHES NOMINAL |
| FIRST LEG THICKNESS | 0.120 INCHES NOMINAL |
| SECOND LEG THICKNESS | 0.120 INCHES NOMINAL |
| LEG WIDTH | 4.140 INCHES NOMINAL |

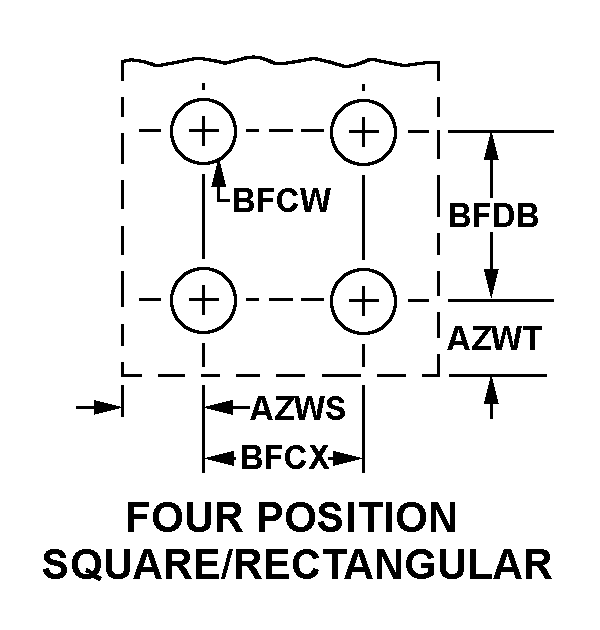

| HOLE ARRANGEMENT STYLE | 10 FOUR POSITION SQUARE/RECTANGULAR |
| HORIZONTAL DISTANCE FROM EDGE TO HOLE CENTER | 1.380 INCHES NOMINAL |
| VERTICAL DISTANCE FROM EDGE TO HOLE CENTER | 1.660 INCHES NOMINAL |
| HOLE DIAMETER/SIZE | 0.248 INCHES MINIMUM AND 0.255 INCHES MAXIMUM |
| HORIZONTAL DISTANCE BETWEEN HOLE CENTERS | 1.380 INCHES NOMINAL |
| VERTICAL DISTANCE BETWEEN HOLE CENTERS | 4.690 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5970-01-383-4464
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 024520 | BOAT ASSY R OUTFIT STEERING |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 810 | unknown |
| Originating Activity Code | CX | Defense Supply Center Richmond Richmond, VA 23297-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | N | Ship's parts. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
