NSN 5970-01-349-8562 13229E12132, 13229E1213-2, 202K153-3/42
Product Details | SPECIAL PURPOSE ELECTRICAL INSULATION SLEEVING
5970-01-349-8562 A rigid or flexible tubing having other than uniform fabricated shapes or forms. It is specifically designed to prevent any undesirable flow of current between conductors or between conductors and other objects. Includes shrinkable type items. Excludes items not having rated electrical characteristics. Also excludes BUSHING, SLEEVE; CABLE NIPPLE, ELECTRICAL; and INSULATION SLEEVING, ELECTRICAL.
Part Alternates: 13229E12132, 13229E1213-2, 202K153-3/42, 202K153342, 5970-01-349-8562, 01-349-8562, 5970013498562, 013498562
Electrical and Electronic Equipment Components | Electrical Insulators and Insulating Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 05 DEC 1991 | 01-349-8562 | 61626 ( INSULATION SLEEVING, ELECTRICAL, SPECIAL PURPOSE ) |
Drawings & Photos | NSN 5970-01-349-8562

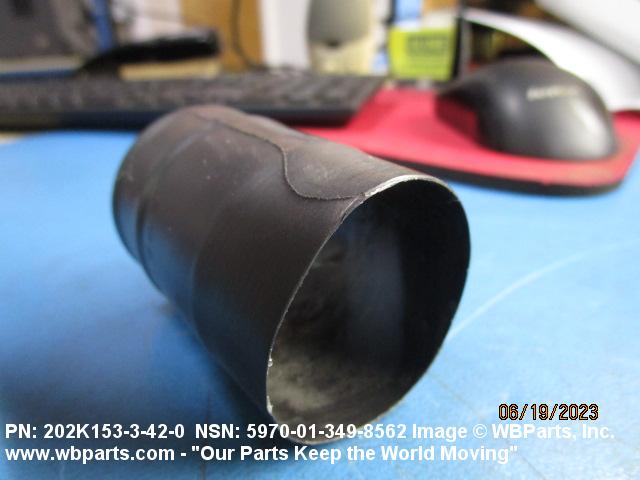

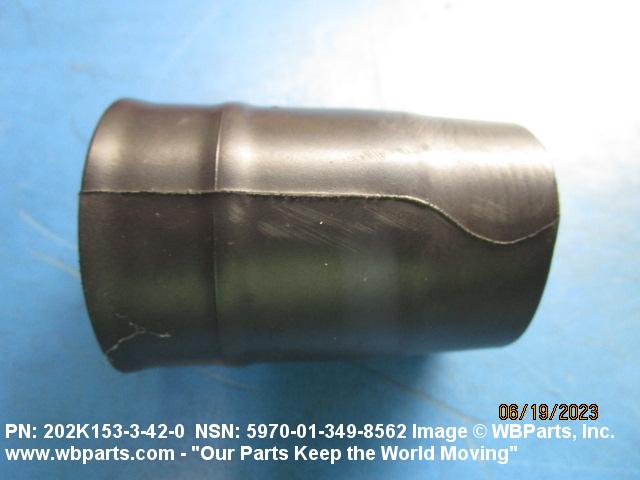

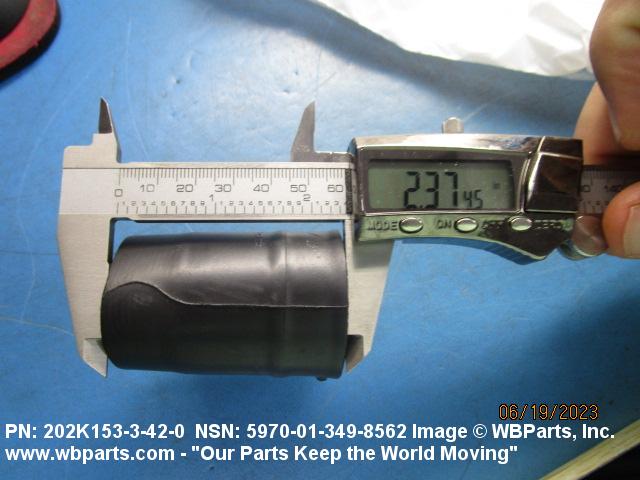

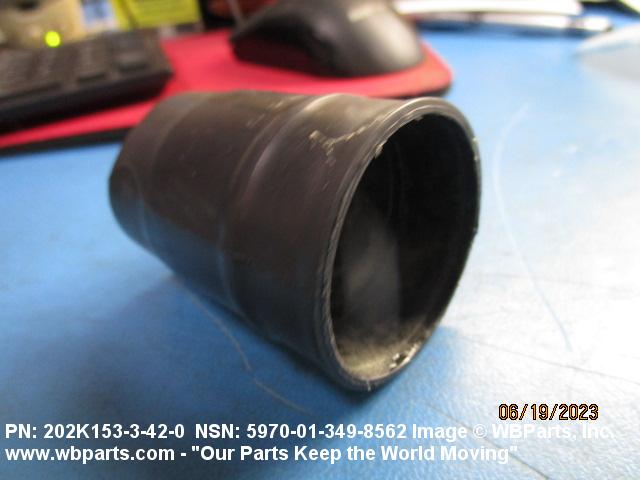

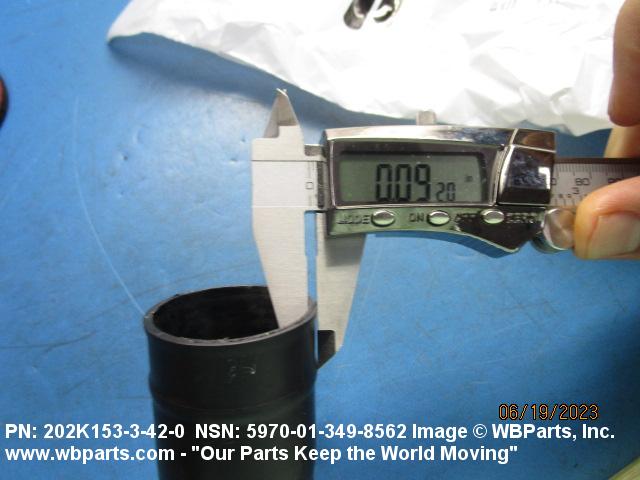

Demand History | NSN 5970-01-349-8562
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5970-01-349-8562 | 2023-06-153 | 4 | United States |
| 202K153-3/42 | 2019-02-51 | 1240 | DIBBS |
| 5970-01-349-8562 | 2017-02-38 | 257 | DIBBS |
| 5970-01-349-8562 | 2016-12-341 | 347 | DIBBS |
| 202K153342 | 2012-03-65 | 4 | United States |
| 5970-01-349-8562 | 2010-06-166 | 387 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5970-01-349-8562
Related Products | NSN 5970-01-349-8562
Technical Data | NSN 5970-01-349-8562
| Characteristic | Specifications |
|---|---|

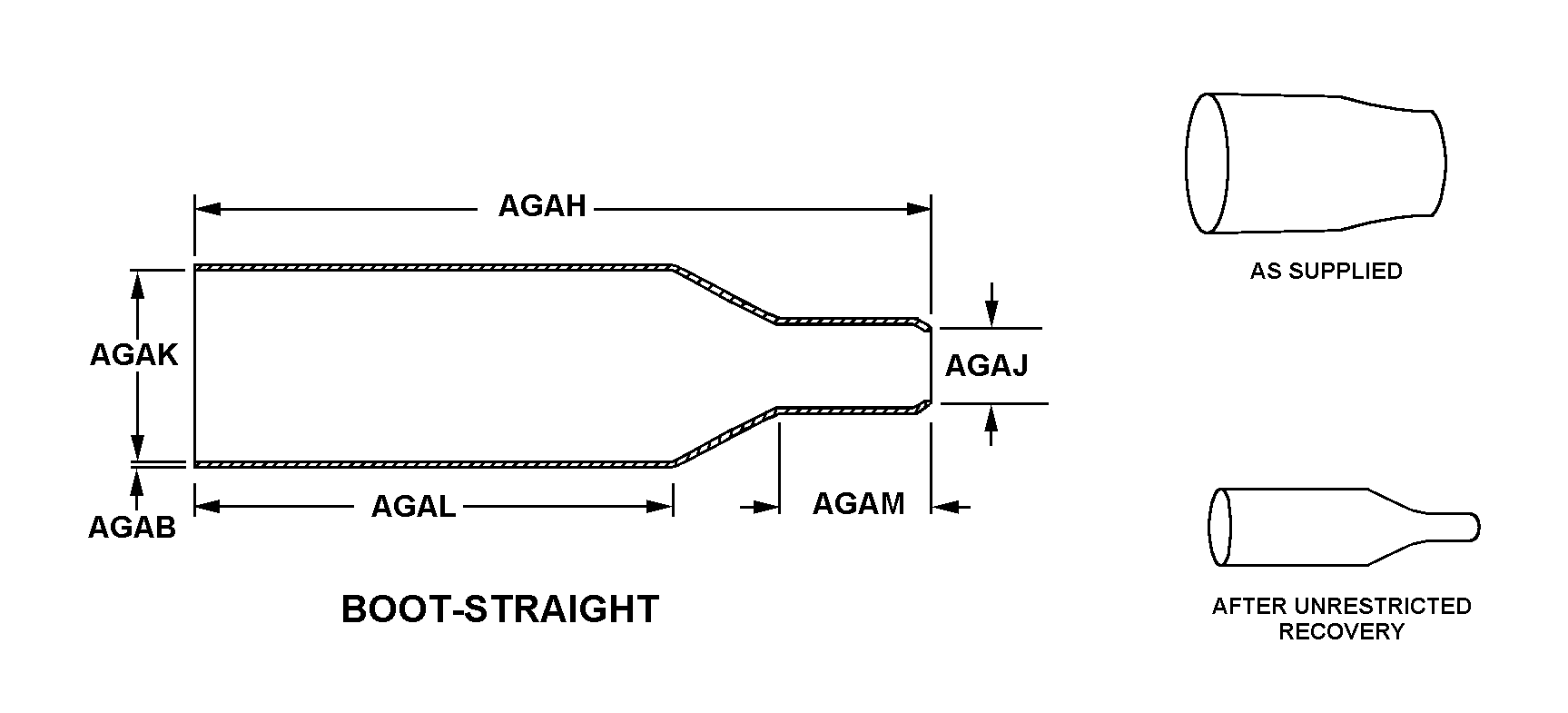

| STYLE DESIGNATOR | B1 BOOT-STRAIGHT |
| MAIN BODY WALL THICKNESS | 0.080 INCHES NOMINAL AFTER UNRESTRICTED RECOVERY |
| MAIN BODY OVERALL LENGTH | 3.150 INCHES NOMINAL AFTER UNRESTRICTED RECOVERY |
| MAIN BODY SMALL END INSIDE DIAMETER | 1.420 INCHES MINIMUM AS SUPPLIED 0.270 INCHES MAXIMUM AFTER UNRESTRICTED RECOVERY |
| MAIN BODY LARGE END INSIDE DIAMETER | 1.420 INCHES MINIMUM AS SUPPLIED 0.820 INCHES MAXIMUM AFTER UNRESTRICTED RECOVERY |
| DISTANCE FROM BOTTOM OF SHOULDER TO LARGE END OF MAIN BODY | 1.650 INCHES NOMINAL AFTER UNRESTRICTED RECOVERY |
| DISTANCE FROM TOP OF SHOULDER TO SMALL END OF MAIN BODY | 0.790 INCHES NOMINAL AFTER UNRESTRICTED RECOVERY |
| MATERIAL | PLASTIC, POLYOLEFIN, RT-301, RAYCHEM CORP |
| COLOR | BLACK |
| FLEXIBILITY | SEMIRIGID |
| TEMP RATING | -55.0 DEG CELSIUS AND 135.0 DEG CELSIUS |
| MINIMUM TENSILE STRENGTH | 2000 POUNDS PER SQUARE INCH |
| DIELECTRIC MATERIAL VOLTAGE RATING PER UNIT THICKNESS | 300.0 VOLTS PER MIL /0.001 INCH/ |
| ENVIRONMENTAL PROTECTION | CORROSION RESISTANT AND FLAME RESISTANT AND MILDEW RESISTANT AND SOLVENT RESISTANT AND WATER RESISTANT |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
| SPECIAL FEATURES | TAB LOCATED BETWEEN RXTERIOR SMALL DIA AND LARGE DIA. WITH HOLE 0.080 IN. DIA; INSIDE DIAMETER OF LARGE END HAS LIPS; WALL THICKNESS ON SMALL END TAPERS TO 0.040 IN.;INSIDE COATED WITH ADHESIVE |
