NSN 5970-01-307-5103 E876000113, E87600-01-13, EMF-FR-1/8 BLACK
Product Details | ELECTRICAL TEXTILE SLEEVING

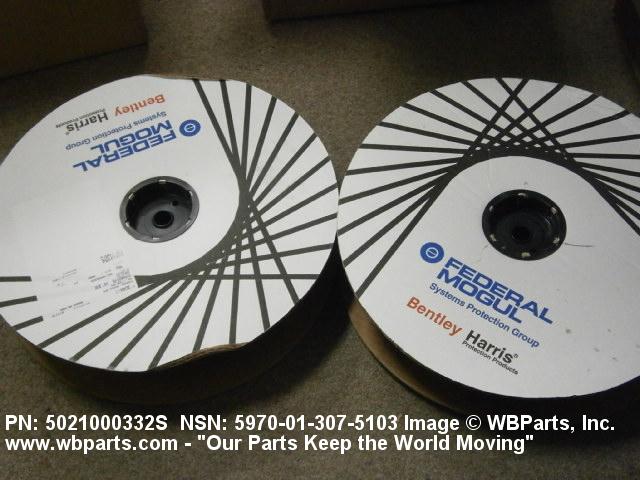

5970-01-307-5103 A treated or untreated flexible tubing of natural or synthetic fibers such as cotton, silk, rayon, glass, or nylon, specifically designed to inclose a wire or cable but does not have a definite rated electrical characteristic. Includes items in bulk or in definite fabricated lengths. For items having definite rated electrical characteristics, see INSULATION SLEEVING, ELECTRICAL.
Part Alternates: E876000113, E87600-01-13, EMF-FR-1/8 BLACK, EMFFR18BLACK, EXPANDO FR 1/8 IN BLACK, EXPANDO1/8INBLACK, EXPANDO18INBLACK, EXPANDOFR18INBLACK, 1/8 IN BLK/WHT TRACER EXPANDO FR, 1/8 TYPE FR BLK, 18INBLKWHTTRACEREXPANDOFR, 18TYPEFRBLK, 5021000332S, 5970-01-307-5103, 01-307-5103, 5970013075103, 013075103, 674700352
Electrical and Electronic Equipment Components | Electrical Insulators and Insulating Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 13 SEP 1989 | 01-307-5103 | 19932 ( SLEEVING, TEXTILE, ELECTRICAL ) |
Drawings & Photos | NSN 5970-01-307-5103
Demand History | NSN 5970-01-307-5103
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5970-01-307-5103 | 2023-08-222 | 1 | United States |
| 5021000332S | 2023-08-218 | 7143 | DIBBS |
| EMF-FR-1/8 BLACK | 2023-08-218 | 7143 | DIBBS |
| 5970-01-307-5103 | 2011-08-242 | 80 | US |
| 5021000332S | 2011-06-175 | 20 | United States |
| 5970-01-307-5103 | 2010-08-218 | 4000 | United States |
Cross Reference | NSN 5970-01-307-5103
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1/8 IN BLK/WHT TRACER EXPANDO FR | 81851 | FEDERAL-MOGUL CORPORATION DBA FEDERAL-MOGUL DIV SYSTEMS |
| 1/8 TYPE FR BLK | 00768 | WESTERN FILAMENT, INC. |
| 5021000332S | 81851 | FEDERAL-MOGUL CORPORATION DBA FEDERAL-MOGUL DIV SYSTEMS |
| 674700352 | 81851 | FEDERAL-MOGUL CORPORATION DBA FEDERAL-MOGUL DIV SYSTEMS |
| E87600-01-13 | 00768 | WESTERN FILAMENT, INC. |
| EMF-FR-1/8 BLACK | 96904 | HIGH VOLTAGE ENGINEERING CORP NATVAR CO DIV |
| EXPANDO FR 1/8 IN BLACK | 81851 | FEDERAL-MOGUL CORPORATION DBA FEDERAL-MOGUL DIV SYSTEMS |
| EXPANDO1/8INBLACK | 81851 | FEDERAL-MOGUL CORPORATION DBA FEDERAL-MOGUL DIV SYSTEMS |
