NSN 5970-01-295-8860 234A61130342, 234A611-3-03-42, 01-295-8860
Product Details | SPECIAL PURPOSE ELECTRICAL INSULATION SLEEVING
5970-01-295-8860 A rigid or flexible tubing having other than uniform fabricated shapes or forms. It is specifically designed to prevent any undesirable flow of current between conductors or between conductors and other objects. Includes shrinkable type items. Excludes items not having rated electrical characteristics. Also excludes BUSHING, SLEEVE; CABLE NIPPLE, ELECTRICAL; and INSULATION SLEEVING, ELECTRICAL.
Part Alternates: 234A61130342, 234A611-3-03-42, 5970-01-295-8860, 01-295-8860, 5970012958860, 012958860
Electrical and Electronic Equipment Components | Electrical Insulators and Insulating Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 13 MAR 1989 | 01-295-8860 | 61626 ( INSULATION SLEEVING, ELECTRICAL, SPECIAL PURPOSE ) |
Drawings & Photos | NSN 5970-01-295-8860
Cross Reference | NSN 5970-01-295-8860
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 234A611-3-03-42 | 06090 | TYCO ELECTRONICS CORPORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5970-01-295-8860
Technical Data | NSN 5970-01-295-8860
| Characteristic | Specifications |
|---|---|

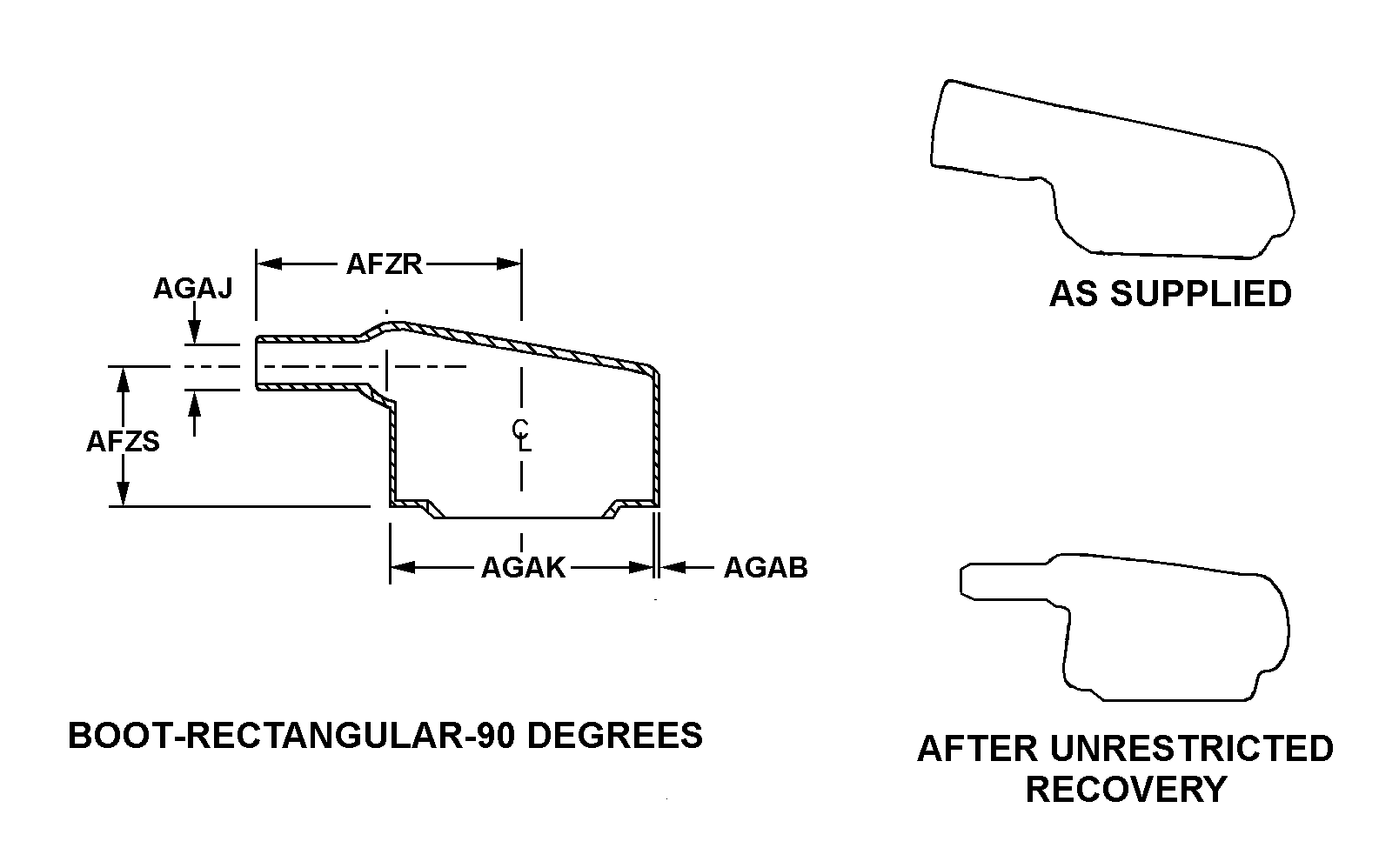

| STYLE DESIGNATOR | B4 BOOT-RECTANGULAR-90 DEGREES |
| DISTANCE FROM INTERSECTING CENTERLINES TO EDGE OF SMALL END | 1.020 INCHES NOMINAL AFTER UNRESTRICTED RECOVERY |
| DISTANCE FROM CENTERLINE OF SMALL END TO EDGE OF LARGE END | 0.600 INCHES NOMINAL AFTER UNRESTRICTED RECOVERY |
| MAIN BODY WALL THICKNESS | 0.040 INCHES NOMINAL AFTER UNRESTRICTED RECOVERY |
| MAIN BODY SMALL END INSIDE DIAMETER | 0.630 INCHES MINIMUM AS SUPPLIED 0.160 INCHES MAXIMUM AFTER UNRESTRICTED RECOVERY |
| MAIN BODY LARGE END INSIDE DIAMETER | 0.630 INCHES MINIMUM AS SUPPLIED 0.800 INCHES NOMINAL AFTER UNRESTRICTED RECOVERY |
| MATERIAL | PLASTIC, POLYOLEFIN, RT-301, RAYCHEM CORP |
| COLOR | BLACK |
| FLEXIBILITY | SEMIRIGID |
| TEMP RATING | -55.0 DEG CELSIUS |
| MINIMUM TENSILE STRENGTH | 1200 POUNDS PER SQUARE INCH |
| DIELECTRIC MATERIAL VOLTAGE RATING PER UNIT THICKNESS | 200.0 VOLTS PER MIL /0.001 INCH/ |
| ENVIRONMENTAL PROTECTION | CORROSION RESISTANT AND FLAME RESISTANT AND MILDEW RESISTANT AND SOLVENT RESISTANT AND WATER RESISTANT |
| RELIABILITY INDICATOR | ESTABLISHED |
| SPECIAL FEATURES | ENTIRE INNER SURFACE COATED WITH THERMO ADHESIVE; SUBMINIATURE; END ENTRY; OVEREXPANDED |
| III UNPACKAGED UNIT WEIGHT | 0.005 POUNDS |
