NSN 5970-01-283-1168 106B4914P1, 01-283-1168, 012831168
Product Details | PLATE INSULATOR
5970-01-283-1168 An insulator having flat surfaces, with or without holes, whose thickness does not exceed 25 percent of its length or width, whichever is smaller, and whose shape is other than round. Excludes INSULATOR (1), SPACER; INSULATOR (1), WASHER; MOUNTING PAD, ELECTRICAL-ELECTRONIC COMPONENT; PLATE, ELECTRICAL SHIELD; and TERMINAL BOARD.
Part Alternates: 106B4914P1, 5970-01-283-1168, 01-283-1168, 5970012831168, 012831168
Electrical and Electronic Equipment Components | Electrical Insulators and Insulating Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 29 JUL 1988 | 01-283-1168 | 18296 ( INSULATOR, PLATE ) |
Drawings & Photos | NSN 5970-01-283-1168
Cross Reference | NSN 5970-01-283-1168
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 106B4914P1 | 99971 | LOCKHEED MARTIN CORP NAVAL ELECTRONICS & SURVEILLANCE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5970-01-283-1168
Technical Data | NSN 5970-01-283-1168
| Characteristic | Specifications |
|---|---|

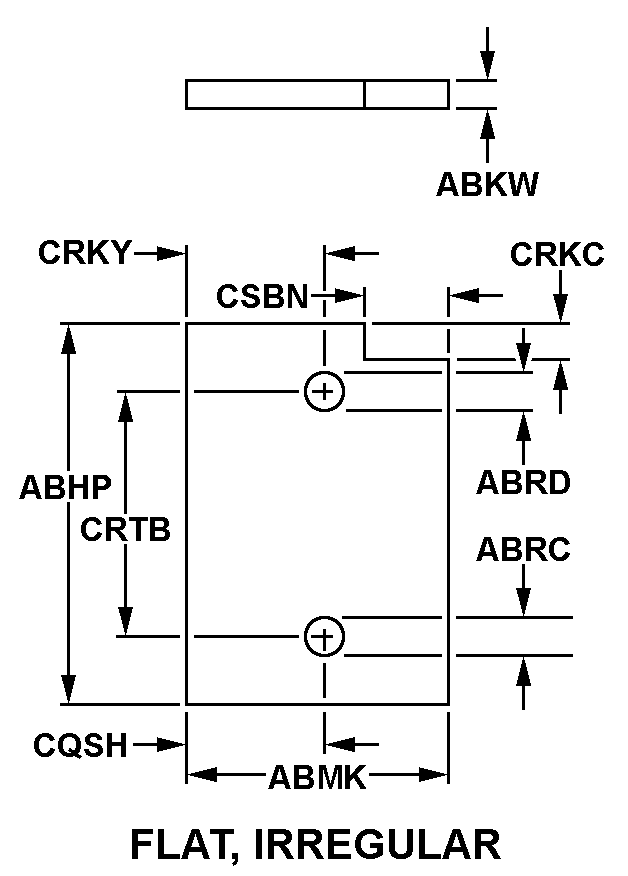

| STYLE DESIGNATOR | K45 FLAT, IRREGULAR |
| OVERALL LENGTH | 6.620 INCHES NOMINAL |
| OVERALL HEIGHT | 0.015 INCHES NOMINAL |
| OVERALL WIDTH | 0.800 INCHES NOMINAL |
| FIRST HOLE DIAMETER | 0.359 INCHES NOMINAL |
| SECOND HOLE DIAMETER | 0.359 INCHES NOMINAL |
| FIRST HOLE SPACING | 0.600 INCHES NOMINAL |
| CORNER CUT LENGTH | 2.250 INCHES NOMINAL |
| SECOND HOLE SPACING | 0.650 INCHES NOMINAL |
| THIRD HOLE SPACING | 5.000 INCHES NOMINAL |
| CORNER CUT WIDTH | 0.150 INCHES NOMINAL |
| MATERIAL AND LOCATION | OVERALL PLASTIC, EPOXY, MIL-P-18177, TYPE GEE |
Restrictions/Controls & Freight Information | NSN 5970-01-283-1168
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
