Product Details | BUSHING INSULATOR
5970-01-249-2211 An insulator designed to fit into and reduce the effective diameter of the hole(s). It may include mounting and/or conducting hardware. For flexible bushing-type insulators that are self-retaining and consist of two facing flanges separated by a neck, see GROMMET, NONMETALLIC. Also see SPACER, SLEEVE and BUSHING, SLEEVE. Excludes INSULATION SLEEVING, ELECTRICAL.
Part Alternates: 3020009003, 302-0009-003, 6529172, 652917-2, 5970-01-249-2211, 01-249-2211, 5970012492211, 012492211
Electrical and Electronic Equipment Components | Electrical Insulators and Insulating Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 07 FEB 1987 | 01-249-2211 | 18301 ( INSULATOR, BUSHING ) |

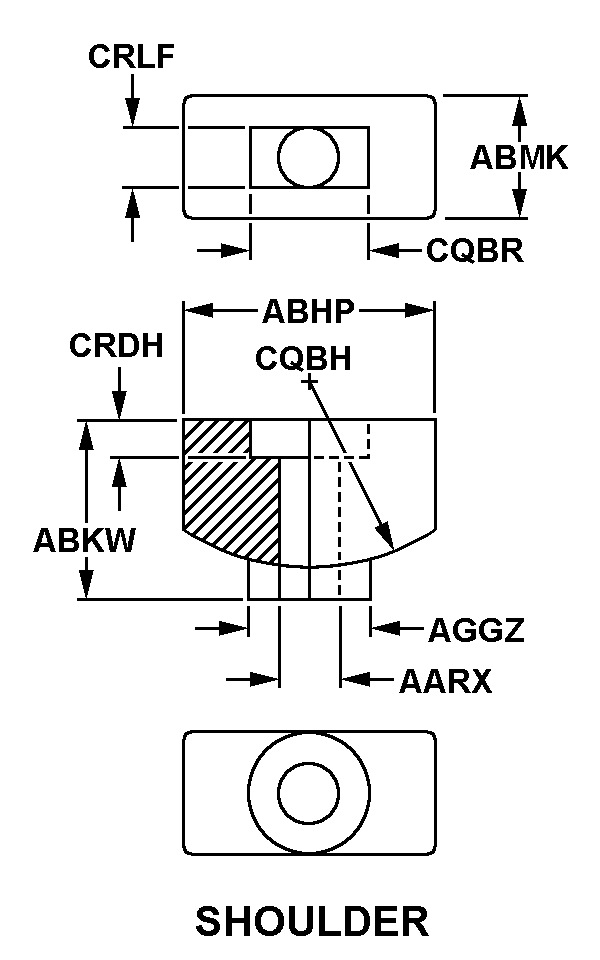

Drawings & Photos | NSN 5970-01-249-2211
