Product Details | BOWL INSULATOR

5970-01-155-6502 An insulator used for wire entering or feedthru purposes. May include mounting and/or conducting hardware. Includes replacement bowls for feedthru insulators. Characterized by one or more bowl or bell shaped insulator surfaces.

Part Alternates: R9166, R-9166, 9166, 5970-01-155-6502, 01-155-6502, 5970011556502, 011556502

Electrical and Electronic Equipment Components | Electrical Insulators and Insulating Materials

Supply Group (FSG) NSN Assign. NIIN
59 13 JUN 1983 01-155-6502

Drawings & Photos | NSN 5970-01-155-6502


Cross Reference | NSN 5970-01-155-6502

Part Number Cage Code Manufacturer
9166 75539 LAPP INSULATOR COMPANY LLC
R-9166 75539 LAPP INSULATOR COMPANY LLC

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5970-01-155-6502

Technical Data | NSN 5970-01-155-6502

Characteristic Specifications

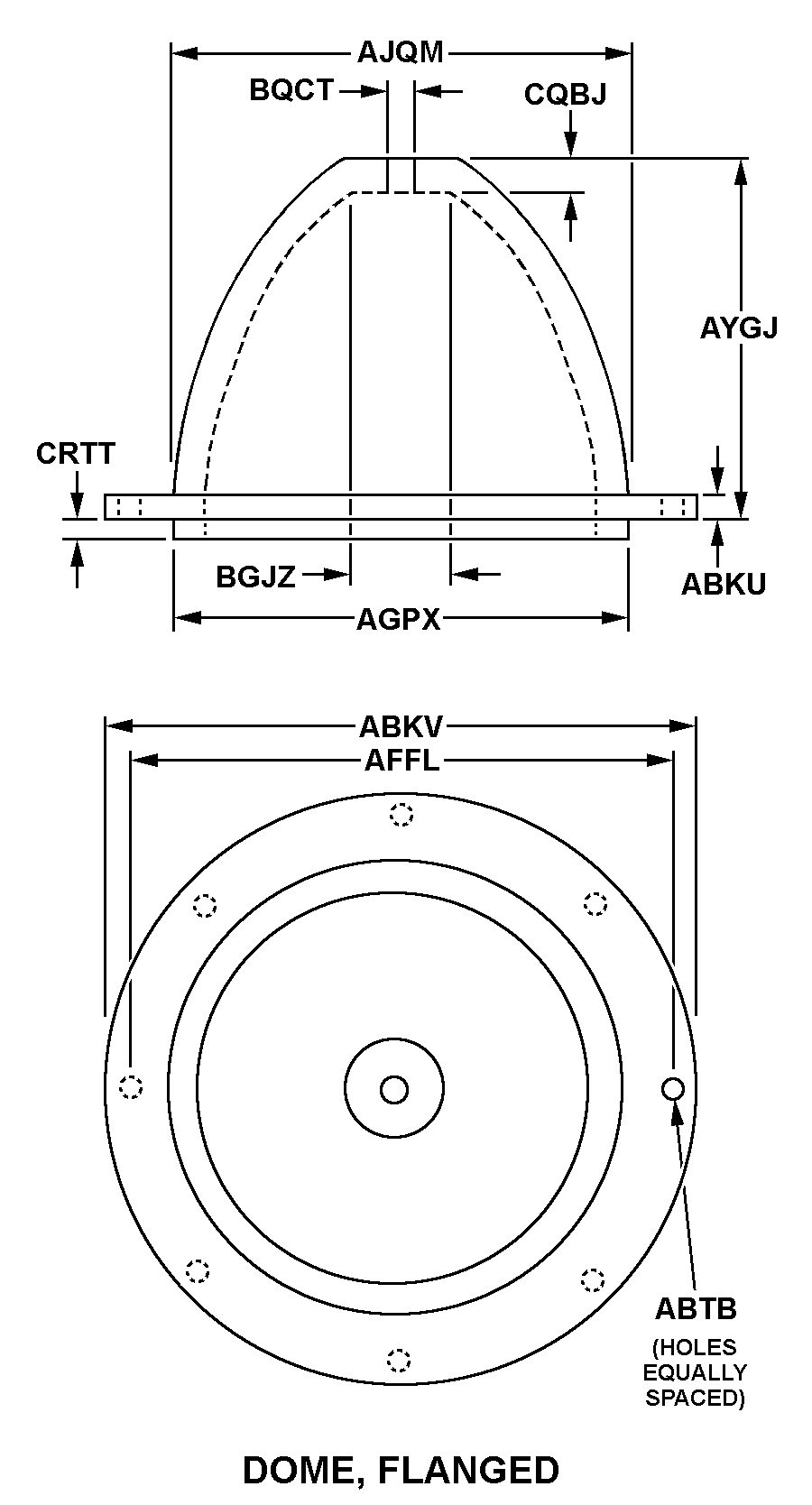

STYLE DESIGNATOR B9 DOME, FLANGED
HEIGHT ABOVE MOUNTING SURFACE 4.438 INCHES NOMINAL
CENTER STUD LENGTH 7.438 INCHES NOMINAL
MATERIAL AND LOCATION OVERALL PORCELAIN
MANUFACTURERS CODE 75539
DESIGN CONTROL REFERENCE 9166
