NSN 5970-01-149-4187 GS830DN1, 422A7164, 422A716-4
Product Details | SPECIAL PURPOSE ELECTRICAL INSULATION SLEEVING
5970-01-149-4187 A rigid or flexible tubing having other than uniform fabricated shapes or forms. It is specifically designed to prevent any undesirable flow of current between conductors or between conductors and other objects. Includes shrinkable type items. Excludes items not having rated electrical characteristics. Also excludes BUSHING, SLEEVE; CABLE NIPPLE, ELECTRICAL; and INSULATION SLEEVING, ELECTRICAL.
Part Alternates: GS830DN1, 422A7164, 422A716-4, 533H8276, 533H827-6, 5970-01-149-4187, 01-149-4187, 5970011494187, 011494187
Electrical and Electronic Equipment Components | Electrical Insulators and Insulating Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 20 MAR 1983 | 01-149-4187 | 61626 ( INSULATION SLEEVING, ELECTRICAL, SPECIAL PURPOSE ) |
Drawings & Photos | NSN 5970-01-149-4187
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5970-01-149-4187
Technical Data | NSN 5970-01-149-4187
| Characteristic | Specifications |
|---|---|

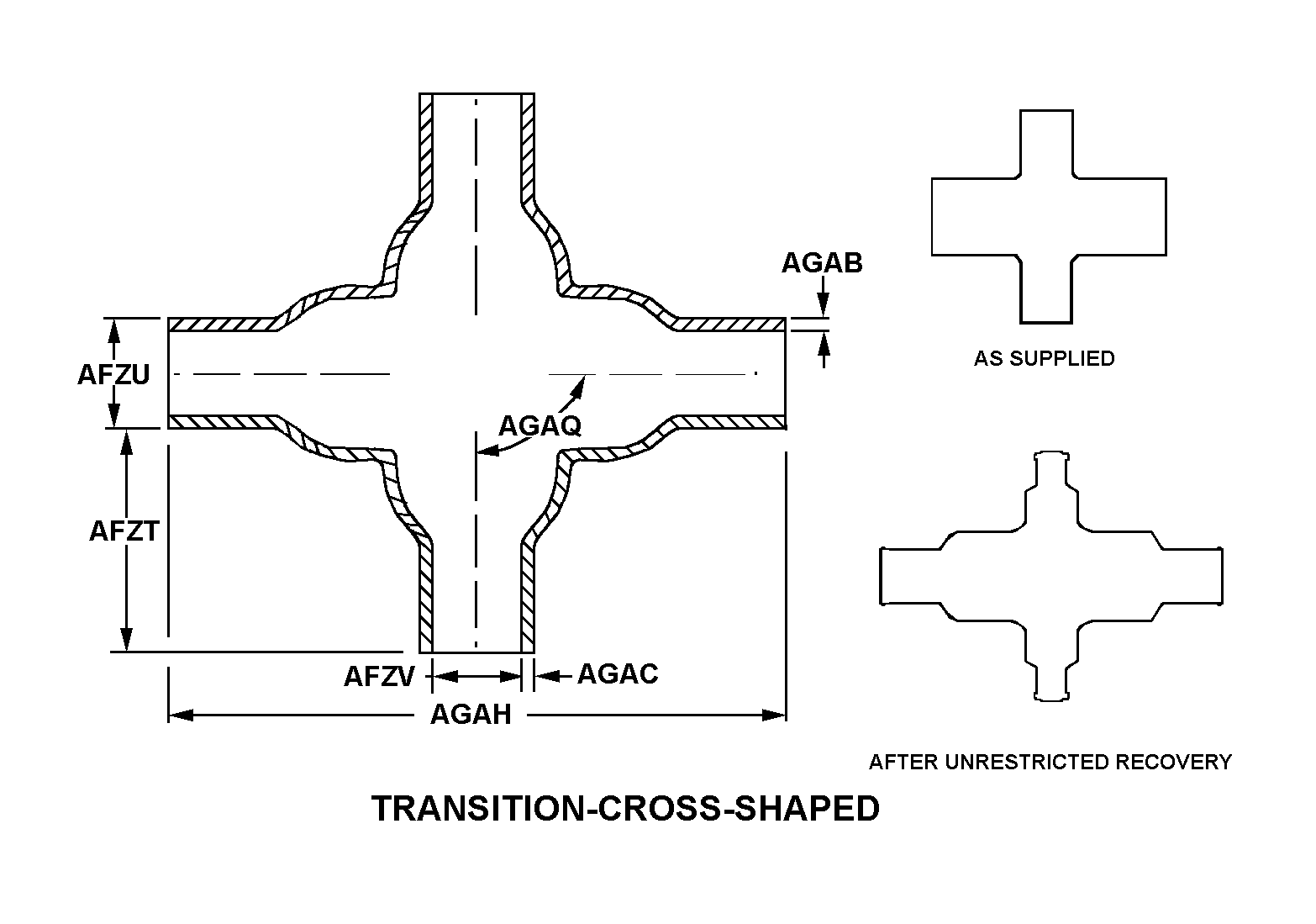

| STYLE DESIGNATOR | B12 TRANSITION-CROSS-SHAPED |
| DISTANCE FROM CENTERLINE OF MAIN BODY TO END OF FIRST BRANCH | ANY ACCEPTABLE AS SUPPLIED |
| MAIN BODY INSIDE DIAMETER | 0.520 INCHES MINIMUM AS SUPPLIED 0.240 INCHES MAXIMUM AFTER UNRESTRICTED RECOVERY |
| FIRST BRANCH INSIDE DIAMETER | 0.760 INCHES MINIMUM AS SUPPLIED 0.380 INCHES MAXIMUM AFTER UNRESTRICTED RECOVERY |
| MAIN BODY WALL THICKNESS | 0.040 INCHES NOMINAL AFTER UNRESTRICTED RECOVERY |
| FIRST BRANCH WALL THICKNESS | 0.040 INCHES NOMINAL AFTER UNRESTRICTED RECOVERY |
| MAIN BODY OVERALL LENGTH | 1.500 INCHES NOMINAL AFTER UNRESTRICTED RECOVERY |
| ANGLE BETWEEN MAIN BODY AND FIRST BRANCH CENTERLINES IN DEG | 90.0 NOMINAL AFTER UNRESTRICTED RECOVERY |
| MATERIAL | PLASTIC,POLYOLEFIN,RT-1304,RAYCHE M CORP OR PLASTIC,POLYOLEFIN,MPF-666,HIGH VOLTAGE ENGINEERING CORP |
| COLOR | BLACK |
| FLEXIBILITY | FLEXIBLE |
| TEMP RATING | -55.0 DEG CELSIUS AND 125.0 DEG CELSIUS |
| MINIMUM TENSILE STRENGTH | 1200 POUNDS PER SQUARE INCH |
| DIELECTRIC MATERIAL VOLTAGE RATING PER UNIT THICKNESS | 200.0 VOLTS PER MIL /0.001 INCH/ |
| ENVIRONMENTAL PROTECTION | CORROSION RESISTANT AND FLAME RESISTANT AND MILDEW RESISTANT AND SOLVENT RESISTANT AND WATER RESISTANT |
