NSN 5970-01-128-8950 7775671001, 777-5671-001, 01-128-8950
Product Details | STANDOFF INSULATOR
5970-01-128-8950 An insulator which is specifically designed to support a conductor or an item at a predetermined spacing from a mounting surface. It may include mounting and/or conducting hardware.
Part Alternates: 7775671001, 777-5671-001, 5970-01-128-8950, 01-128-8950, 5970011288950, 011288950
Electrical and Electronic Equipment Components | Electrical Insulators and Insulating Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 27 MAR 1982 | 01-128-8950 | 00225 ( INSULATOR, STANDOFF ) |
Drawings & Photos | NSN 5970-01-128-8950
Cross Reference | NSN 5970-01-128-8950
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 777-5671-001 | 13499 | ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5970-01-128-8950
Technical Data | NSN 5970-01-128-8950
| Characteristic | Specifications |
|---|---|

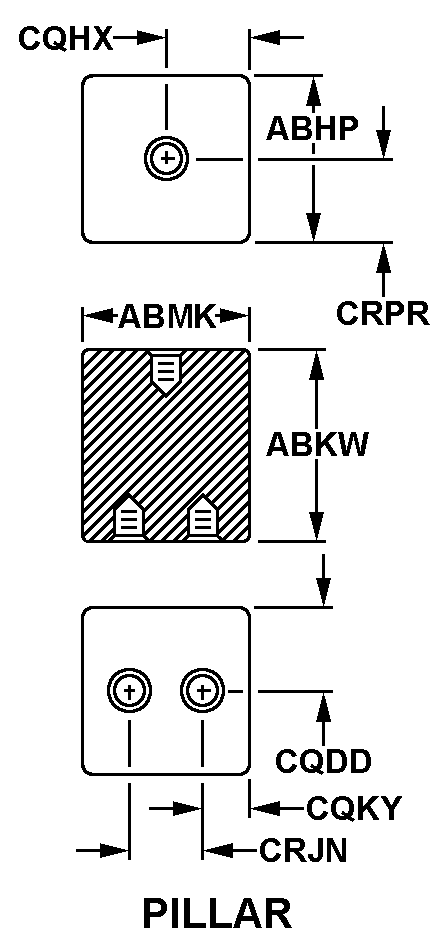

| STYLE DESIGNATOR | M6 PILLAR |
